Product introduction
Woodpecker brand UDS-J ultrasonic scaler is suitable for removing calculus in dentistry and is an important equipment for the prevention and treatment of dental diseases.
The features of this equipment are:
a) The automatic frequency tracking system is adopted to automatically search for the best working state, and the machine performance is stable
b) The working process is fully controlled by microcomputer, which is convenient and simple to operate and has high efficiency.
1.2 Model Specifications
UDS-J type
1.3 Machine configuration
For machine configuration, please refer to the packing list
1.4 Performance structure and composition

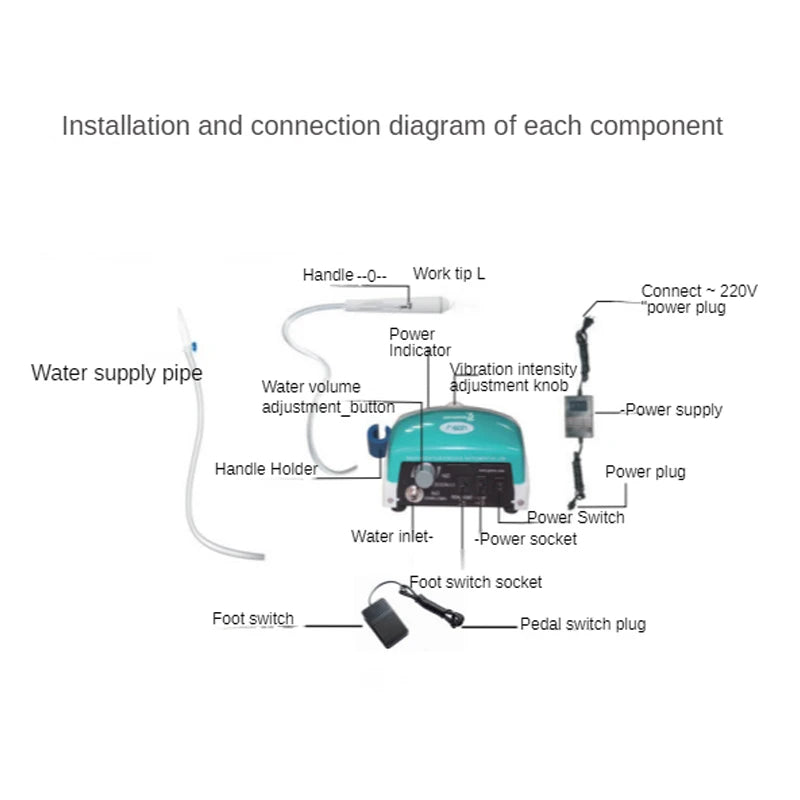

It consists of host, handle, working tip, foot switch and power adapter, etc.
1.5 Scope of application
Suitable for dental stone removal.
The main technical specifications
The features of this equipment are:
a) The automatic frequency tracking system is adopted to automatically search for the best working state, and the machine performance is stable
b) The working process is fully controlled by microcomputer, which is convenient and simple to operate and has high efficiency.
1.2 Model Specifications
UDS-J type
1.3 Machine configuration
For machine configuration, please refer to the packing list
1.4 Performance structure and composition
It consists of host, handle, working tip, foot switch and power adapter, etc.
1.5 Scope of application
Suitable for dental stone removal.
The main technical specifications
Power supply input: 220-240V~ 50Hz/60Hz 150mA
Main unit input: 24V~ 50Hz/60Hz l.3A
Output power: 3W to 20W
Output tip vibration frequency: 30kHz±3kHz
Output half-excursion force:<2N
Output primary tip vibration excursion: ≤100μm
Main unit fuse: T1.6AL 250V
Power supply fuse: T0.5AL 250V
Water pressure: 0.01MPa to 0.5MPa
Main unit weight: 0.8 kg
Power supply weight: 1 kg

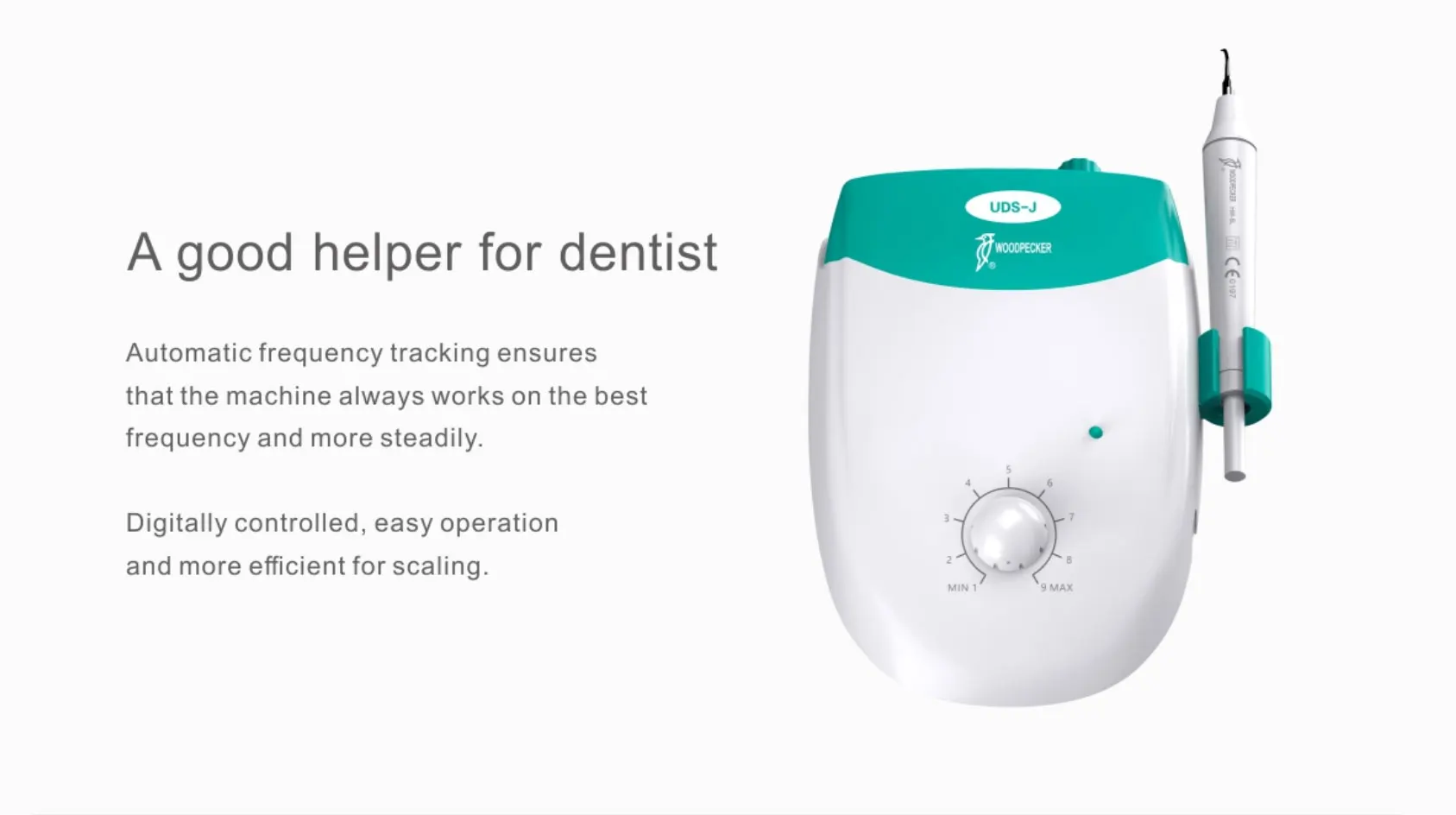

A good helper for dentist
Automatic frequency tracking ensures
that the machine always works on the best
frequency and more steadily .
Digitally controlled , easy operation and more efficient for scaling
Automatic frequency tracking ensures
that the machine always works on the best
frequency and more steadily .
Digitally controlled , easy operation and more efficient for scaling

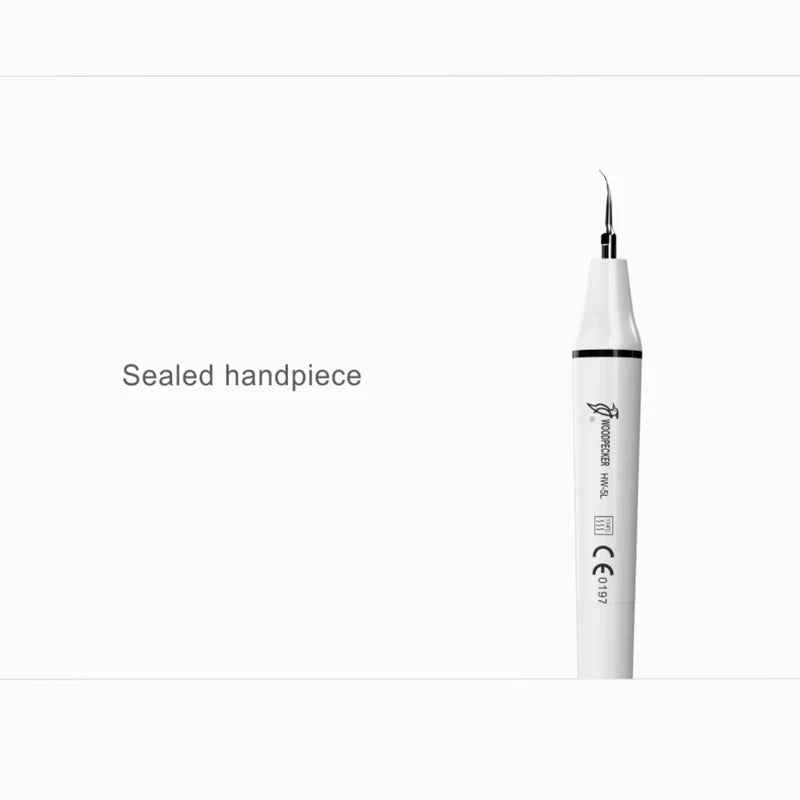

Sealed handpiece
