Woodpecker O-Star Wide Spectrum Dental Curing Light
dental curing light, led curing light, orthodontic curing lamp, wide spectrum resin cure light, 3000mw/cm2 dental light, wireless dental polymerization lamp, woodpecker o-star curing light, caries detection curing light

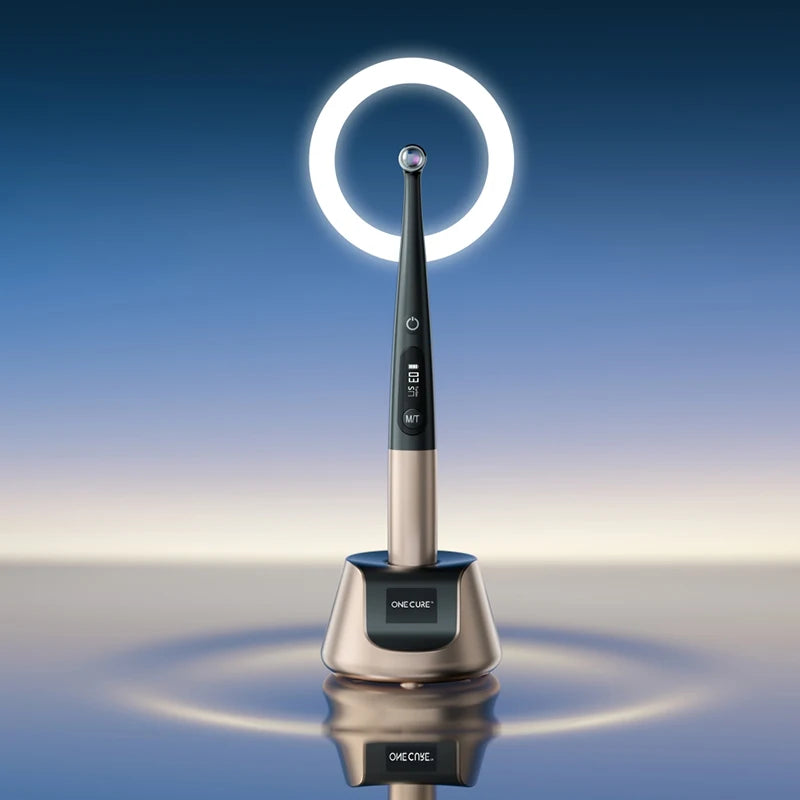

WOODPECKER O-Star Curing Light - Small But Powerful Making A Big Difference
As a pioneering domestic curing light expert from China, Woodpecker owns 16 years of professional optical technology and holds 38 national patents. Our curing lights have achieved global sales exceeding 1.5 million units.
- Full-metal integrated body with ergonomic streamlined grip
- Main unit only 108g, lightweight for long-hour clinical operation without fatigue
- Shock-resistant, sturdy and long service life
7 Professional Working Modes To Cover All Clinical Scenarios
O-Star is equipped with seven adjustable modes to perfectly meet filling, restoration, orthodontic bonding, sensitive tooth treatment, heat control and caries inspection demands.
Normal Mode & High Mode
Normal Mode
Constant light intensity: 1000-1200mw/cm², ideal for routine fillings and restorations. Adjustable timer: 5s / 10s / 15s / 20s.
High Mode
Constant light intensity: 1800-2000mw/cm² for fast deep curing. Timer options: 3s / 5s.
Turbo Mode & Ortho Mode
Turbo Mode
Peak intensity 2700-3000mw/cm², 1-second full cure for 2mm thick resin. Timers: 1s / 3s.
Ortho Mode
2700-3000mw/cm² high penetration light, specially designed for orthodontic bracket bonding. Cycle timer: 3s*5 / 3s*10.
Soft Mode, Pulse Mode & Check Mode
Soft Mode
Light output rises gradually from 0 to 1200mw/cm², effectively cuts resin shrinkage and microleakage risk. Timers: 5/10/15/20s.
Pulse Mode
0.6s curing + 0.4s pause cycle, reduces heat buildup for comfortable treatment. Timer: 5/10/15/20s.
Check Mode
Single purple light emission. With special eyewear, caries, tartar and cracked teeth glow orange-red for easy diagnosis.

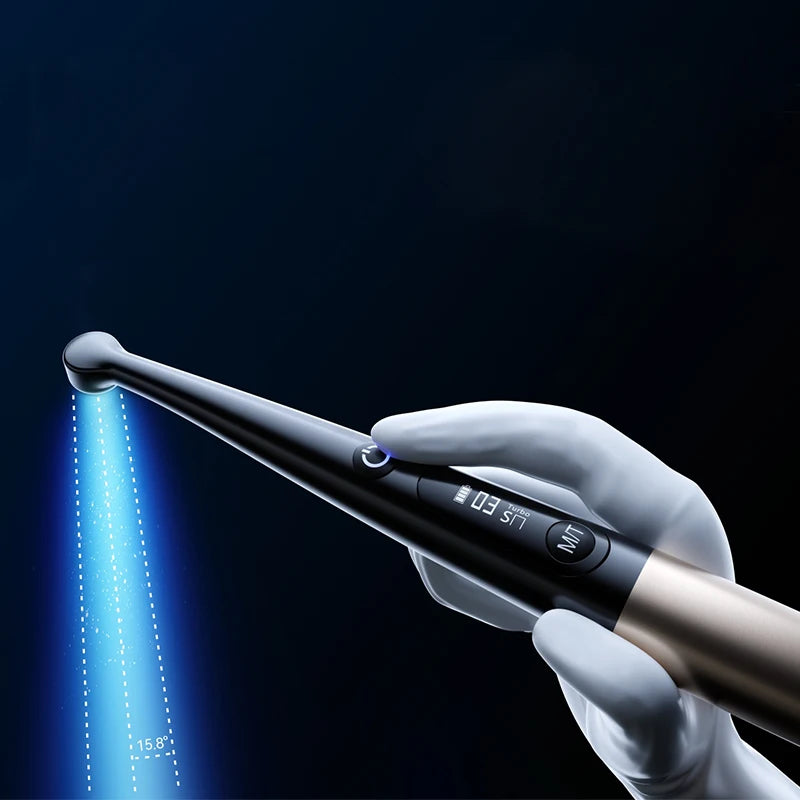

Precise Concentrated Beam & Minimal Light Loss
Only 15.8° light angle creates highly concentrated output to guarantee deep uniform curing effect. Compared with ordinary curing lights, O-Star suffers far less light intensity drop when working distance increases.

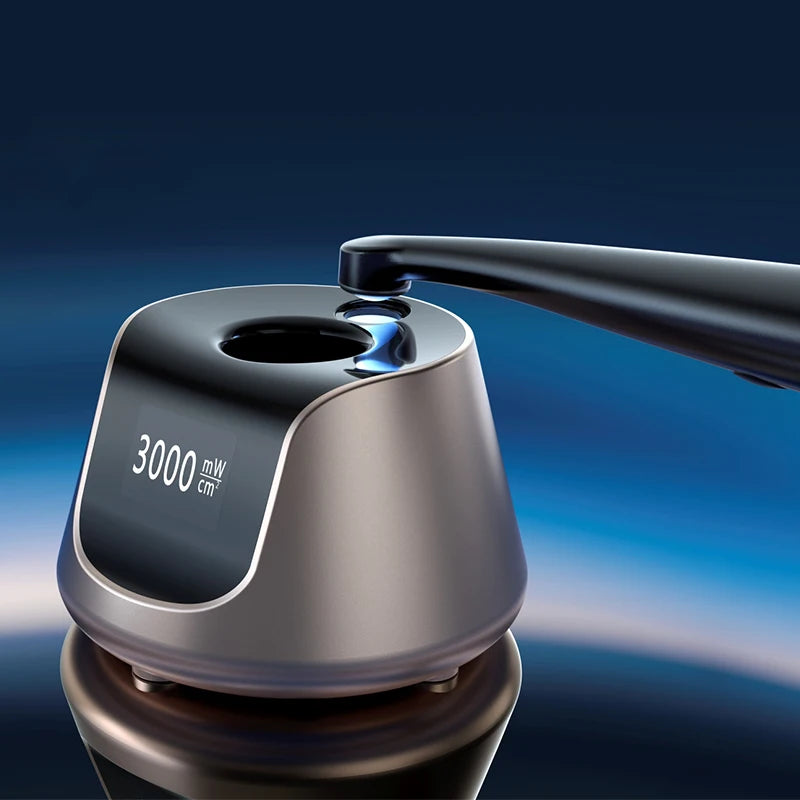

Built-in Light Meter Charging Base
The charging dock integrates a precise light intensity tester. Stable, calibrated luminous power ensures complete resin polymerization and consistent reliable clinical results for every patient.
Simple Two-Button Control with OLED Display
Clear OLED screen real-time shows working mode, light power and countdown time, preventing operation mistakes during busy dental procedures.

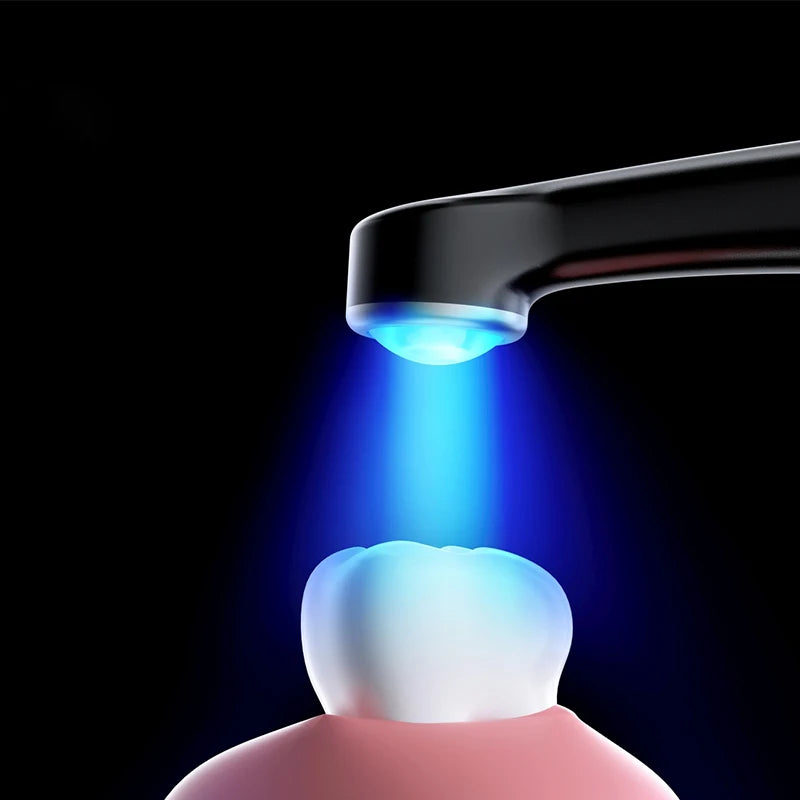

10mm Large Diameter Lens & 360° Rotatable Head
O-Star adopts a 10mm diameter optical lens versus standard 8mm lenses, covering larger tooth surface per shot to boost workflow efficiency.
Full 360° rotatable slim curing head easily accesses posterior molars. Patients only need slight mouth opening for more comfortable clinical visits.
385-515nm Full Wide Spectrum Compatibility
Most dental resins use CQ, TPO or Ivocerin photoinitiators, whose absorption band ranges from 385nm to 515nm. O-Star’s full-spectrum LED covers this full wavelength range, compatible with all mainstream composite resin materials available globally. Wavelength test data sourced from official Ivoclar Vivadent specifications.
Powerful 10W LED Core, Max 3000mw/cm² Luminous Intensity
Equipped with industrial-grade 10W LED chip delivering peak 3000mw/cm² output. Ultra-high luminous power shortens curing cycles while delivering sufficient curing depth to improve overall dental chair efficiency drastically.
Competitive Advantage Against Premium Brand Curing Lights
O-Star combines all premium features of high-end wireless curing lights including wide spectrum, multi-mode control, caries detection function, built-in light meter and ultra-high intensity, delivering equivalent professional performance at a more cost-effective price for dental clinics worldwide.
