Product Details
Product features

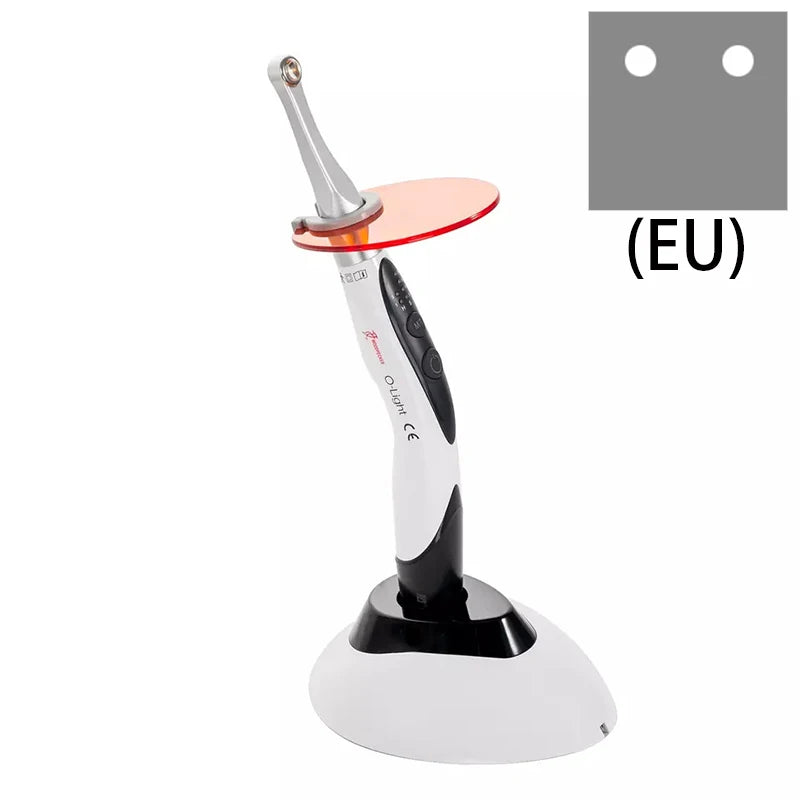

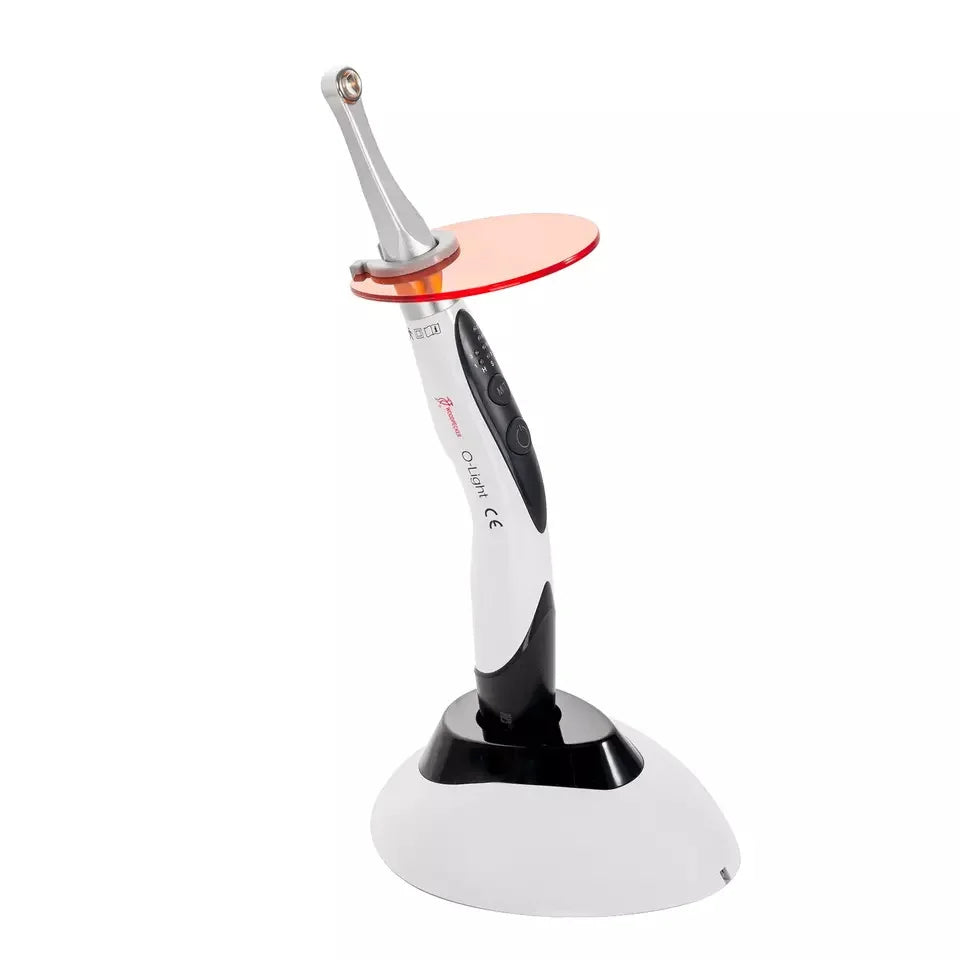

- O-Light Plus
- CONSTANT POWER OUTPUT
- 360°CURING
- FLUID DESIGN
- 1 SEC.FOR CURING
Basic Technical Specifications
- Size: 268.8mm×26.1mm×31.8mm
- Net weight: 259g

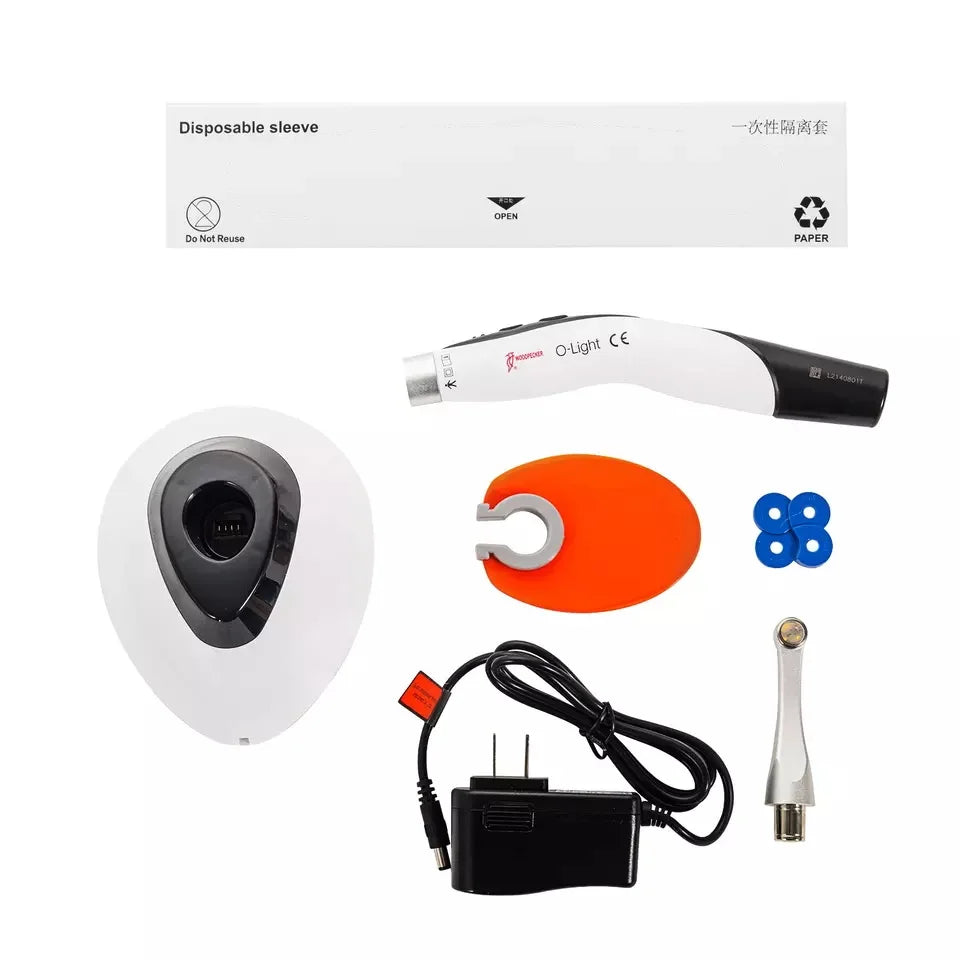

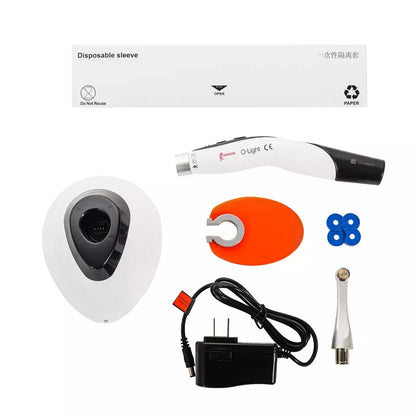

- The components of machine: see the packing list.
- Adapter: classified by power supply The power supply by the rechargeable battery.
- Adapter(charge) Adapter input: AC100~240V 50Hz/60Hz 3
- Output: DC5V 1A
- Built-in fuse: T1A250V

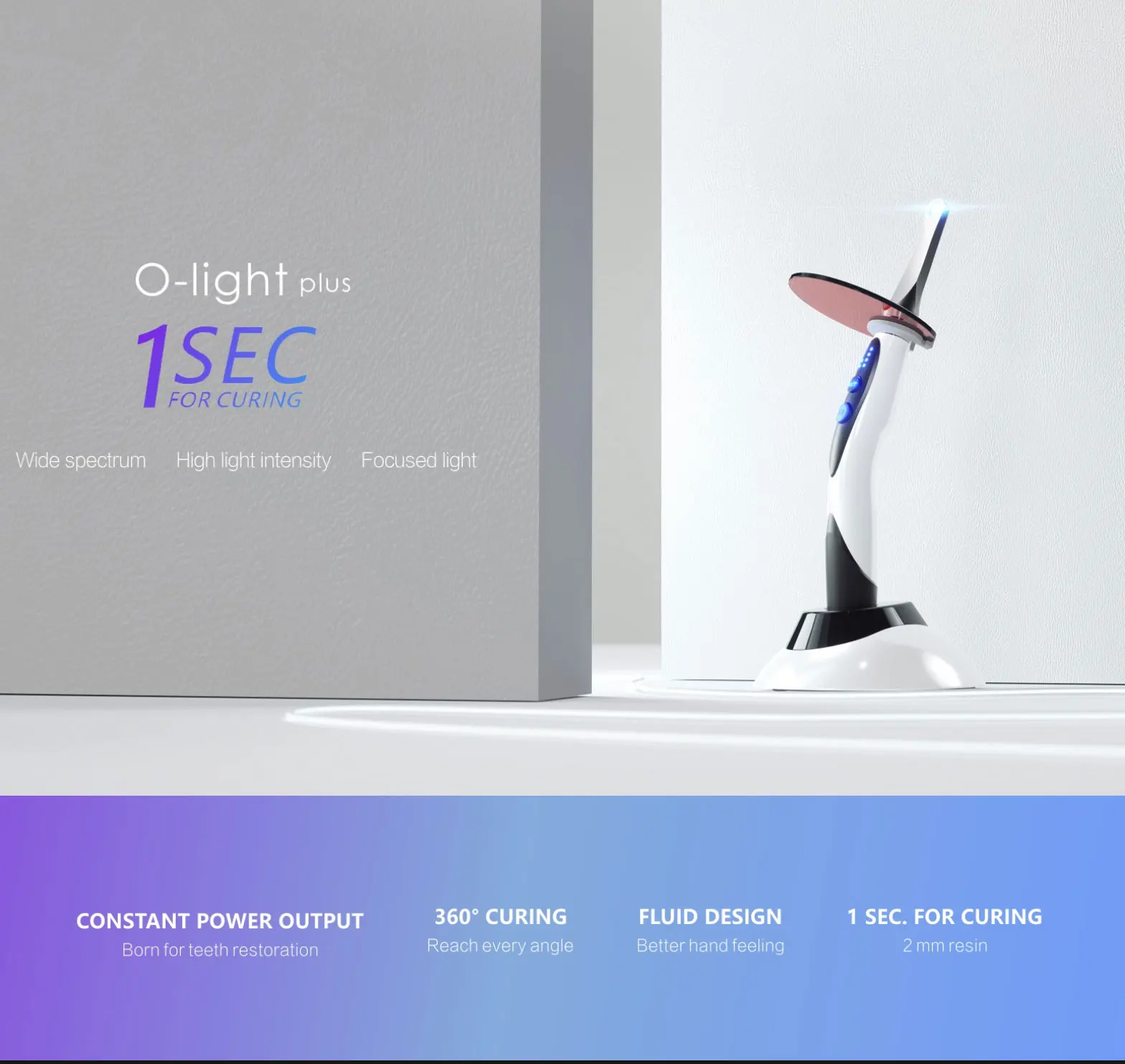

Wide spectrum,High light intensity,Focused light.
Constant power output, born for dental repair.
360° curing, reaching every angle.

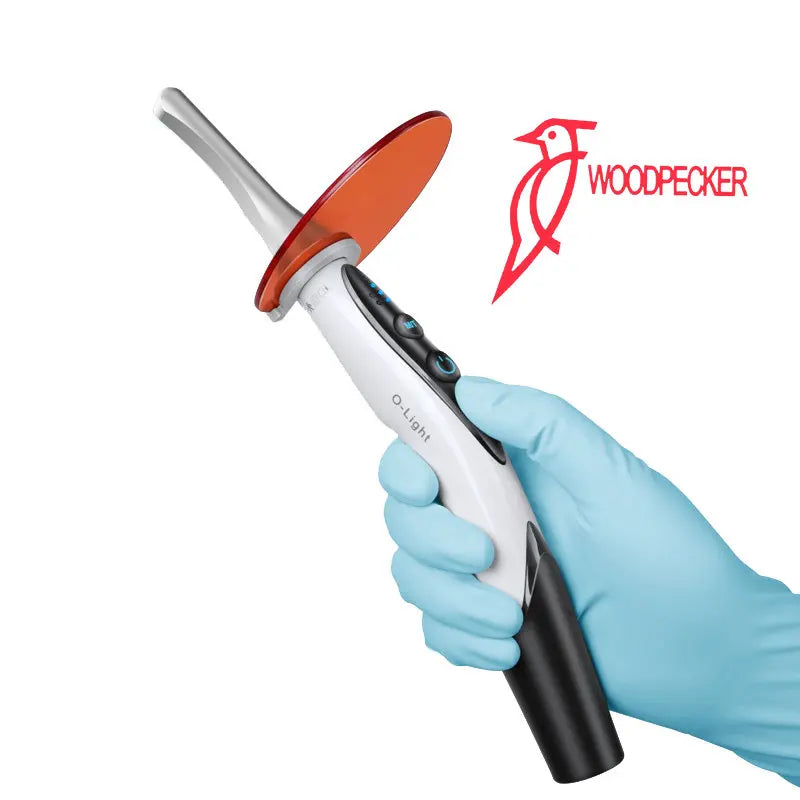

Fluid design, better feel.
Cure 2 mm resin in 1 second.

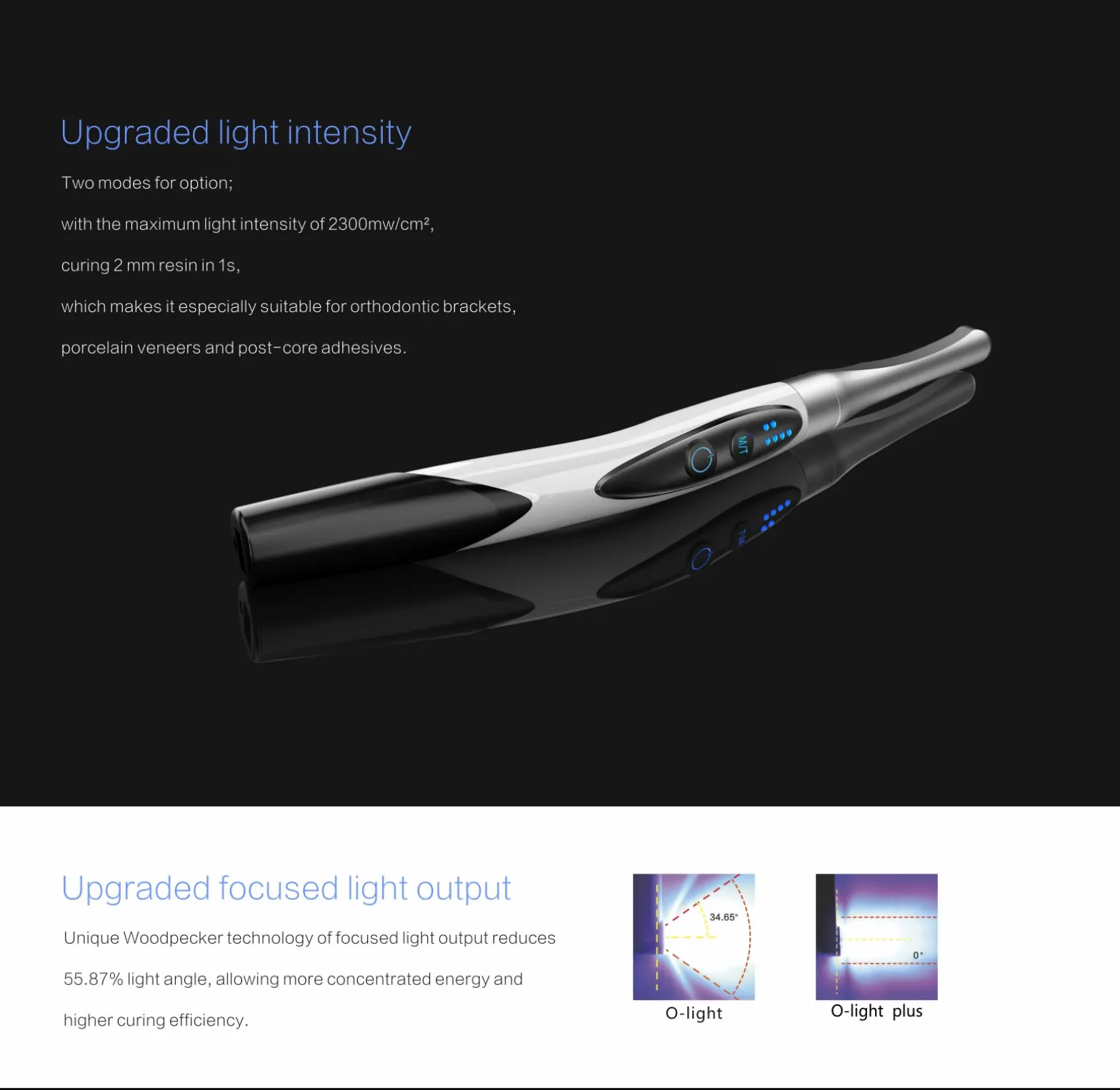

Upgraded light intensity

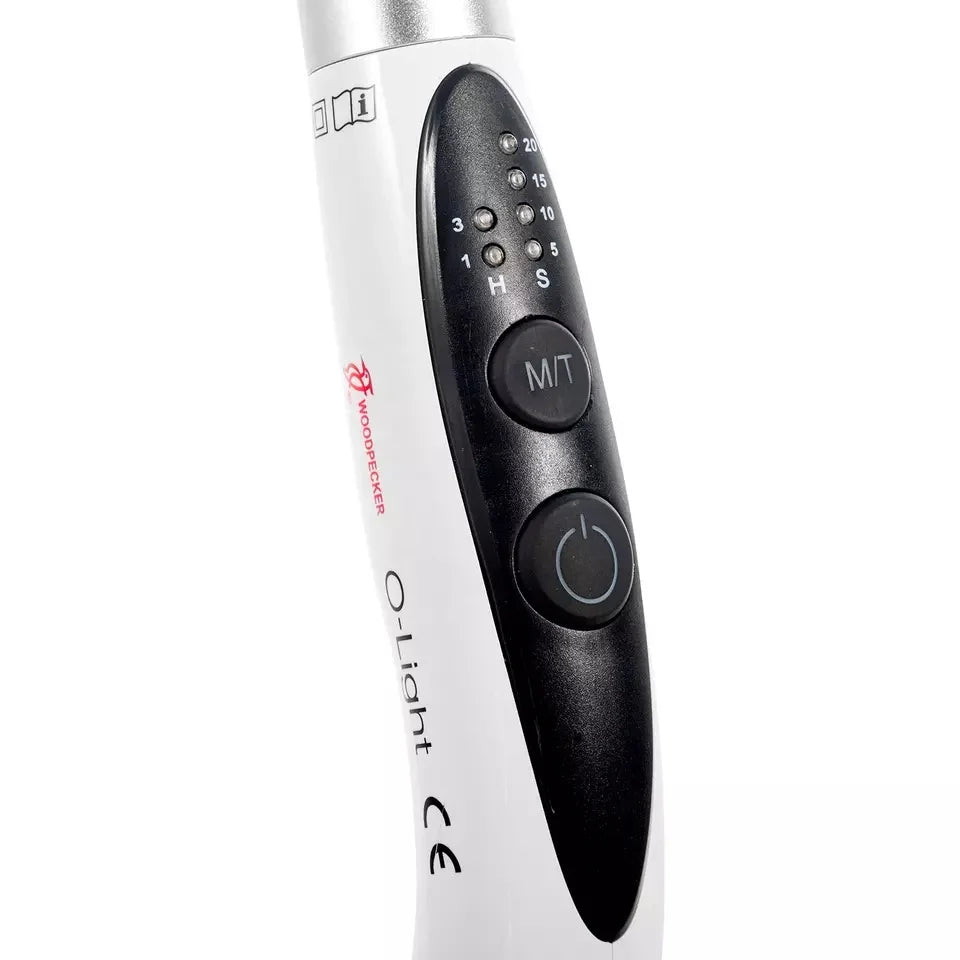

- Two modes for option;
- with the maximum light intensity of 2300mw/cm2,curing 2 mm resin in 1s,which makes it especially suitable for orthodontic brackets,porcelain veneers and post-core adhesives.
Upgraded focused light output
- Unique Woodpecker technology of focused light output reduces55.87% light angle, allowing more concentrated energy andhigher curing efficiency.

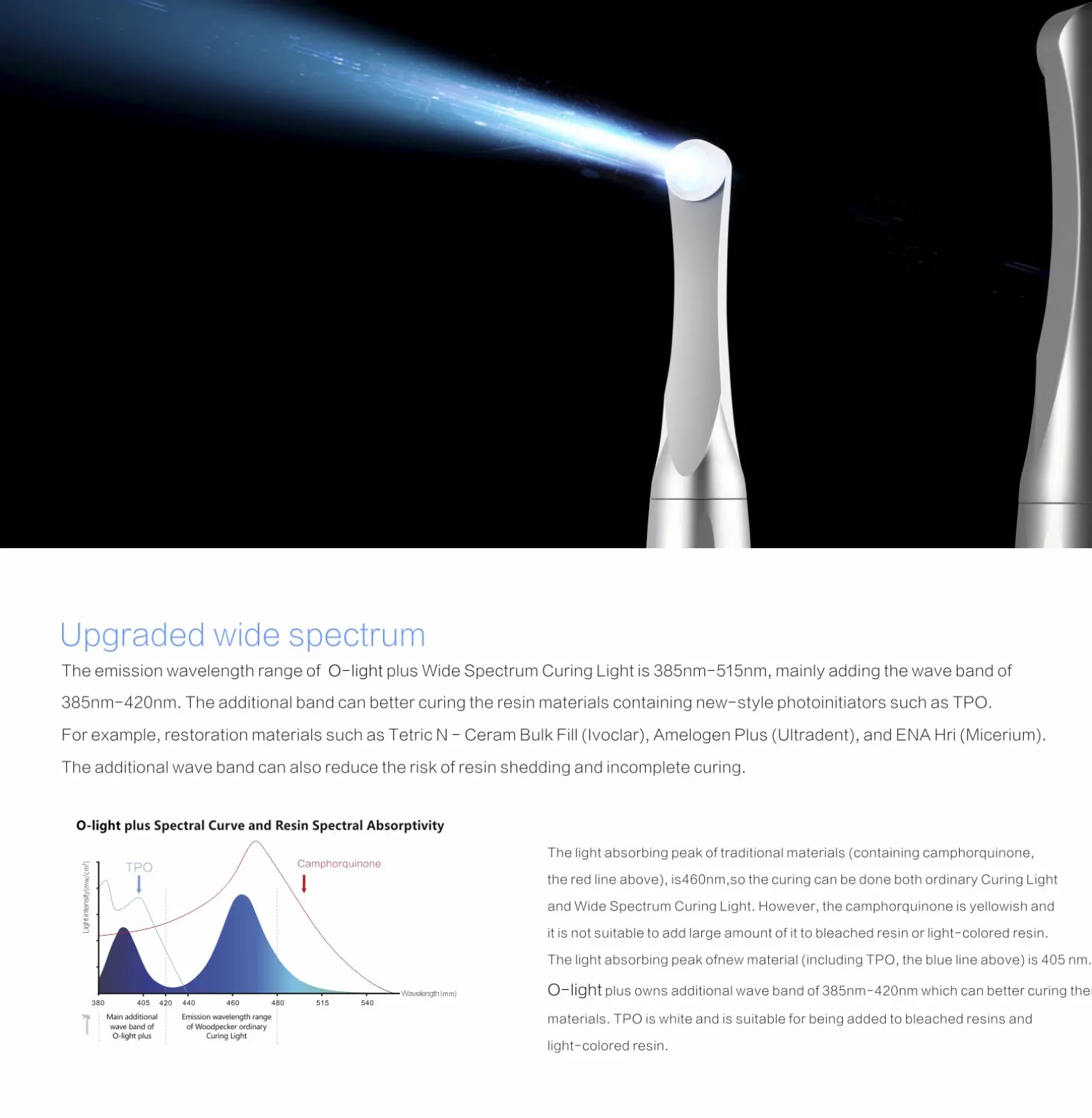

Upgraded wide spectrum
- The emission wavelength range of O-light plus Wide Spectrum Curing Light is 385nm-515nm,mainly adding the wave band of 385nm-420nm.The additional band can better curing the resin materials containing new-style photoinitiators such as TPO.
- For example,restoration materials such as Tetric N-Ceram Bulk Fill(Ivoclar),Amelogen Plus(Ultradent),and ENA Hri(Micerium).
- The additional wave band can also reduce the risk of resin shedding and incomplete curing.
- The light absorbing peak of traditional materials (containing camphorquinone,the red line above),is460nm,so the curing can be done both ordinary Curing Light and Wide Spectrum Curing Light.However,the camphorquinone is yellowish and it is not suitable to add large amount of it to bleached resin or light-colored resin.
- The light absorbing peak ofnew material (including TPO,the blue line above)is 405 nm.
- O-light plus owns additional wave band of 385nm-420nm which can better curing the materials.TPO is white and is suitable for being added to bleached resins and light-colored resin.

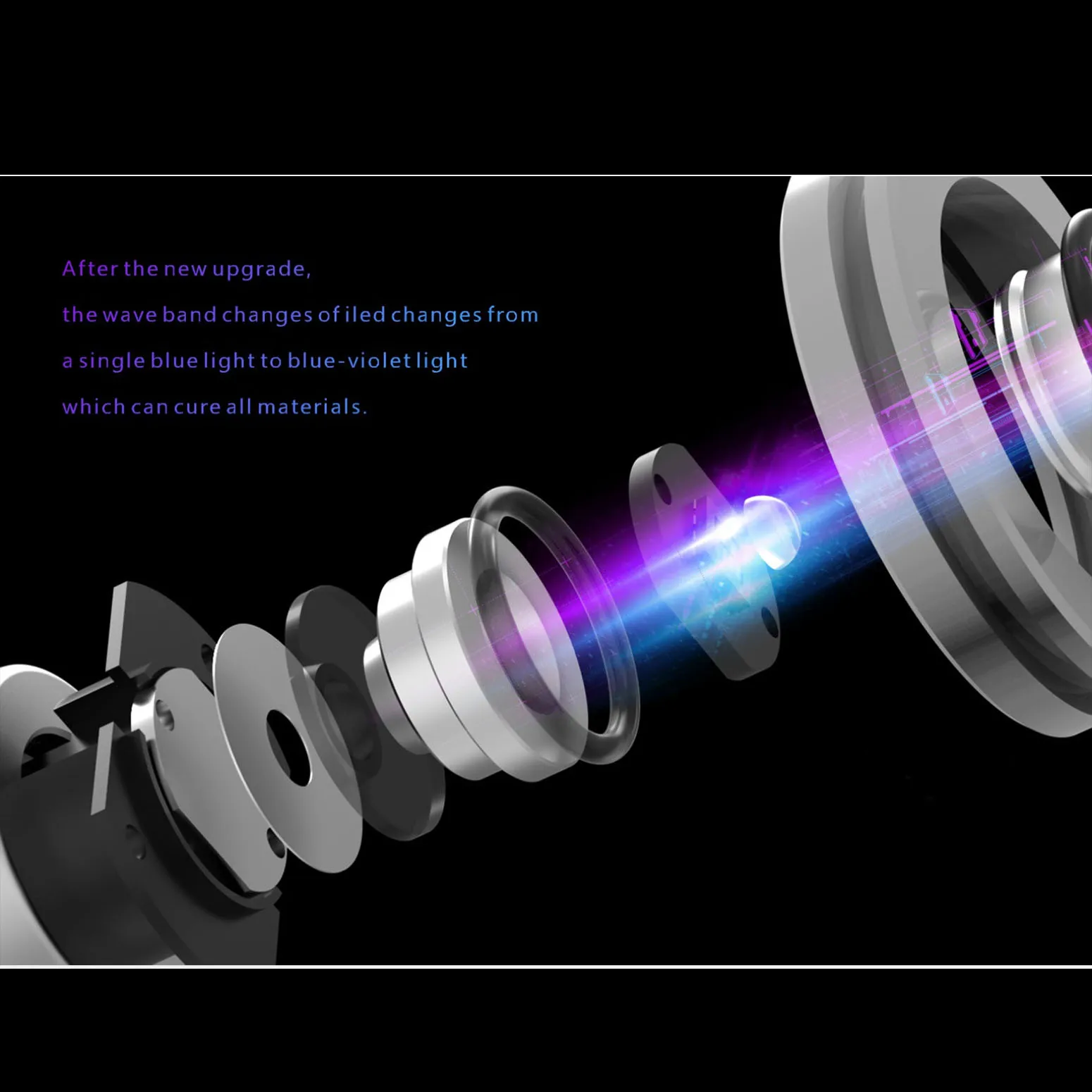

After the new upgrade,the wave band changes ofiled changes from a single blue light to blue-violet light which can cure all materials.

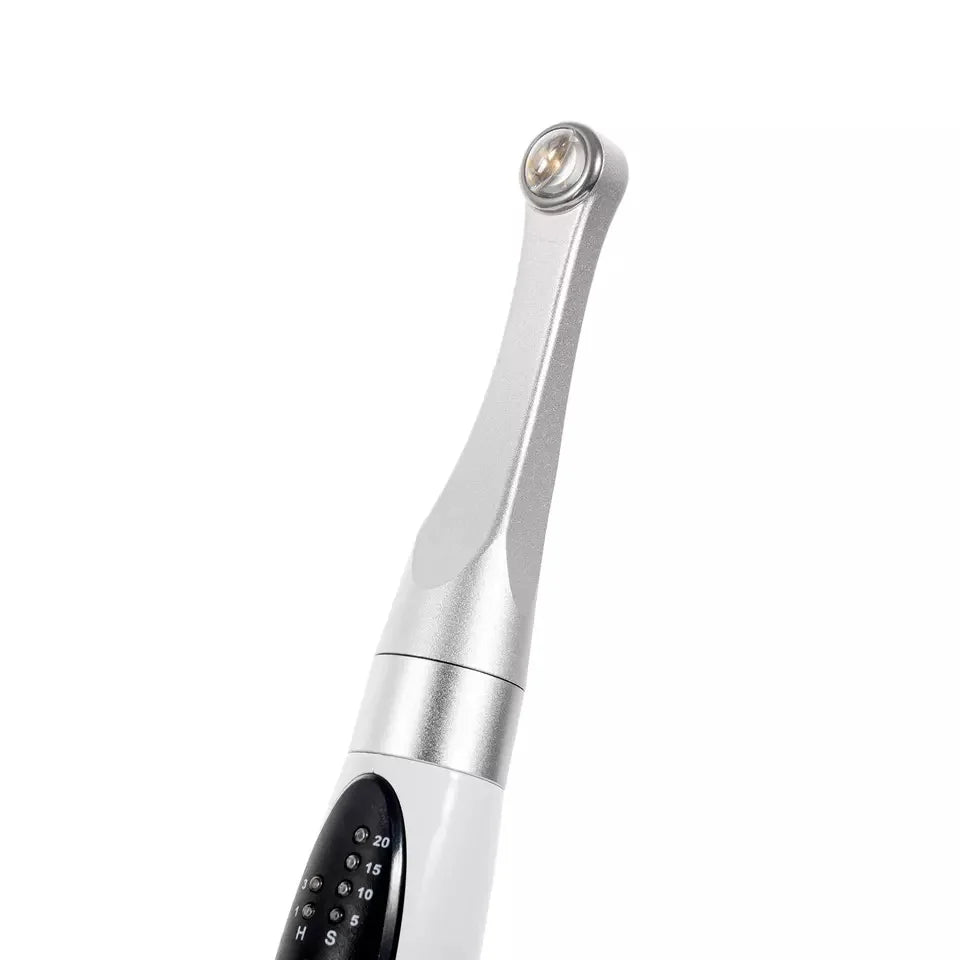

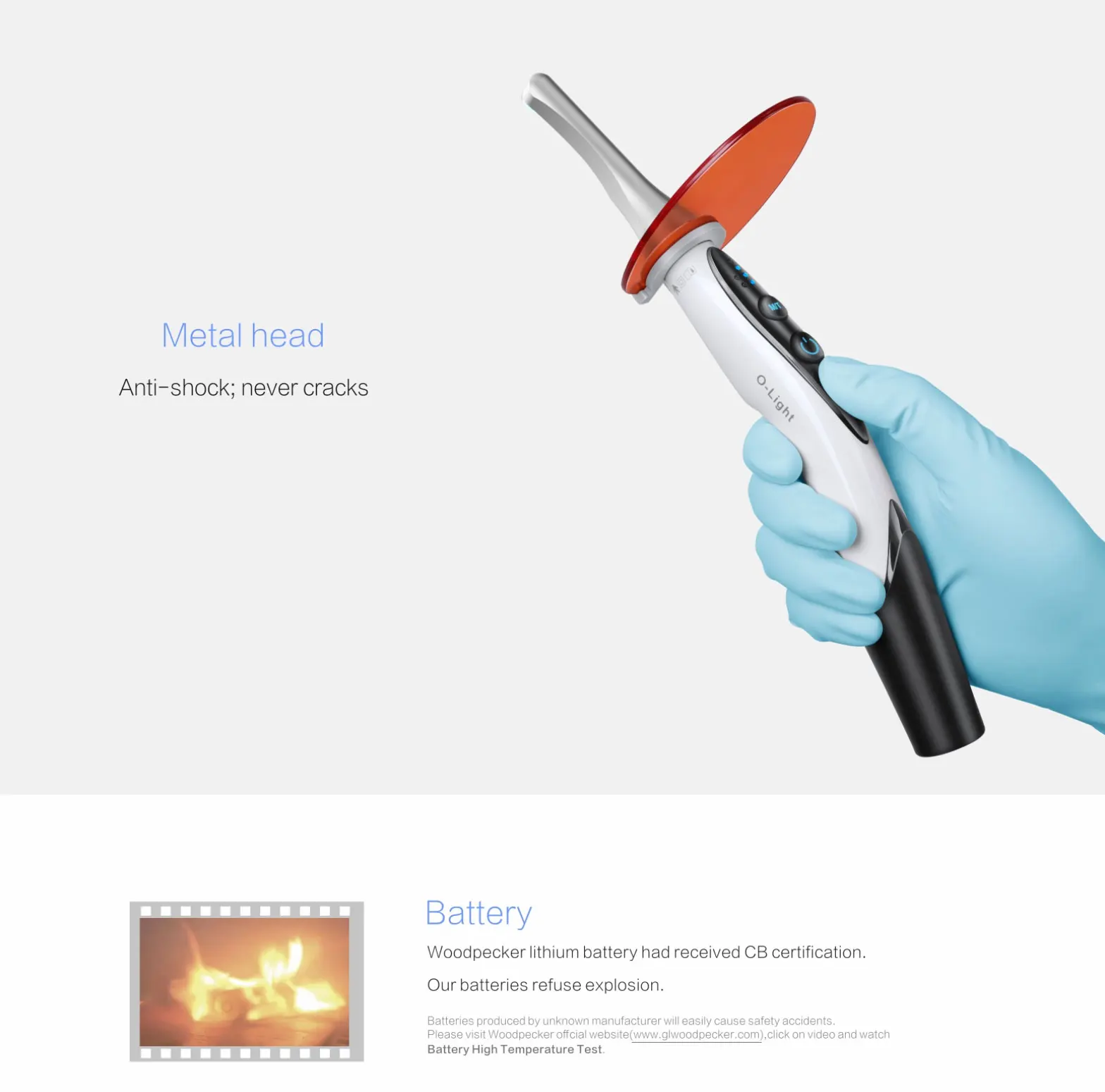

Metal head,Anti-shock,never cracks.
Battery
- Woodpecker lithium battery had received CB certification.Our batteries refuse explosion.
- Batteries produced by unknown manufacturer will easily cause safety accidents.
Disposable isolation sleeve
- The use of disposable isolation sleeve realizes time-saving disinfection.

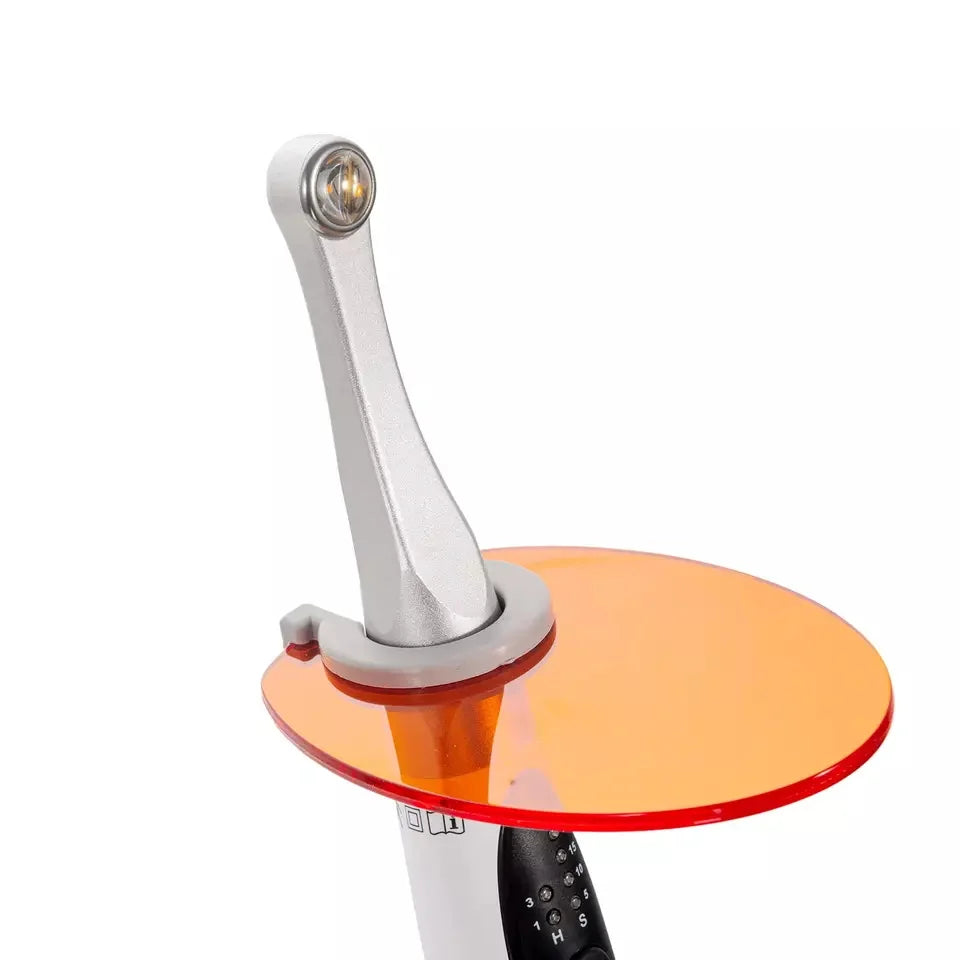

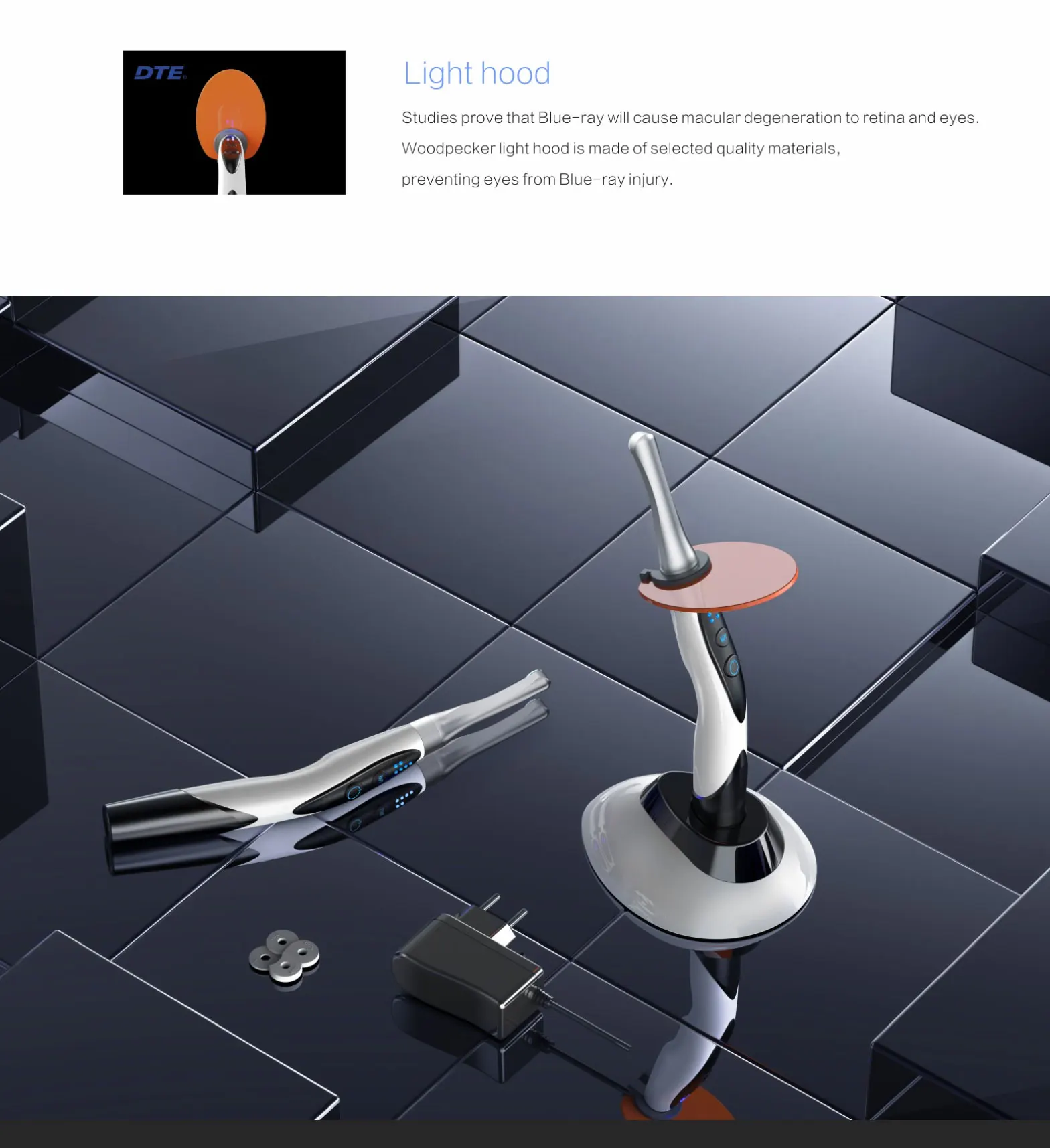

Light hood
- Studies prove that Blue-ray will cause macular degeneration to retina and eyes.
- Woodpecker light hood is made of selected quality materials,preventing eyes from Blue-ray injury.
OLED display screen
- Adopting the latest display tecknology.
- Avisible and interface.
- User-friendly modification.
