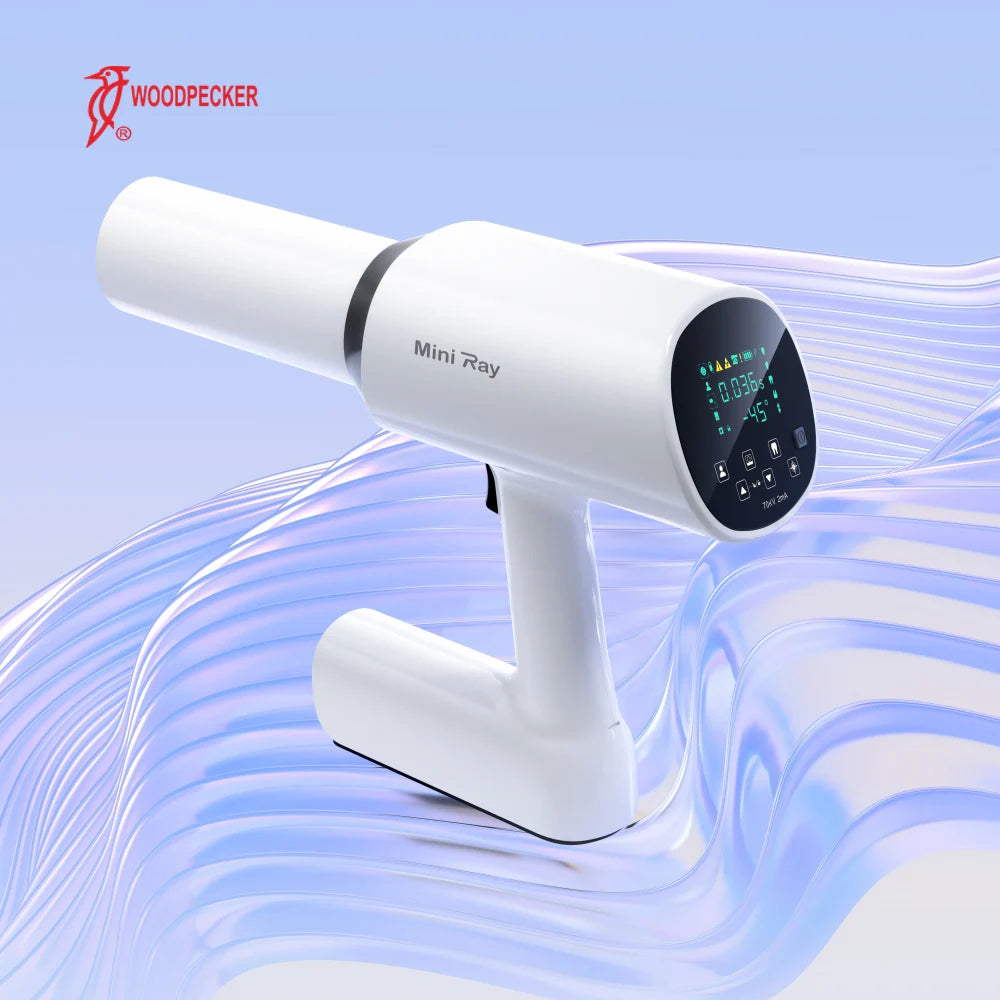

Woodpecker Mini Ray Dental X-Ray Device

Radiology Range | Power Meets Clarity
Note: Currently not available in US

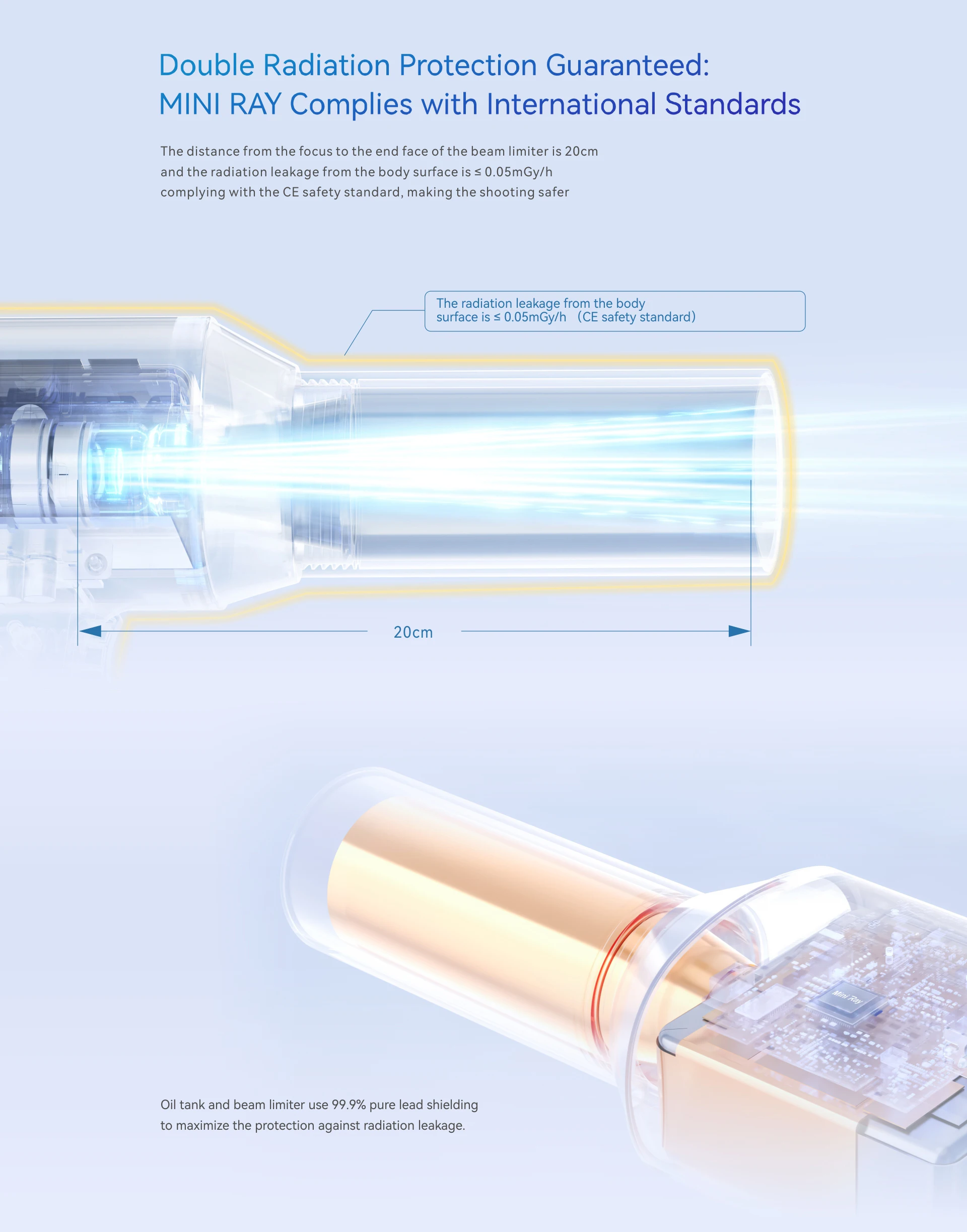

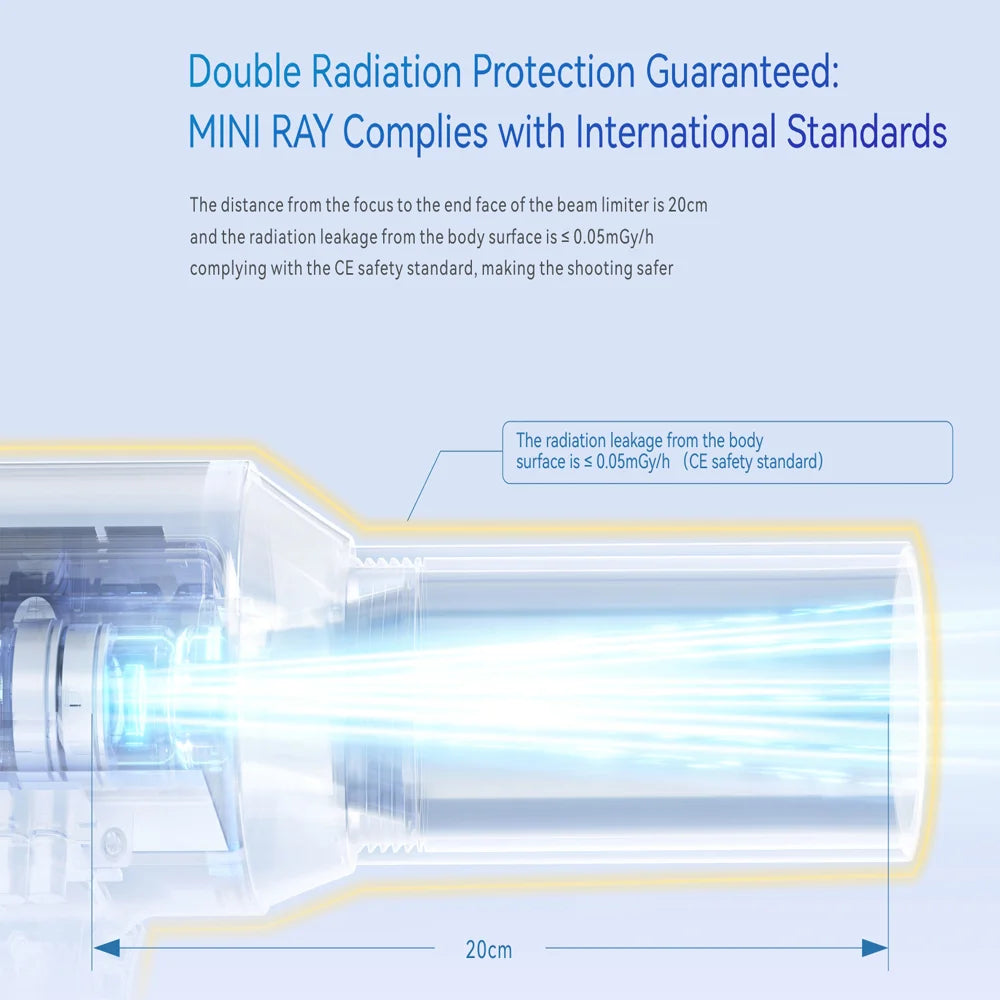

Double Radiation Protection Guaranteed

Mini Ray fully complies with international safety standards. The distance from the focus to the end face of the beam limiter reaches 20 cm, with body surface radiation leakage ≤ 0.05 mGy/h, fully meeting CE safety standards to deliver safer shooting operations.

99.9% Pure Lead Shielding

The oil tank and beam limiter adopt 99.9% pure lead shielding material, which maximizes isolation and prevents radiation leakage effectively.

Durable & Dependable Core Hardware

• Supports over 60,000 exposure times
• Equipped with premium high-frequency X-ray tube for extended service lifespan

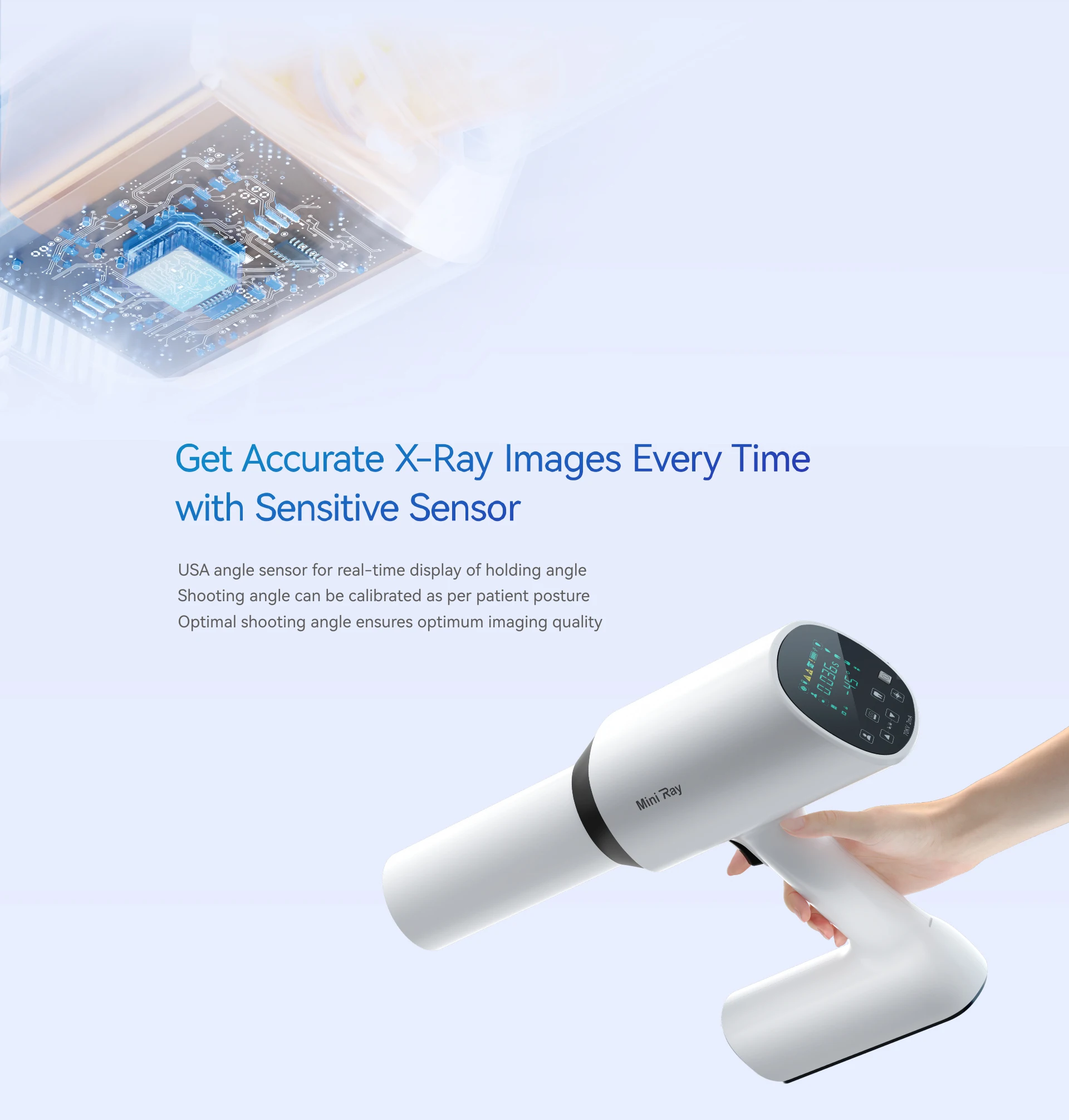

Sensitive Angle Sensor for Precise X-Ray Images

Built-in angle sensor displays holding angle in real time. Shooting angle can be freely calibrated according to different patient postures, locking the optimal shooting angle to guarantee top-tier imaging quality every use.

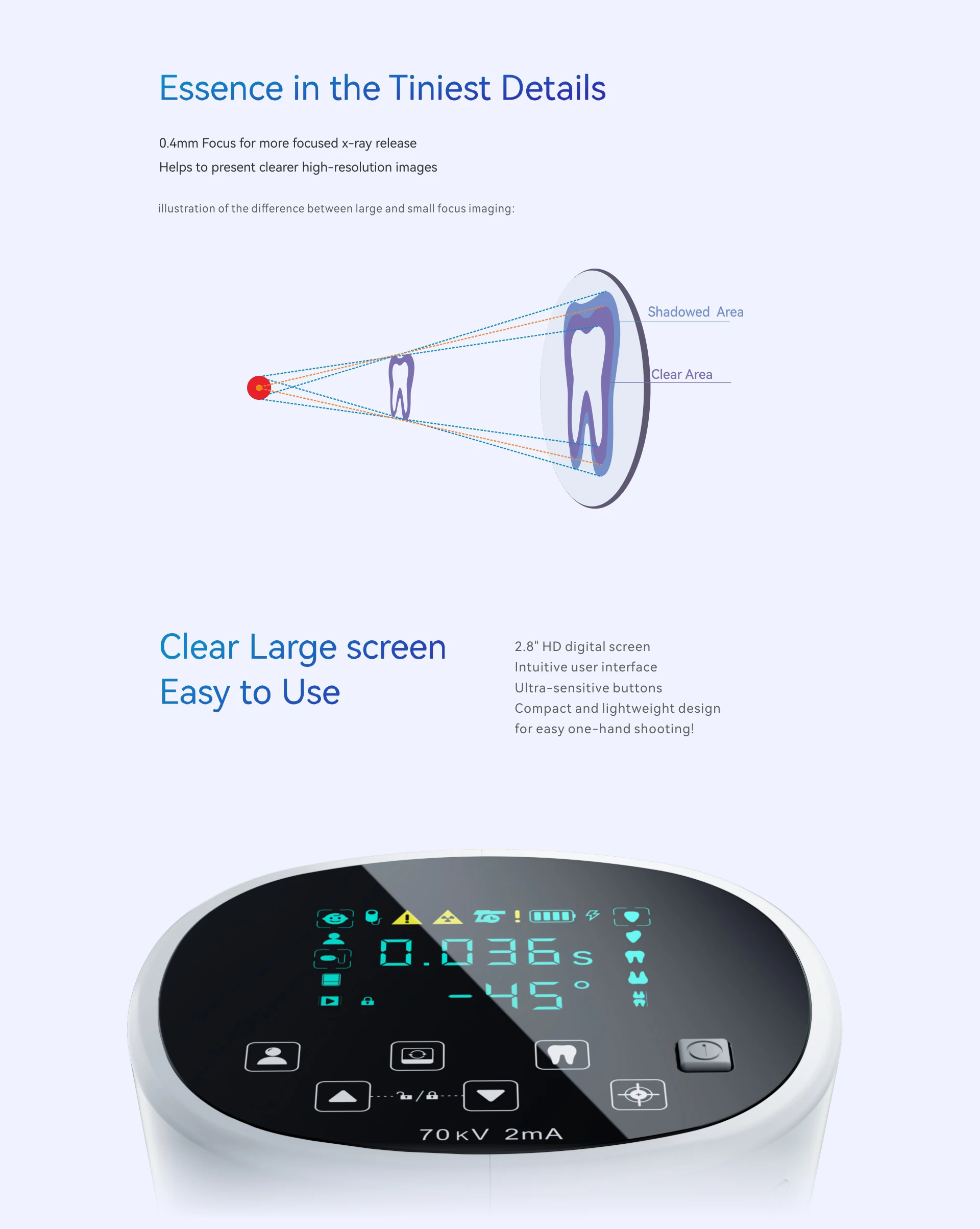

0.4mm Ultra-Fine Focus for High-Resolution Imaging

The 0.4mm tiny focus concentrates X-ray emission efficiently, generating clearer, high-definition dental radiographic images compared to large-focus traditional equipment.

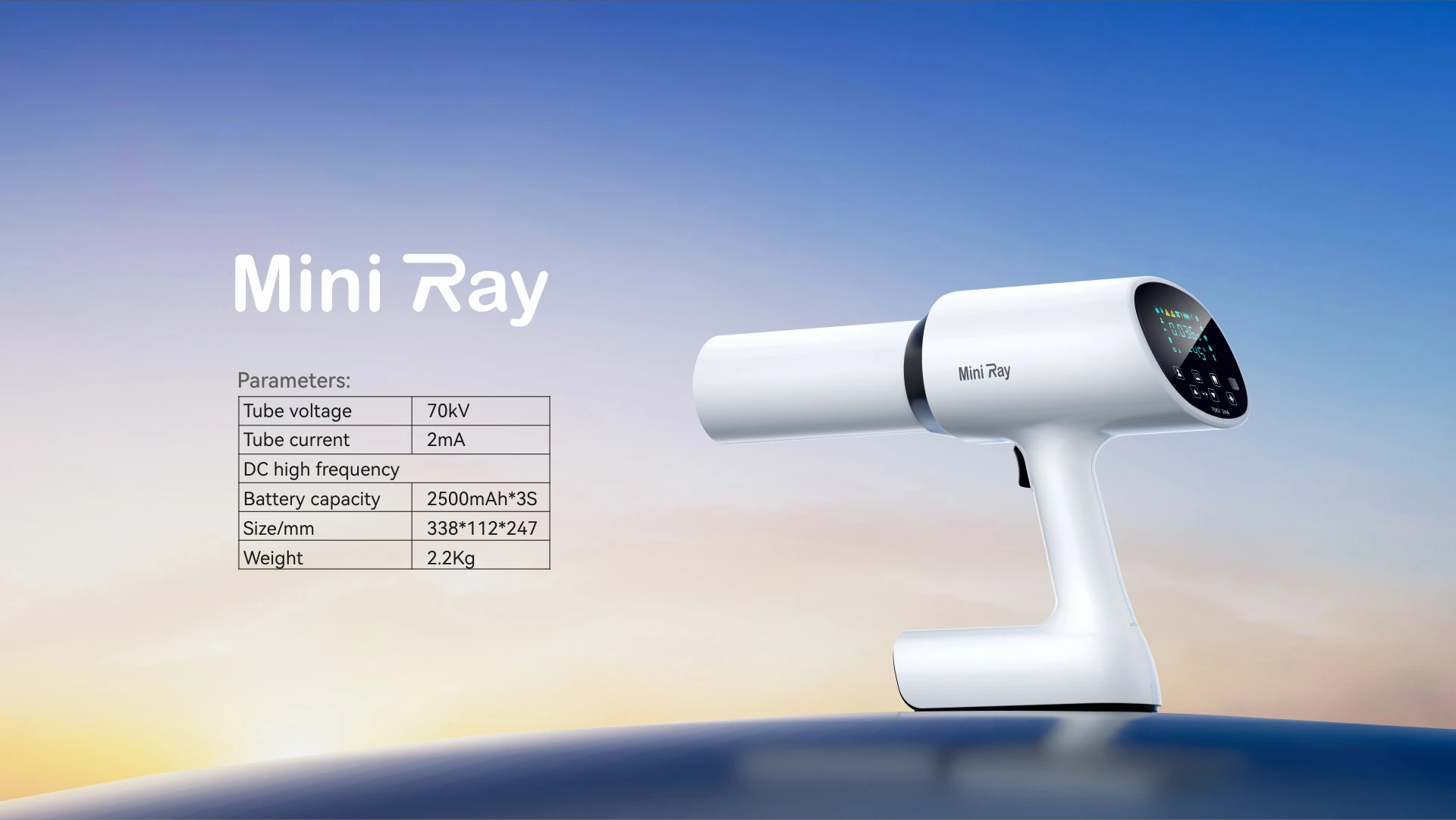

Optimized Parameters for All Clinical Shooting Scenarios

• 70 kV tube voltage: outstanding X-ray penetration power
• 2 mA tube current: millisecond-level quick exposure to eliminate motion blur caused by unstable handheld shooting
• 140 W output power: fully satisfies diversified daily clinical diagnostic demands

High-Performance US Chip Stabilizes Imaging Output

Adopts advanced American chip with high-frequency closed-loop control technology to maintain stable power output. It greatly reduces negative impacts of low battery levels on image quality, providing consistent, worry-free radiographic shooting experience.

Long-Life High-Capacity Lithium Battery Pack

• 3S 2500 mAh large capacity lithium battery
• Delivers over 500 shooting exposures per full charge
• 2-hour fast full charging speed for minimal downtime

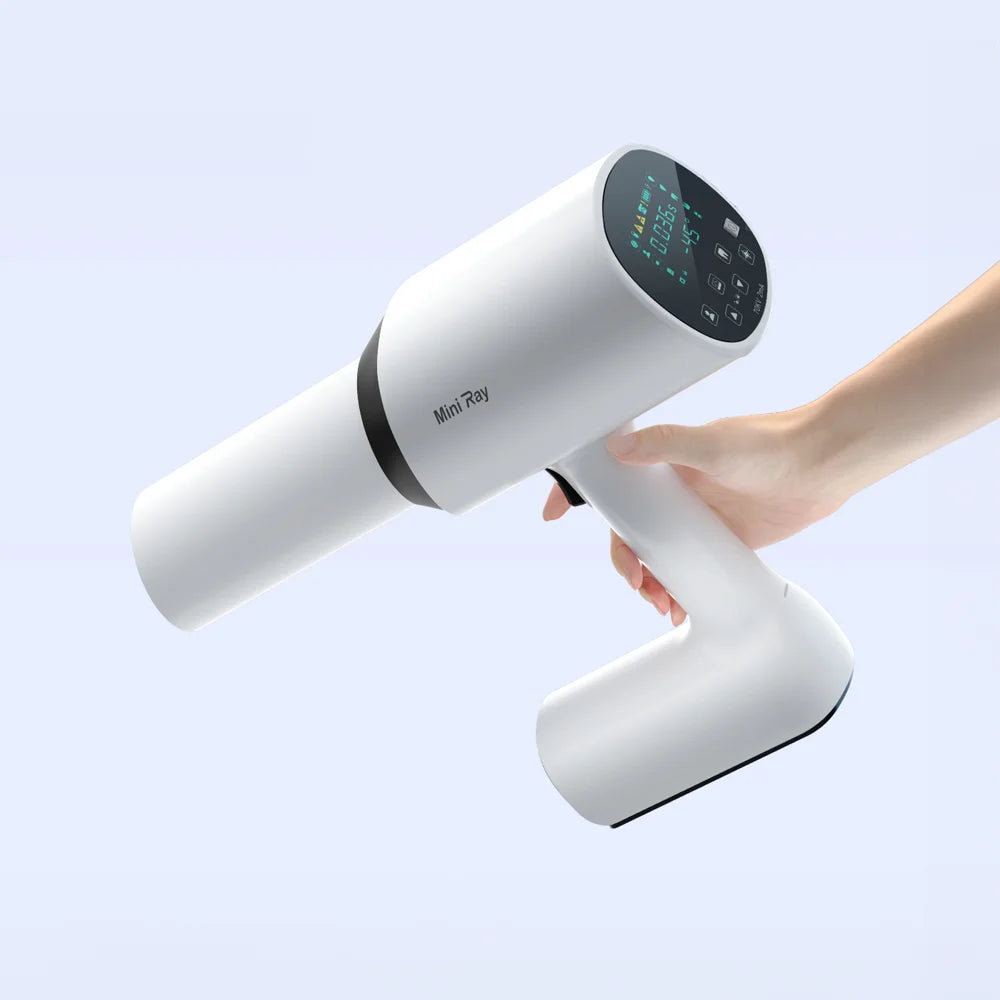

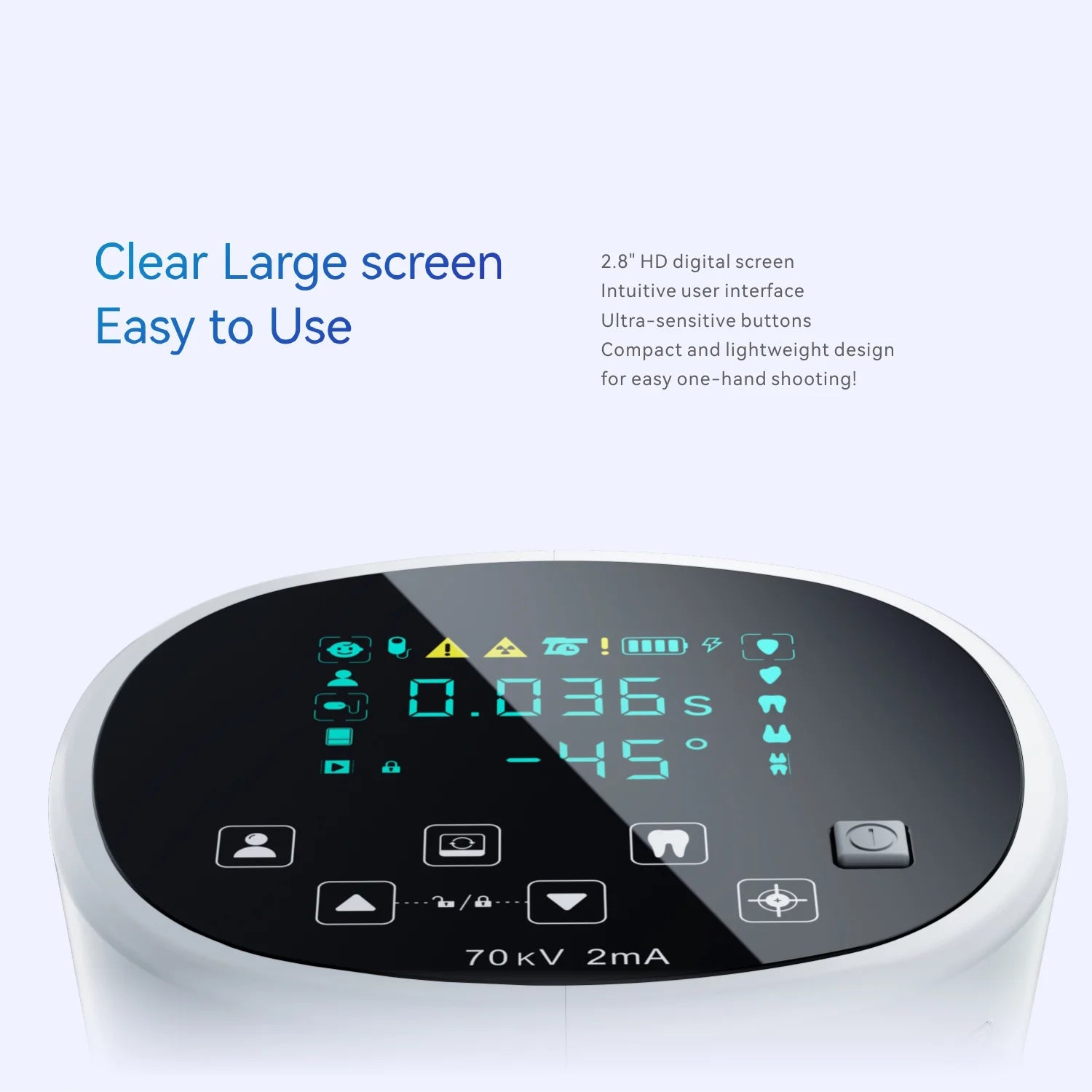

2.8" HD Large Screen & Lightweight One-Hand Operation

2.8-inch HD digital display with intuitive user interface and ultra-sensitive physical buttons. Compact, lightweight body design supports effortless single-hand shooting for flexible clinical use.

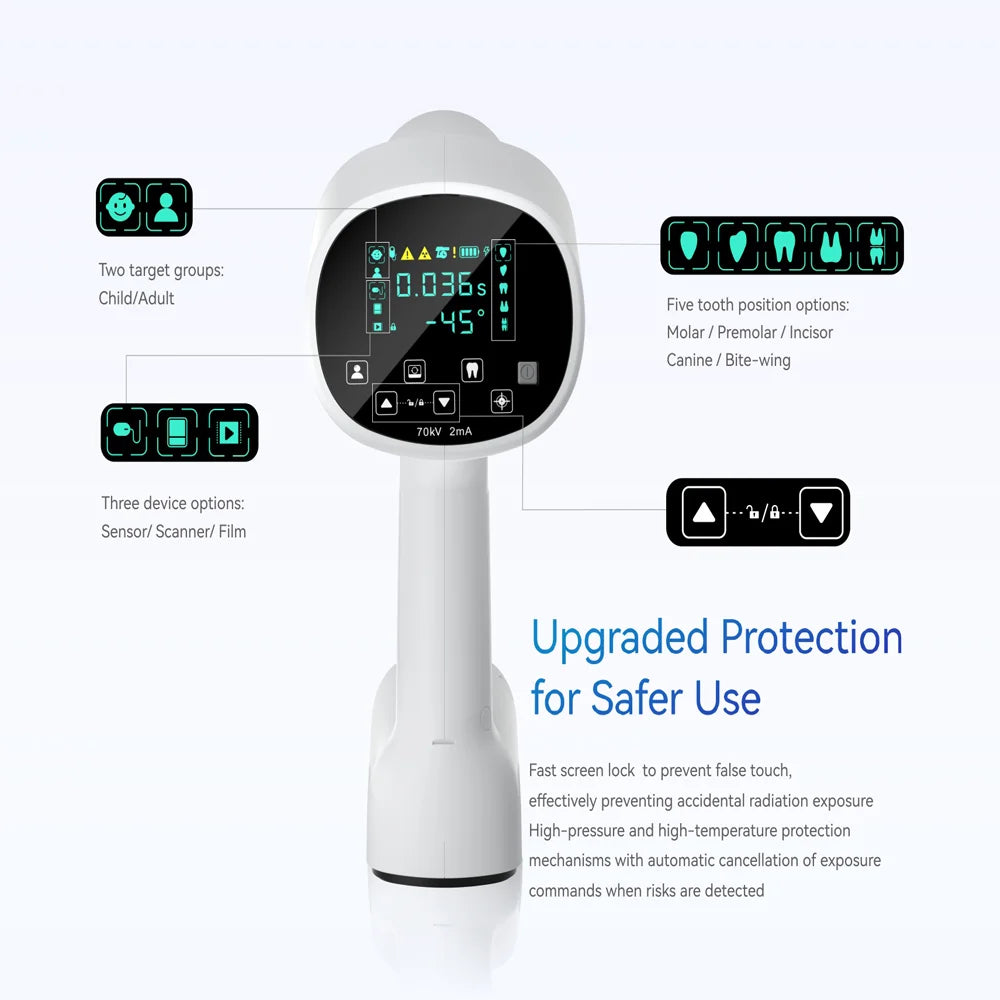

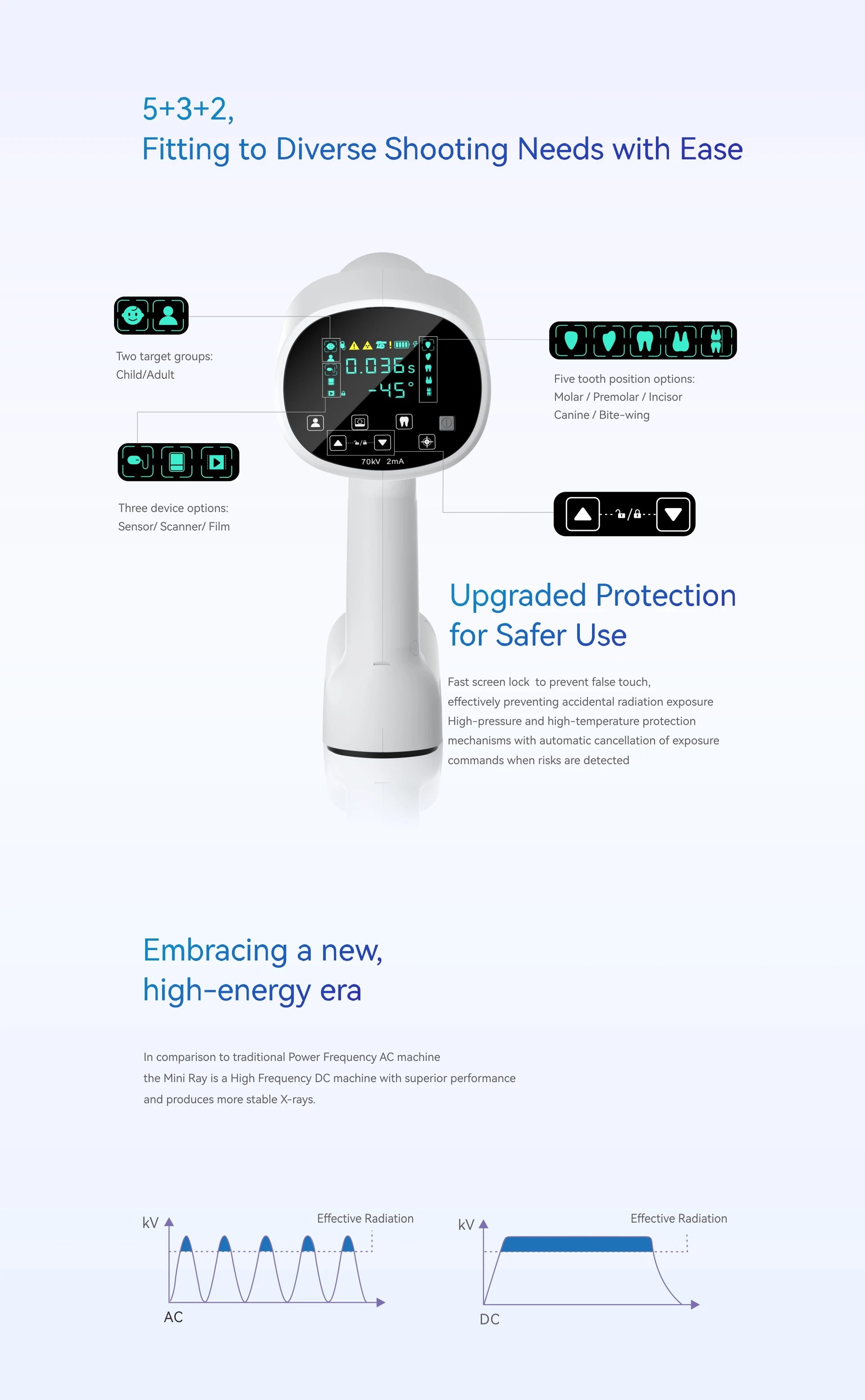

Multi-Layer Safety Protection Mechanisms

5 + 3 + 2 multi-dimensional protection system covers all shooting scenarios for enhanced safety:

• Fast screen lock function prevents accidental touch and unintended radiation exposure
• Built-in high-pressure and high-temperature protection sensors
• Automatically cancels exposure command once abnormal risks are detected

High-Frequency DC Machine Outperforms Traditional AC Equipment

Mini Ray is a premium high-frequency DC dental X-ray unit. Compared with conventional power frequency AC machines, it delivers more stable radiation output, sharper imaging results and lower overall radiation leakage, stepping into a brand new high-efficiency dental radiography era.

Manufacturer: Guilin Woodpecker Medical Instrument Co., LTD
Certifications: CE Safety Standard Compliant
