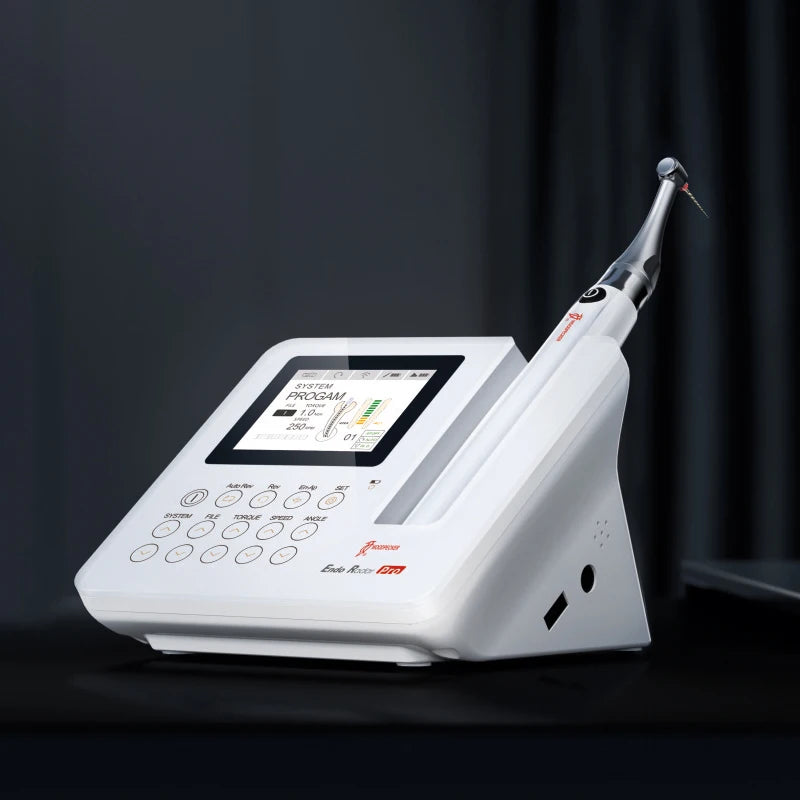

Woodpecker Endo Radar Pro 2-in-1 Cordless Brushless Endo Motor with Built-in Apex Locator
cordless endo motor, brushless root canal motor, integrated apex locator endodontic handpiece, mini contra angle endo motor, wireless charging endo motor, ATR reciprocating endo shaping machine, custom file system endo motor

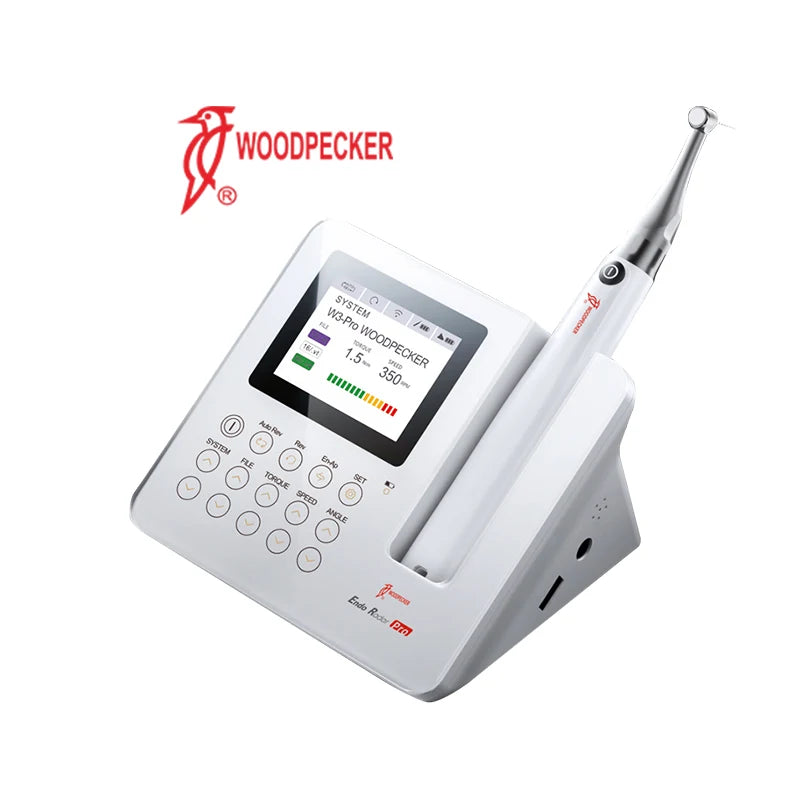

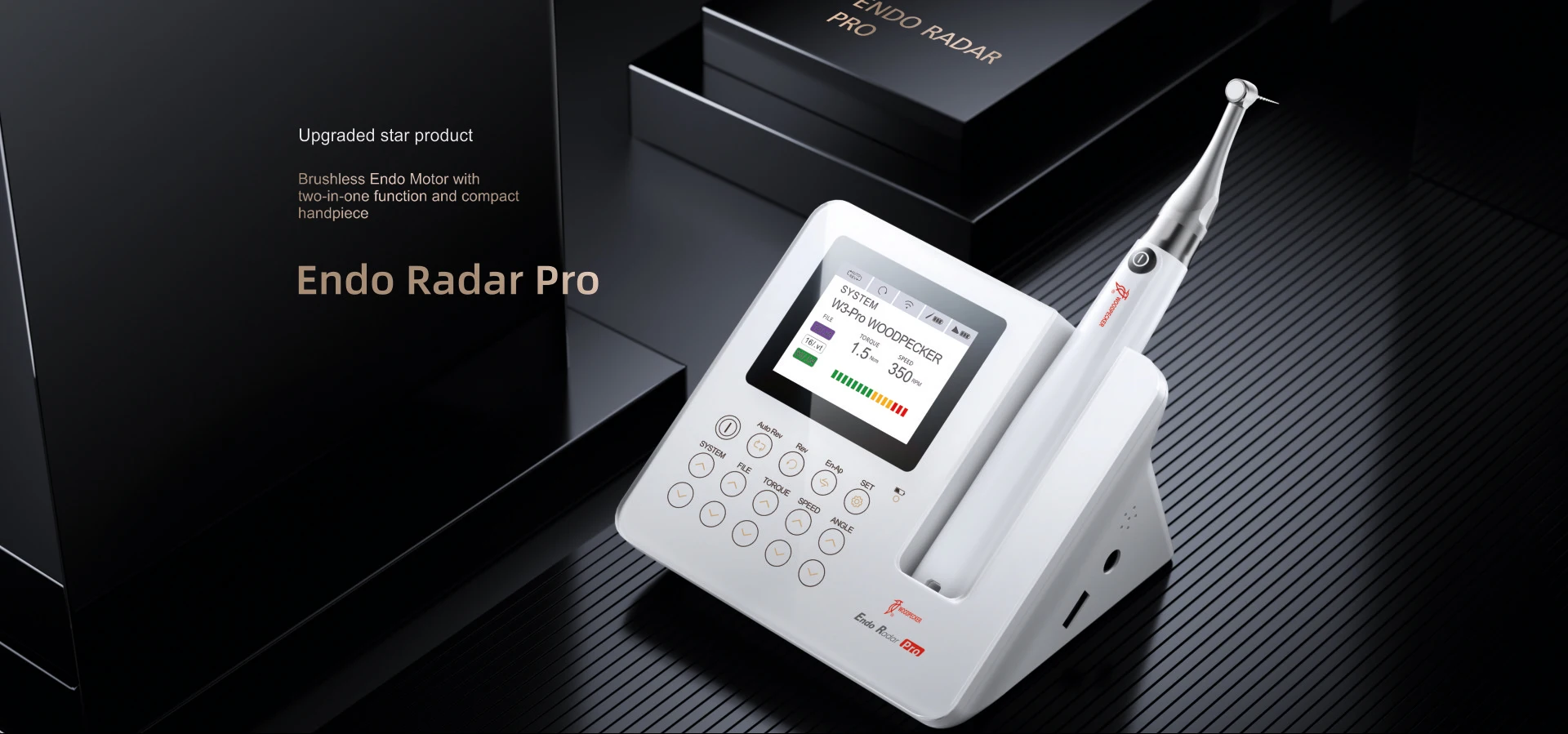

Dual Function All-In-One Brushless Cordless Endo Motor
Endo Radar Pro combines root canal preparation and real-time apex length monitoring into one unit. Equipped with a long-life brushless motor, ultra-compact cordless handpiece and integrated apex locator module, it eliminates separate measuring steps and streamlines full endodontic workflow for dental clinics.

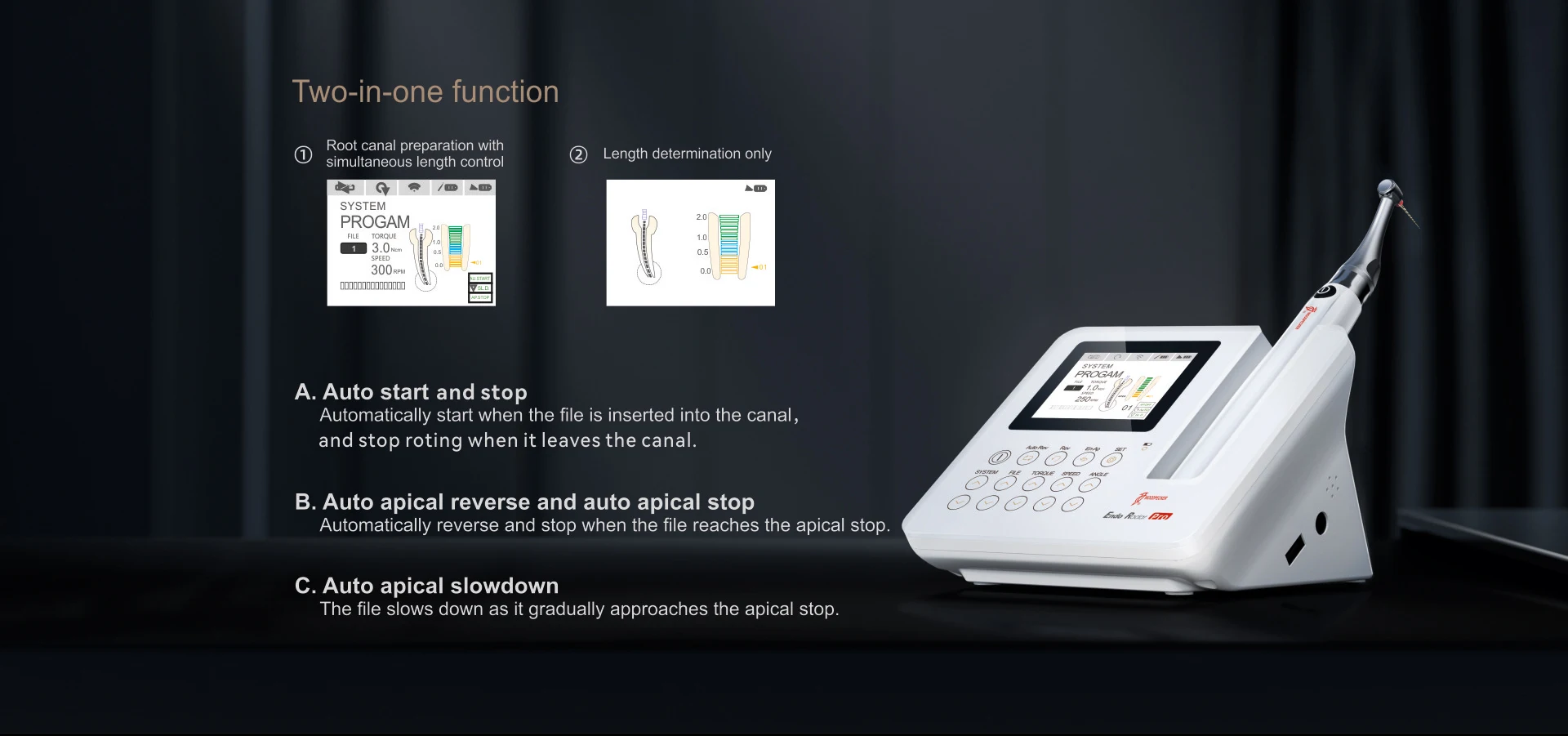

Intelligent 2-in-1 Auto Safety Protection Functions
- Auto Start & Auto Stop: Rotation automatically activates once the file enters the canal and stops when withdrawn
- Auto Apical Reverse & Stop: Motor reverses rotation then fully stops once the file reaches the apical stop to prevent perforation
- Auto Apical Slowdown: Rotation speed gradually reduces as the instrument approaches the apical constriction for gentle, safe shaping

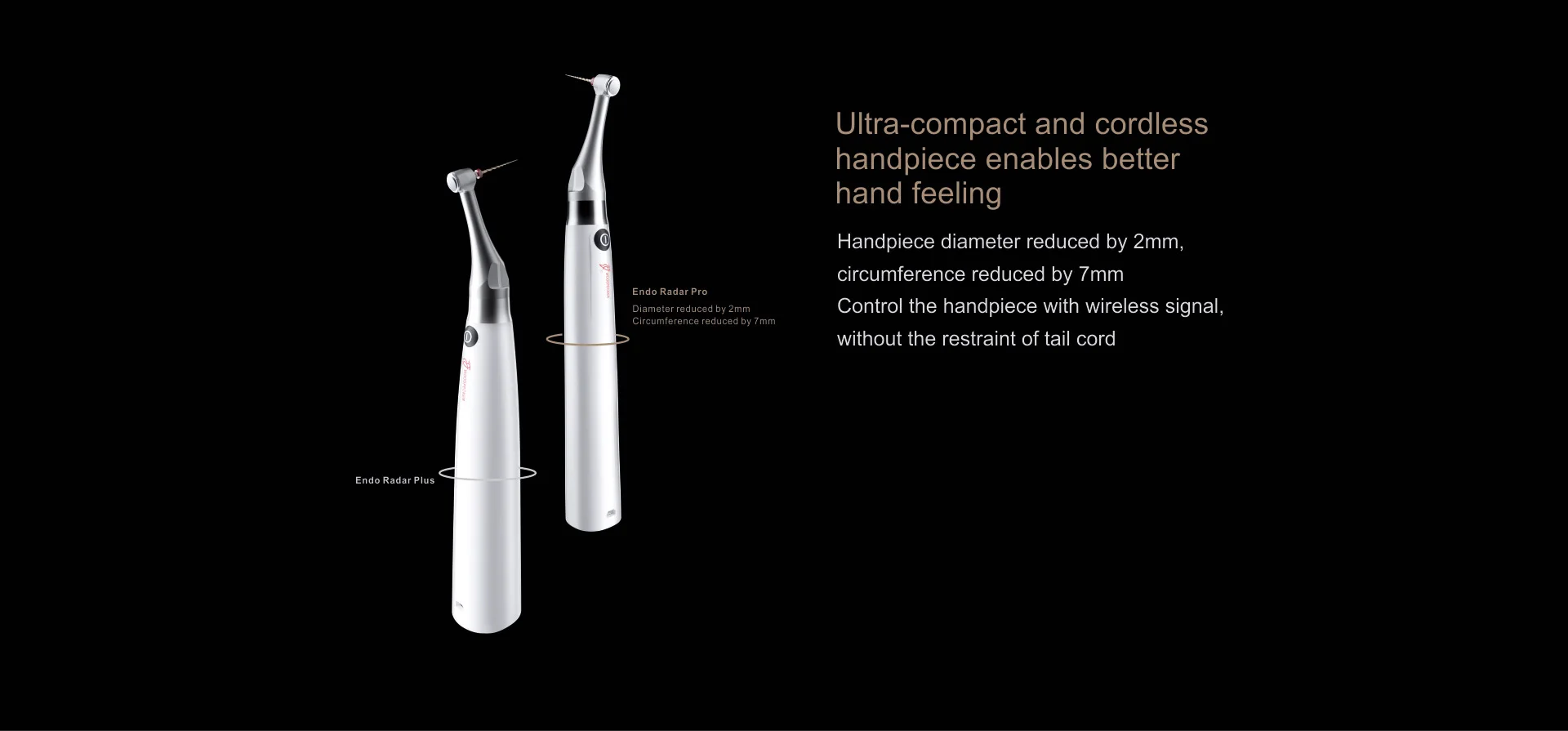

Ergonomic Ultra-Compact Wireless Handpiece
The redesigned slim handpiece cuts diameter by 2mm and circumference by 7mm for lighter, more secure grip. Fully wireless signal control removes restrictive tail cords, allowing unobstructed manipulation for posterior molar treatment and long-duration root canal operations.

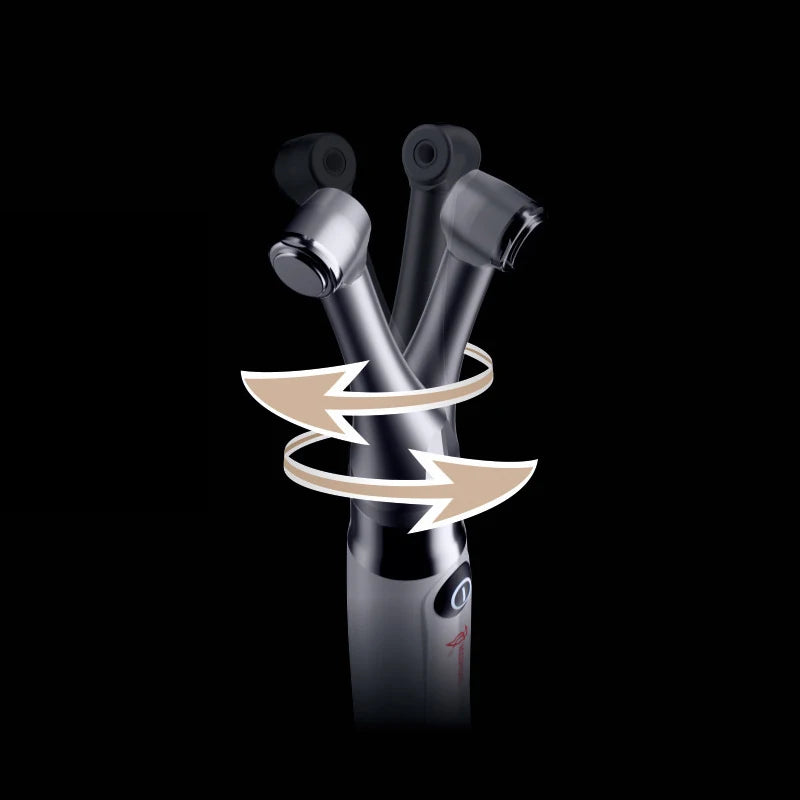

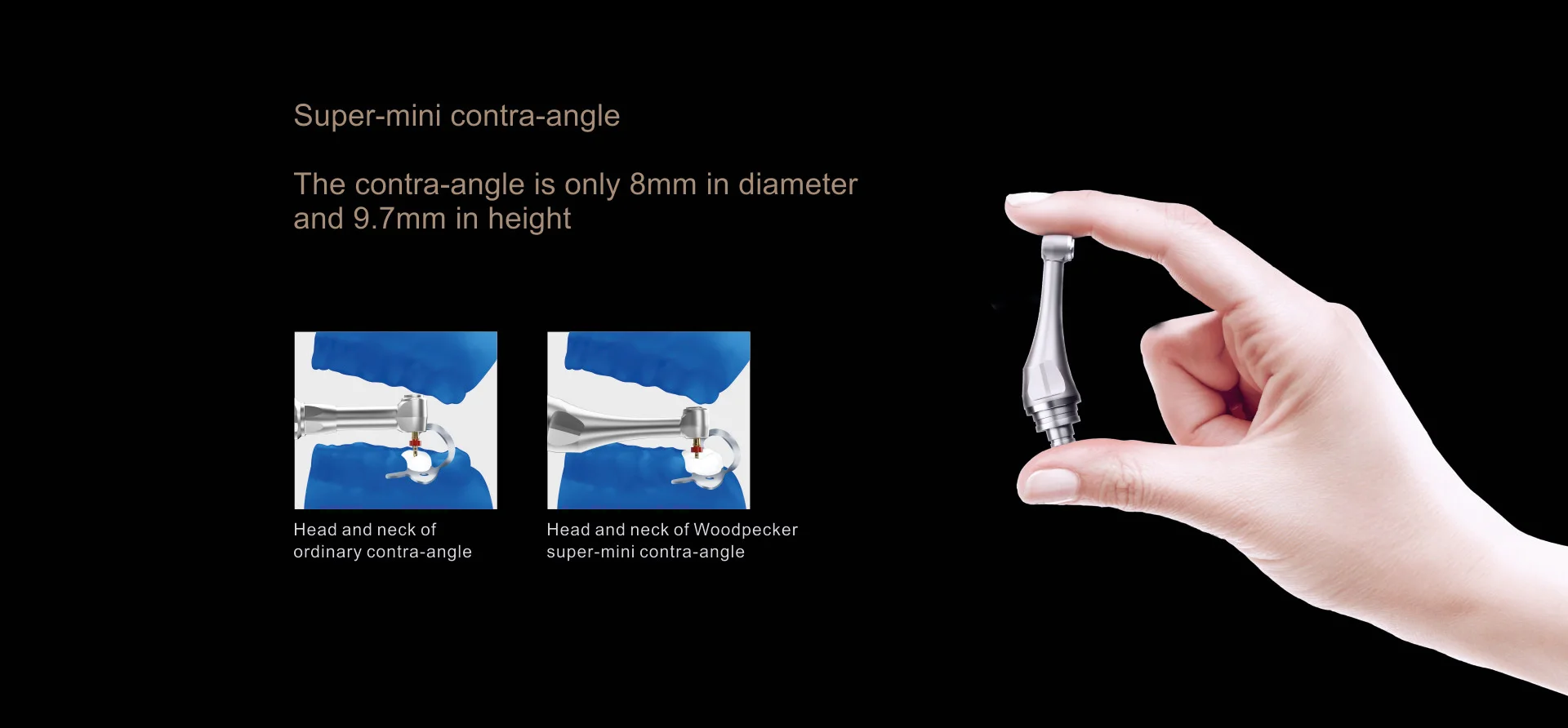

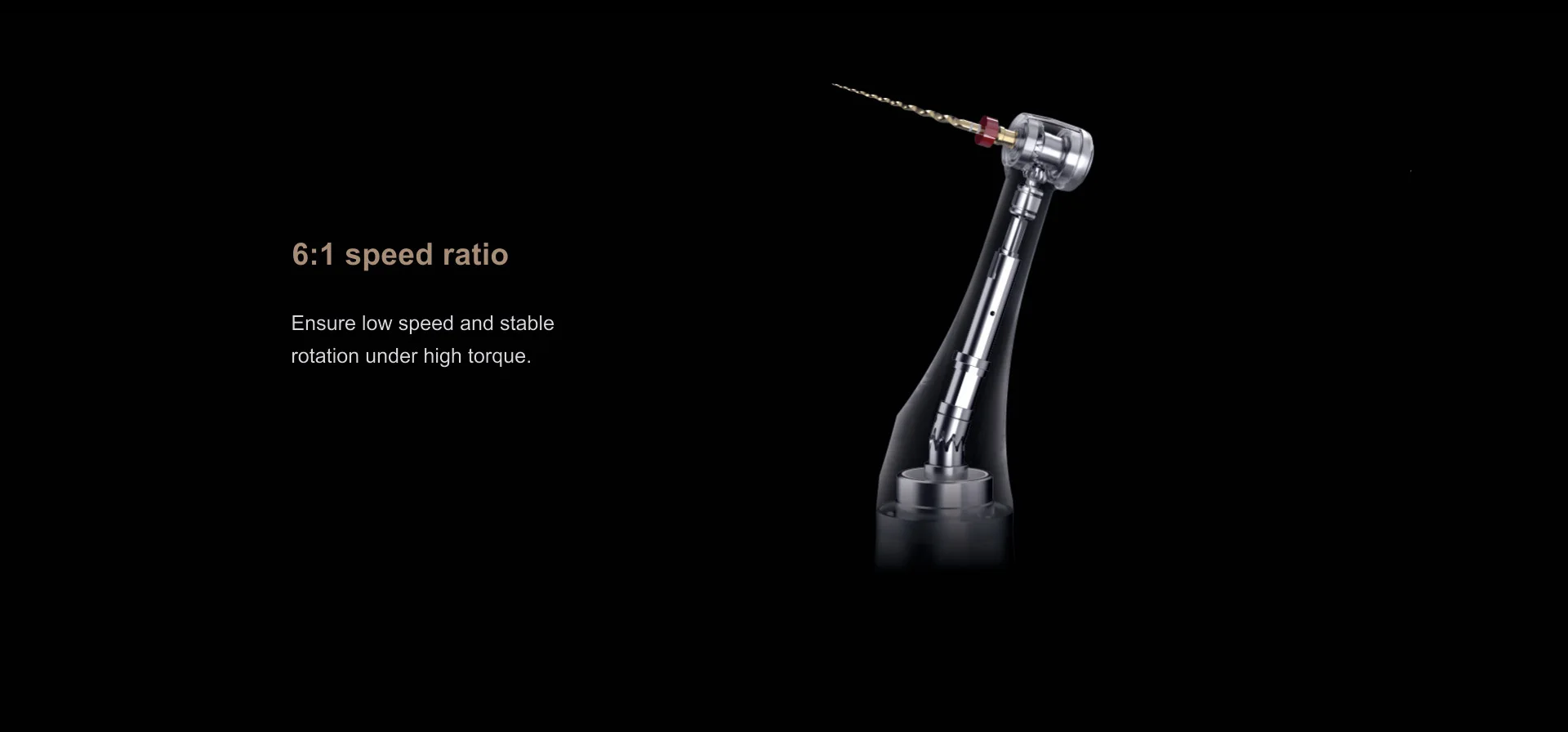

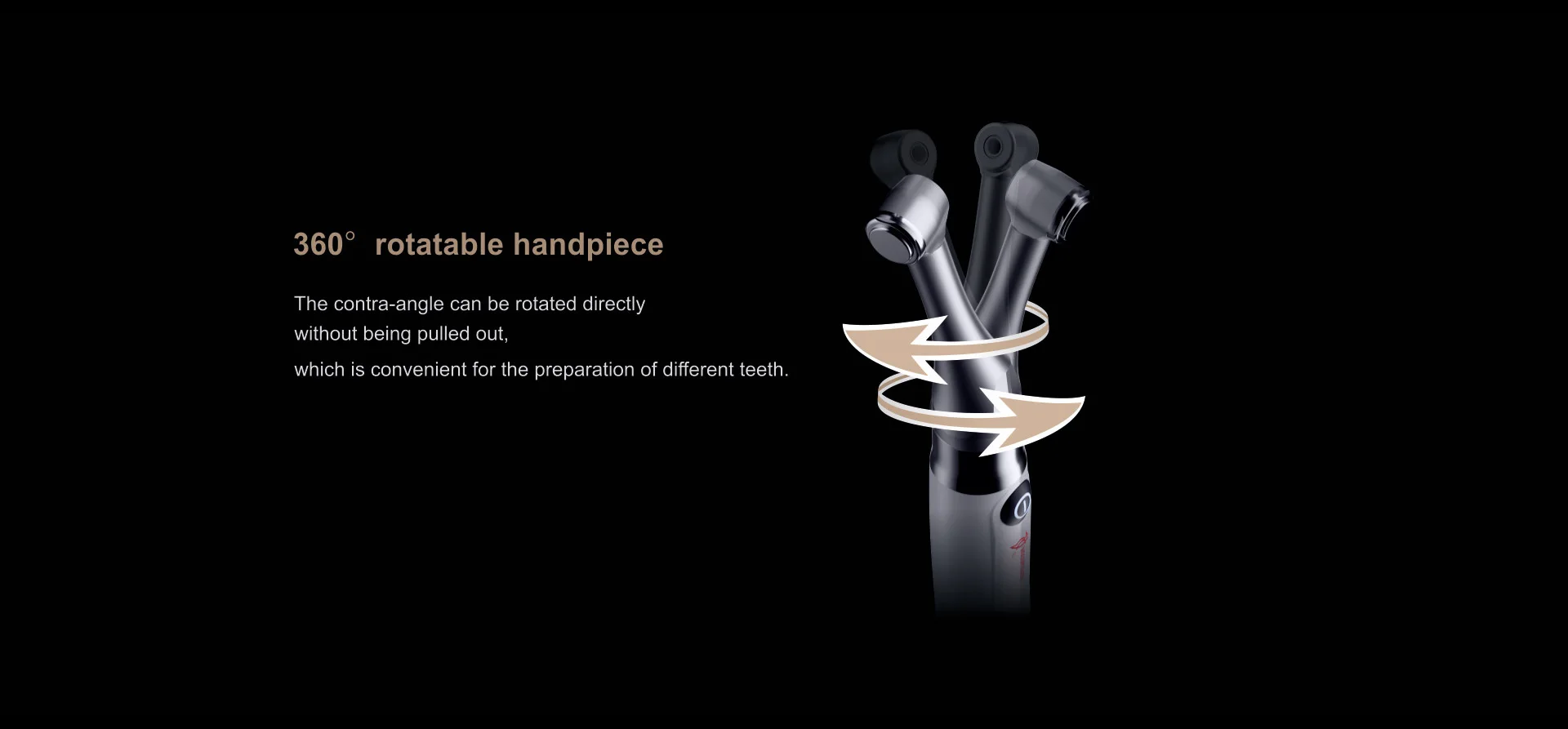

Mini 6:1 Ratio 360° Rotatable Contra-Angle Head
The contra-angle head measures only 8mm in diameter and 9.7mm in height to deliver unobstructed vision in tight oral cavities. Built on a stable 6:1 speed reduction ratio, it maintains low steady rotation under high torque loads. The entire head rotates 360 degrees without disassembly, easily adapting to anterior, premolar and posterior tooth access angles.

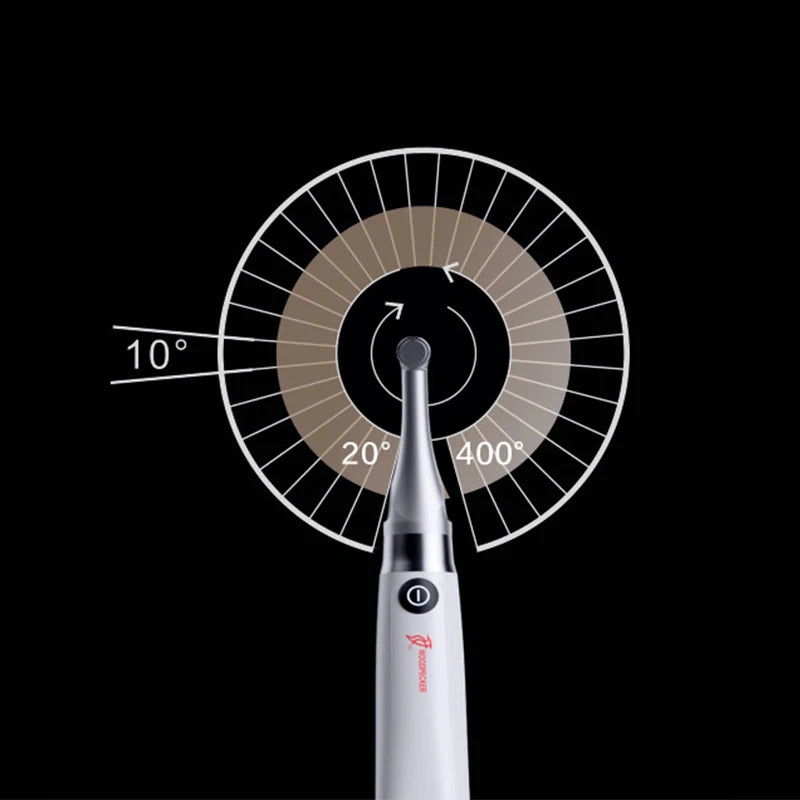

Adjustable Reciprocating ATR Mode For Safe Canal Shaping
- Reciprocating angle adjustable in 10° increments across a 20°–400° range for custom shaping resistance
- Exclusive ATR mode triggers automatic reciprocating motion once preset torque threshold is hit
- Precision angle control drastically lowers nickel-titanium file fracture risk while boosting canal preparation efficiency and safety

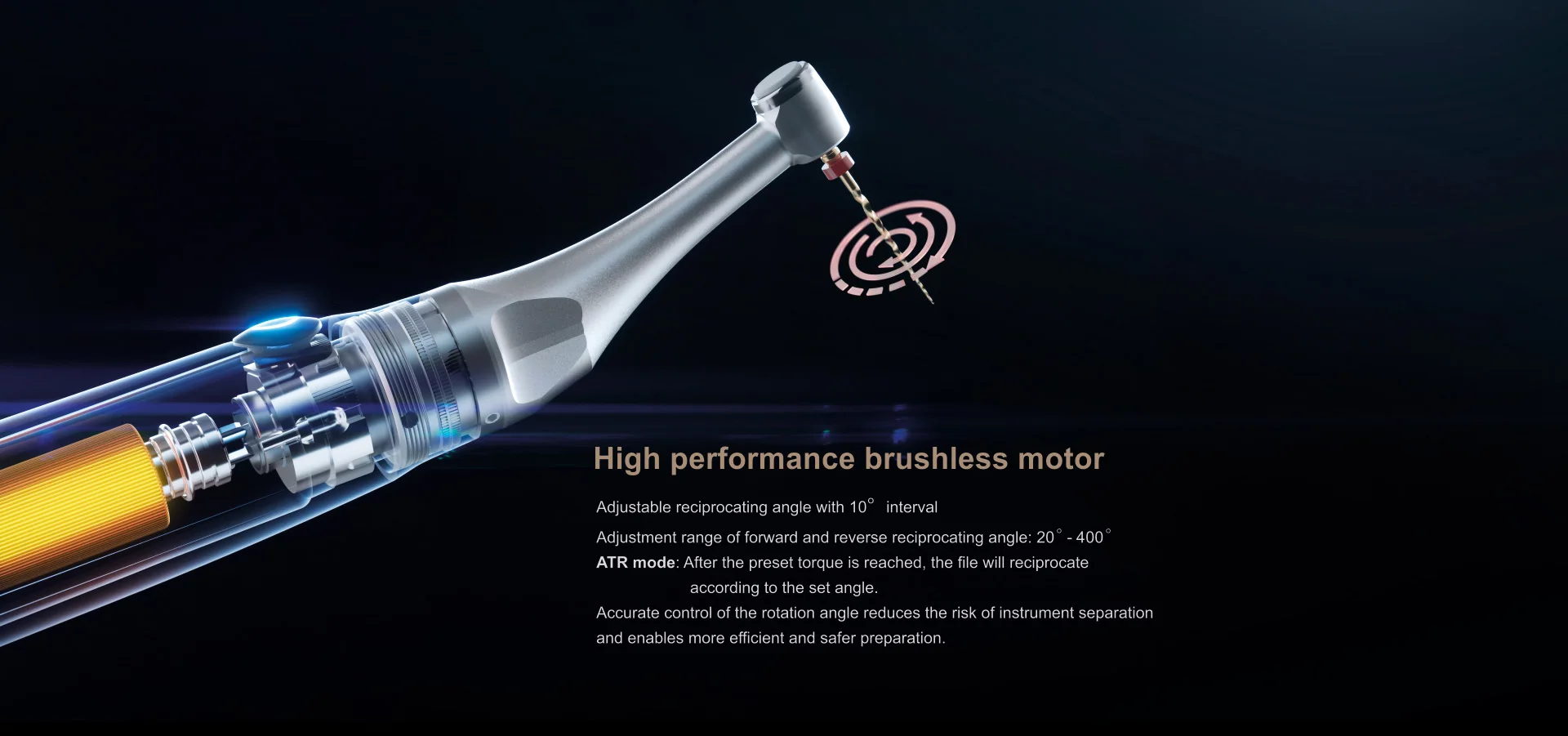

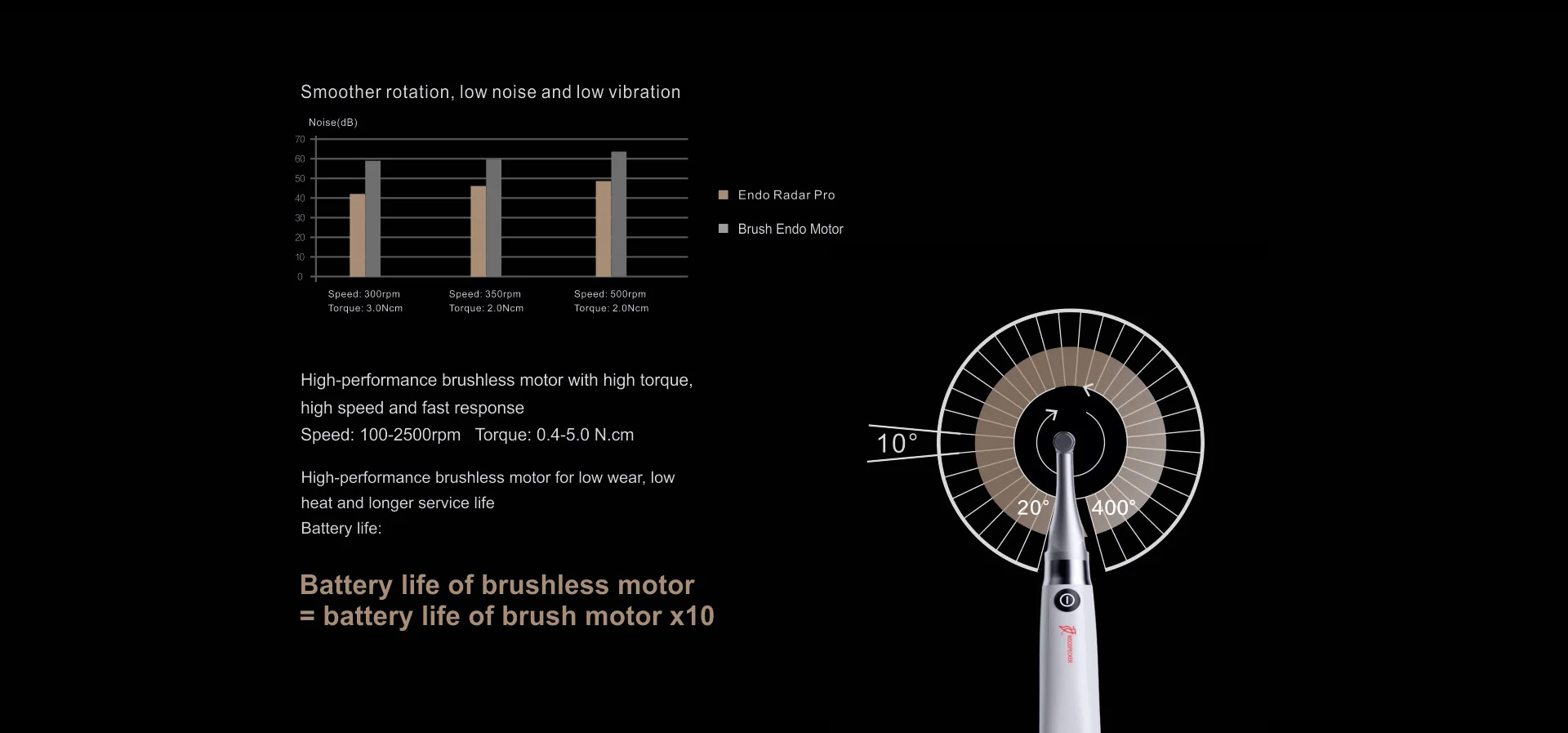

Long Service Life Brushless Motor Performance Parameters
The premium brushless motor delivers 10 times the service life of traditional brushed motors, featuring high torque, rapid response, minimal heat generation and low component wear.
| Parameter Item | Value |
|---|---|
| Adjustable Speed Range | 100 – 2500 RPM |
| Adjustable Torque Range | 0.4 – 5.0 N.cm |
| Reciprocating Angle Range | 20° – 400° (10° step adjustment) |
| Transmission Ratio | 6:1 |

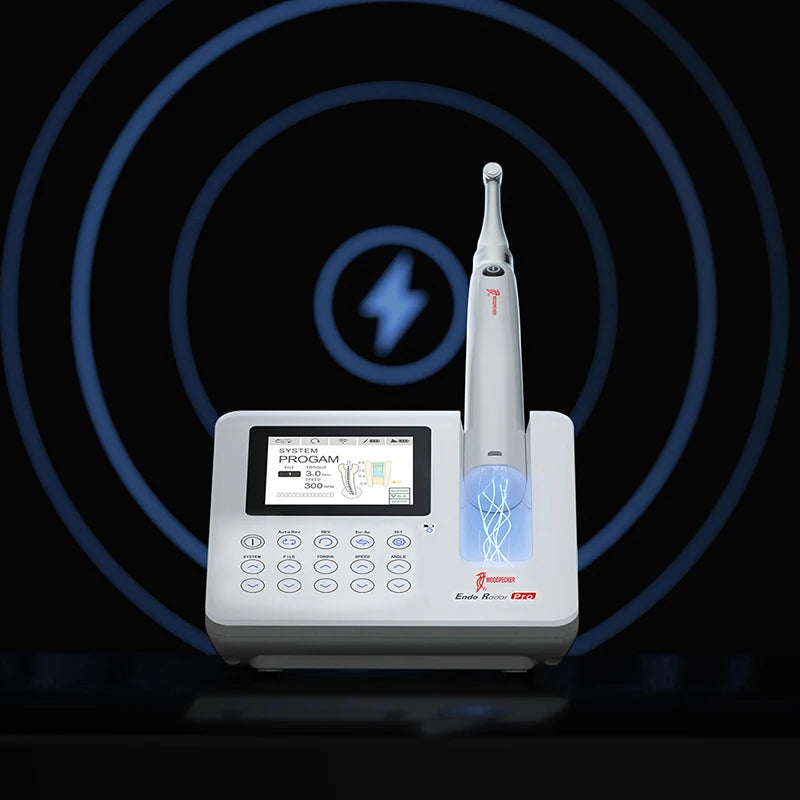

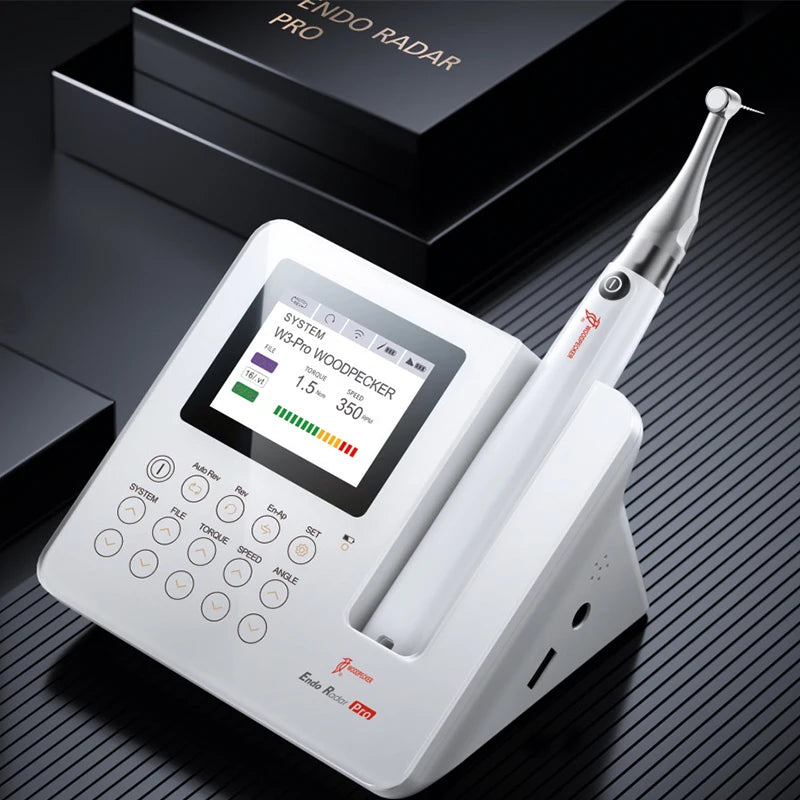

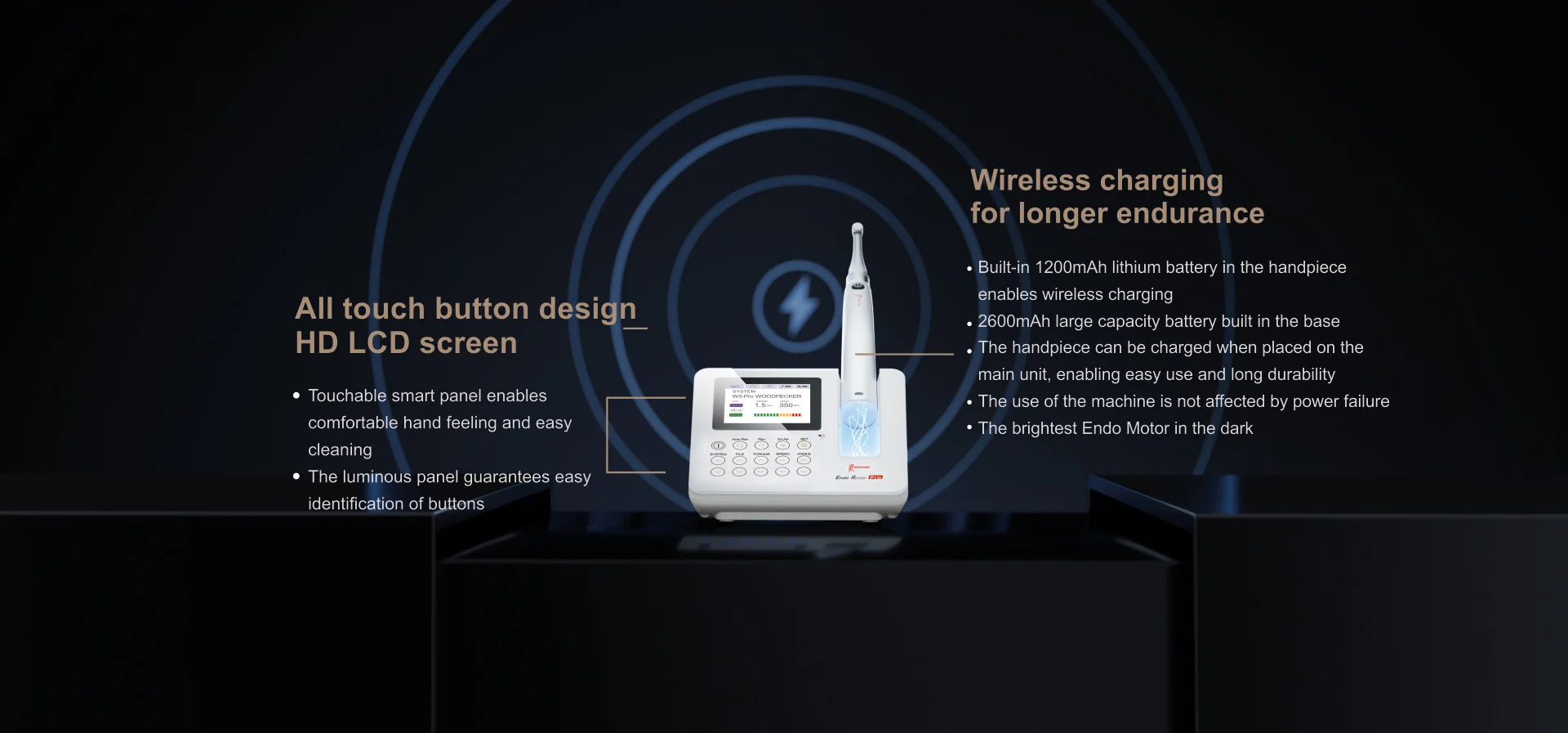

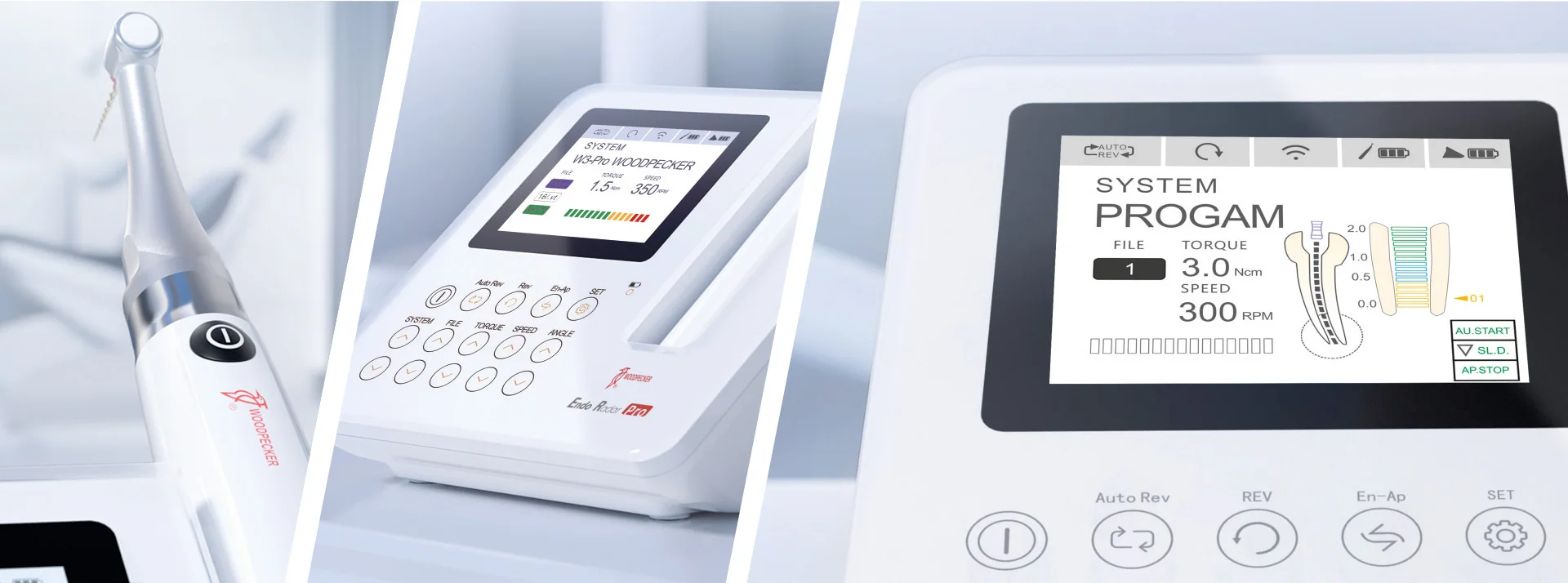

Touch HD Screen & Dual-Battery Wireless Charging System
- Full luminous HD touch panel for intuitive operation, easy surface disinfection and clear visibility in dark operating rooms
- Handpiece built-in 1200mAh lithium battery supporting wireless magnetic charging on the main base
- Base station equipped with large 2600mAh backup battery to maintain machine function during power outages
- Simple dock-and-charge design delivers all-day clinical endurance without cable restrictions

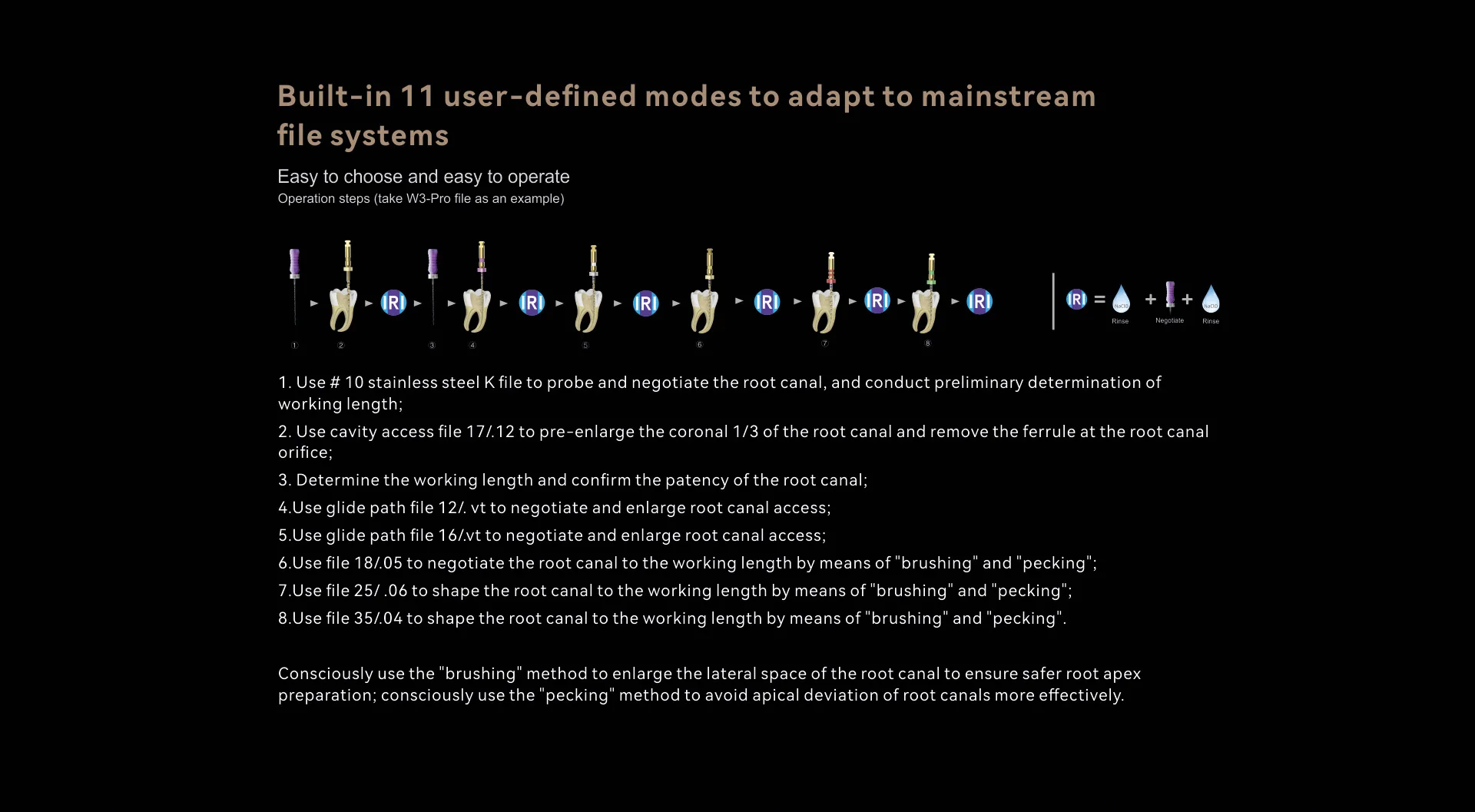

11 Custom Preset Modes Compatible With All Mainstream NiTi File Systems
Eleven factory pre-programmed user modes cover the full sequence of standard root canal preparation workflows to match all popular rotary and reciprocating file brands:
- 1. #10 K-file for canal negotiation and initial working length confirmation
- 2. 17/.12 orifice opener to pre-enlarge coronal third and remove canal ledges
- 3. Secondary patency verification and working length recheck
- 4. 12/.VT glide path file for smooth canal access enlargement
- 5. 16/.VT glide path file for full glide path refinement
- 6. 18/.05 shaping file using brushing and pecking motions to full working length
- 7. 25/.06 main shaping file for moderate canal taper creation
- 8. 35/.04 finishing shaping file for final apical refinement
- Professional technique tips: Brushing motion expands lateral canal space; pecking motion avoids apical transportation for safer minimal-injury shaping
Brand Background: Guilin Woodpecker Medical Instrument Co., LTD.
Woodpecker is a leading full-line dental device manufacturer producing endo motors, apex locators, ultrasonic endo activators, obturation systems, air polishers, ultrasonic scalers and diode laser equipment. Every product undergoes strict quality testing and complies with international medical device standards for stable, reliable daily use in global dental practices.
