Product Details
Ai-Motor(T-mode)
Main features
- Safe ledge by passing
- Customized reciprocating angle
- Mini contra-angle
- Integrated apex locator mode delivers safety protection
- High performance brushless motor
Basic technical parameters
- Lithium battery in motor handpiece: 3.7V /2000mAh
- Power adapter (Model: ADS-6AM-06N 05050/UE08WCP- 050100SPA)
- Input: ~100V-240V 50Hz/60Hz 0.4A Max
- Output: 5.0V 1A
- Torque rang: 0.4Ncm-5.0Ncm(4mNm ~ 50mNm)
- Speed rang: 100rpm~2500rpm
- Received DDS in 1993.
- Completed residency at Tokyo Medical Dental University in 1995, where he also received PhD from the Department of Endodontics.
- Published several articles in peer-reviewed journals nationally and internationally.
- Authored in several chapters in textbooks including the 11th and the 12th edition of "Pathways of the Pulp"and "Endodontics: the 6th edition of Principles and Practice".
- Lectured nationally and internationally and was exposed twice on National TV for modern endodontics.

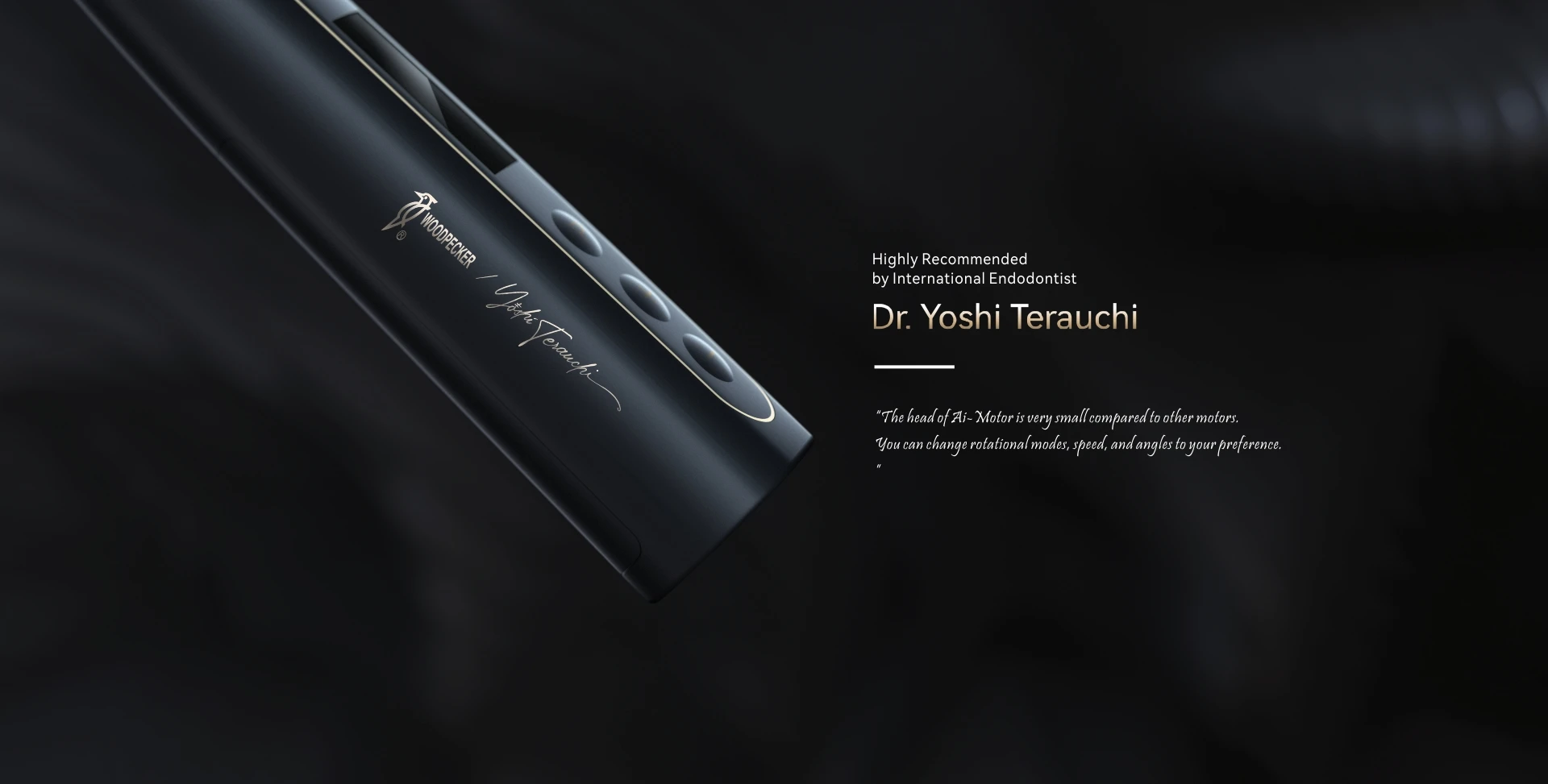

Highly Recommended by International Endodontist
Dr.Yoshi Terauchi--
The head of Ai-Motor is very smallcompared to other motors.You can change roational modes, speed, andangles toyourpreference.

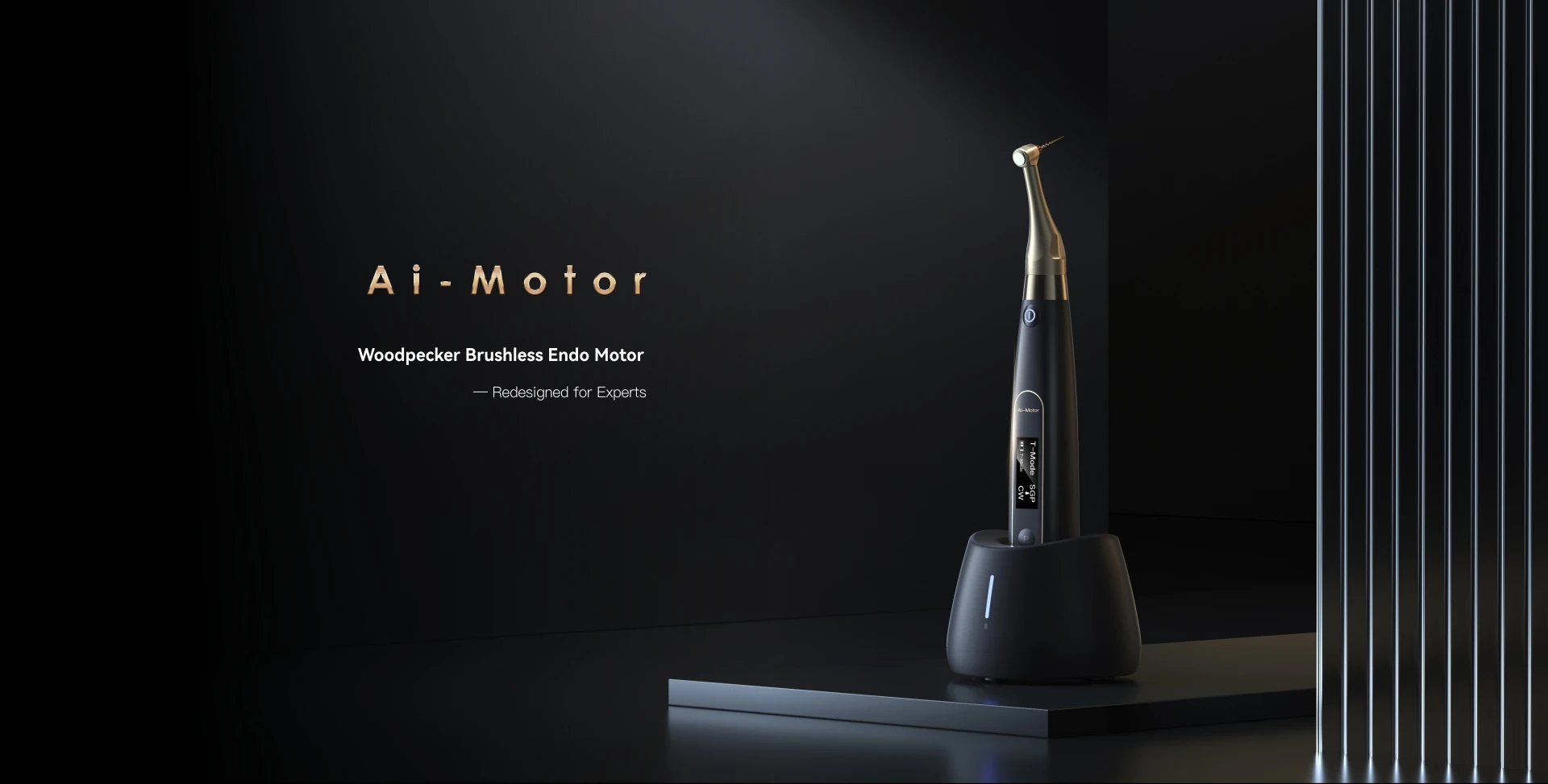

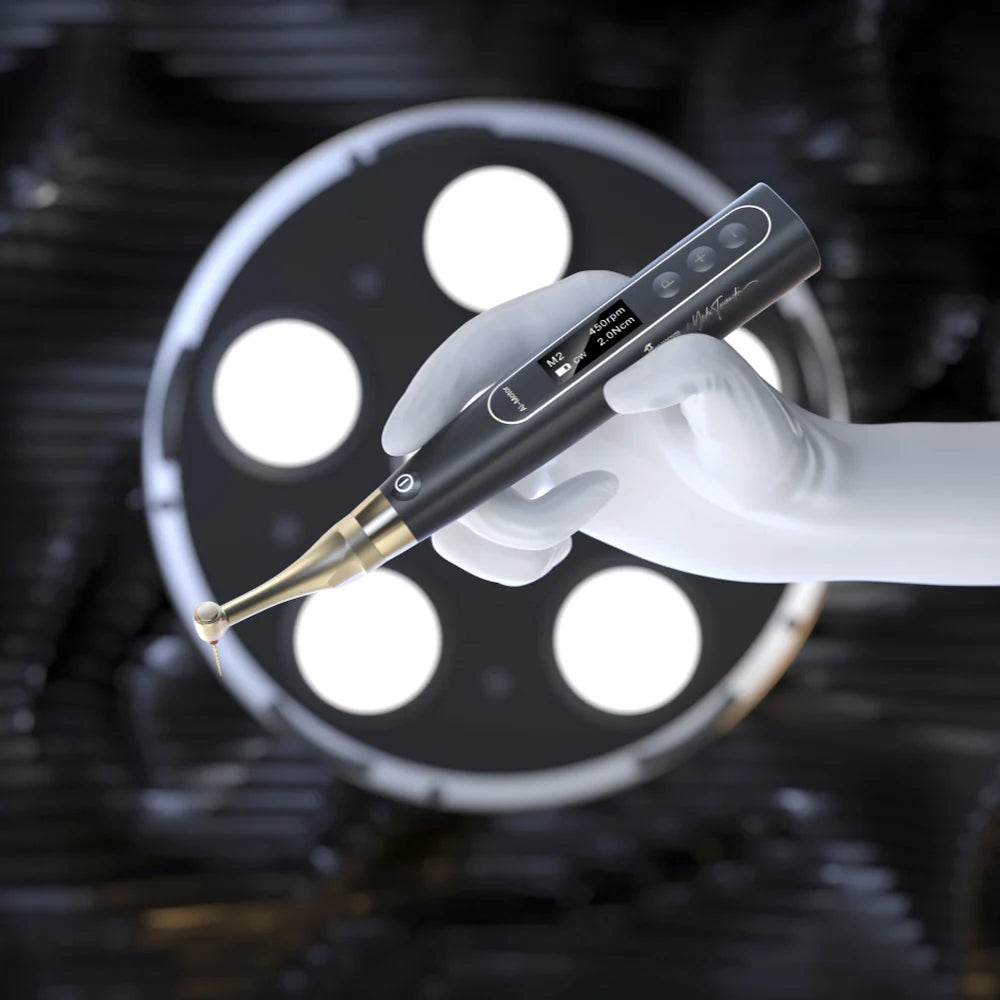

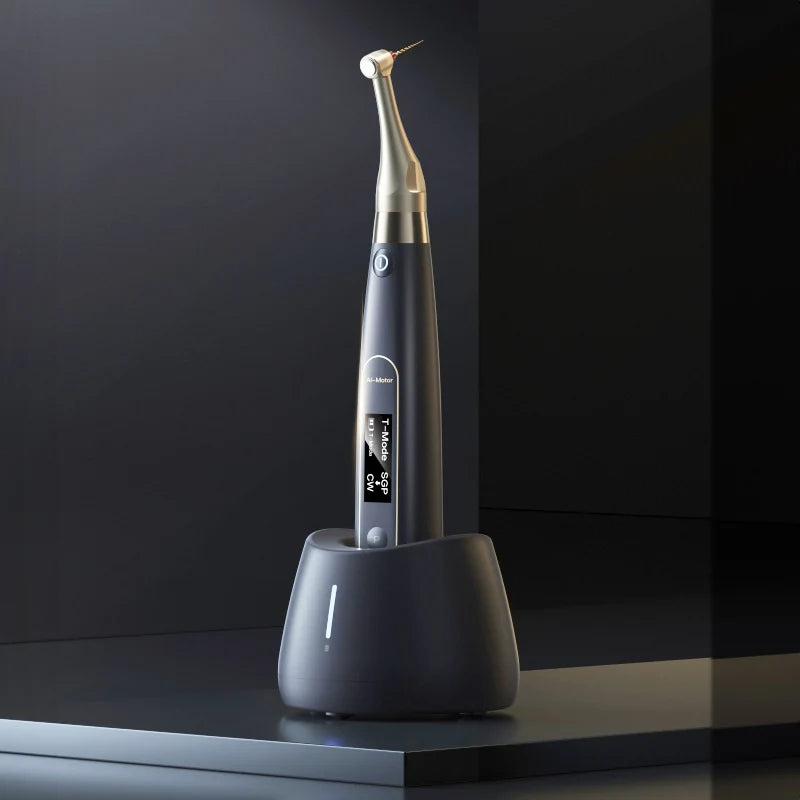

Ai-Motor
Woodpecker Brushless Endo Motor
--Redesigned for Experts

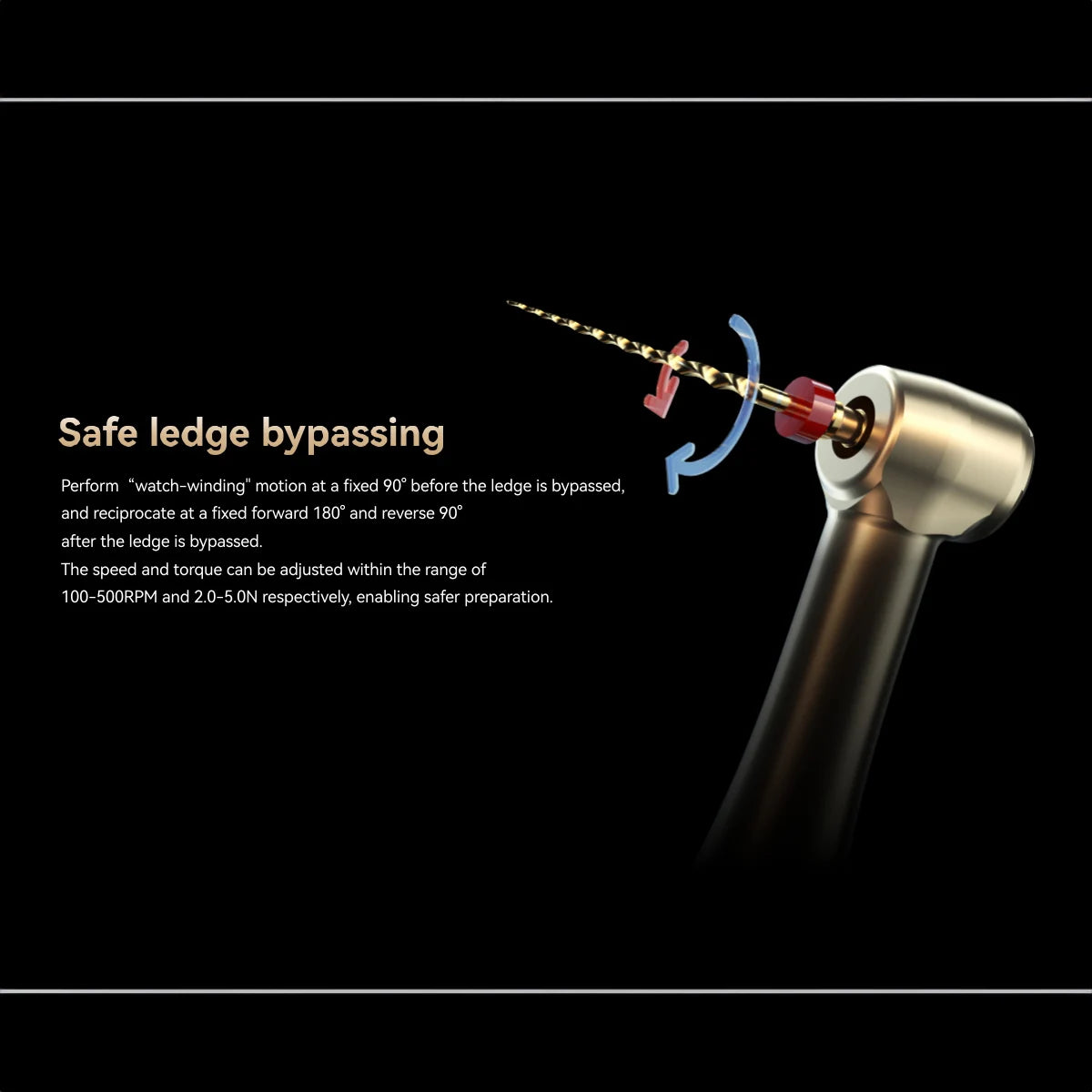

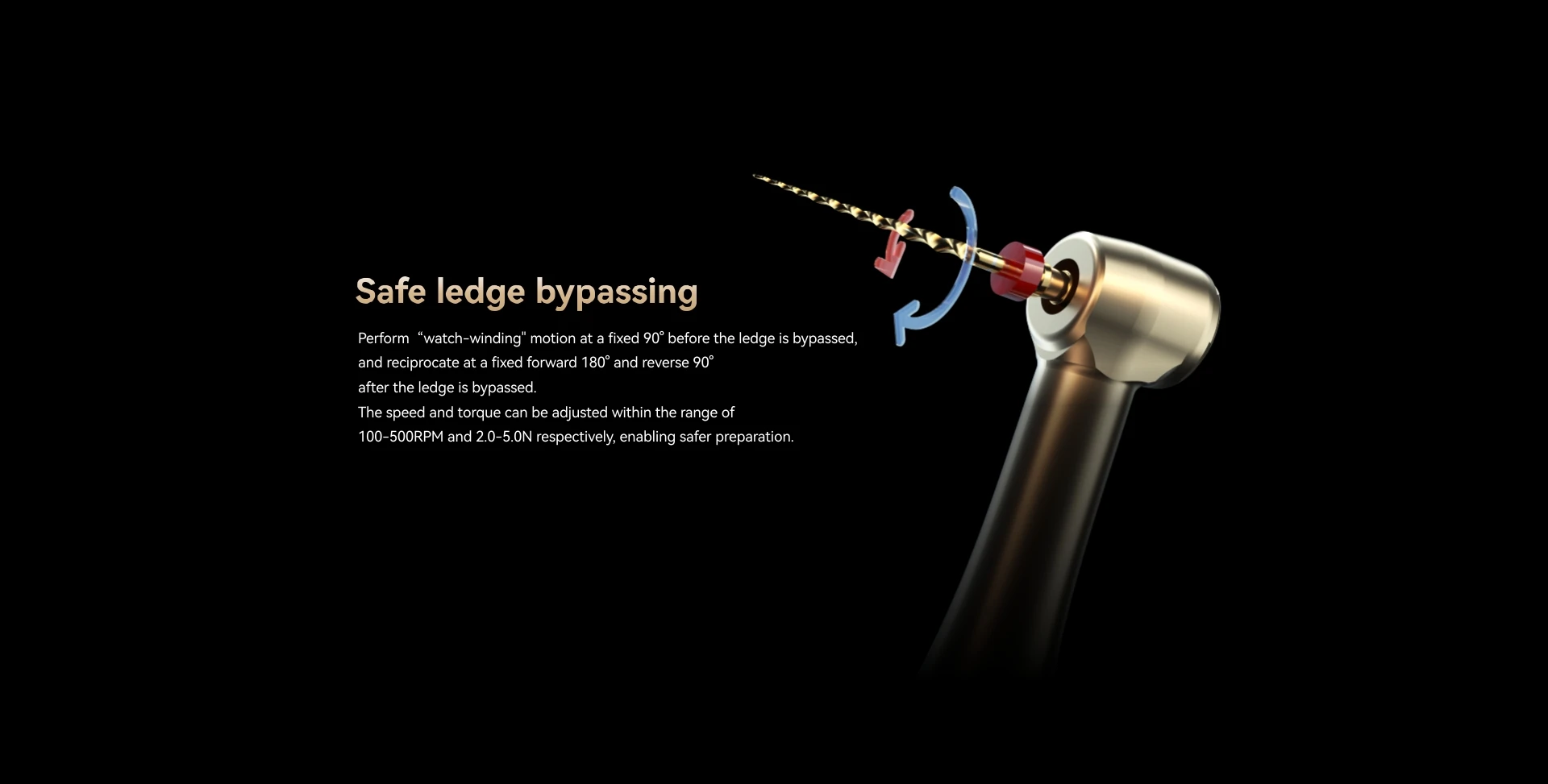

Safe ledge bypassing
- Perform "watch-winding"motion at a fixed 90 before the ledge is bypassed,and reciprocate at a fixed forward 180° and reverse 90° after the ledge is bypassed.
- The speed and torque can be adjusted within the range of 100-500RPM and 2.0-5.0N respectively,enabling safer preparation.

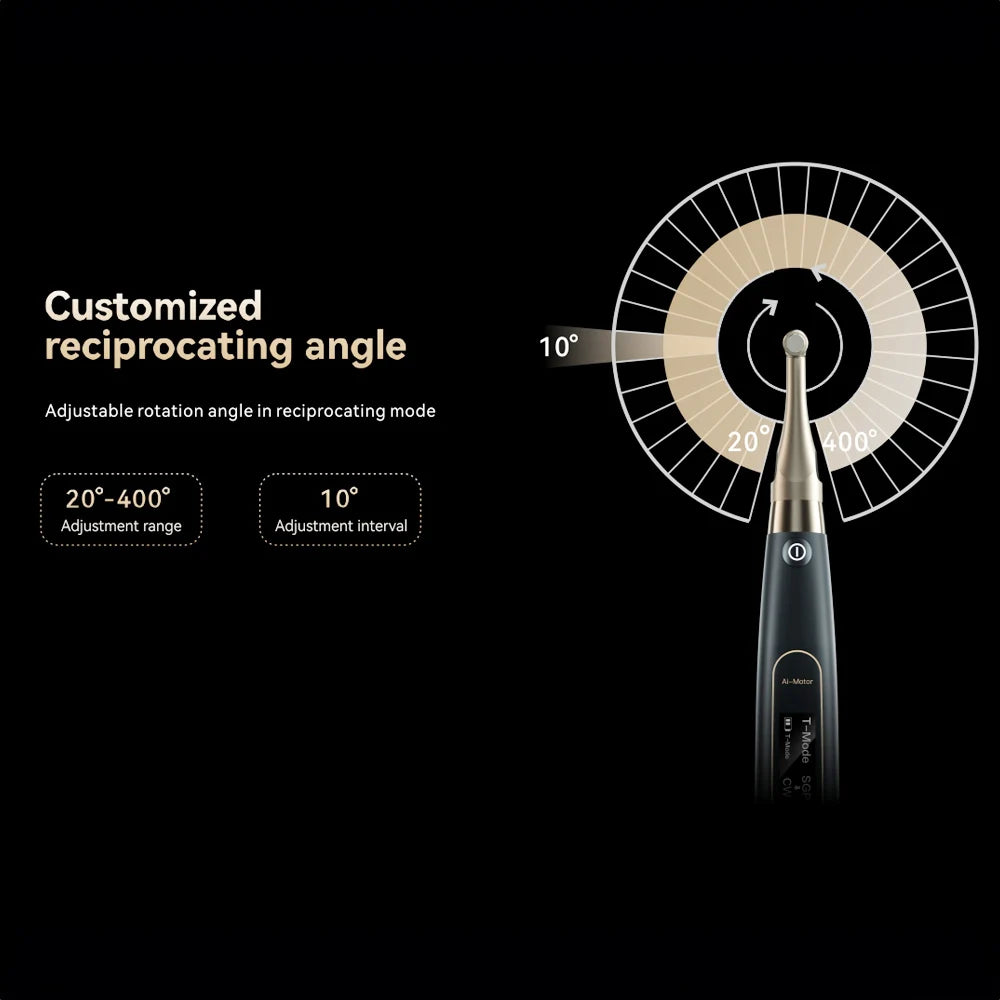

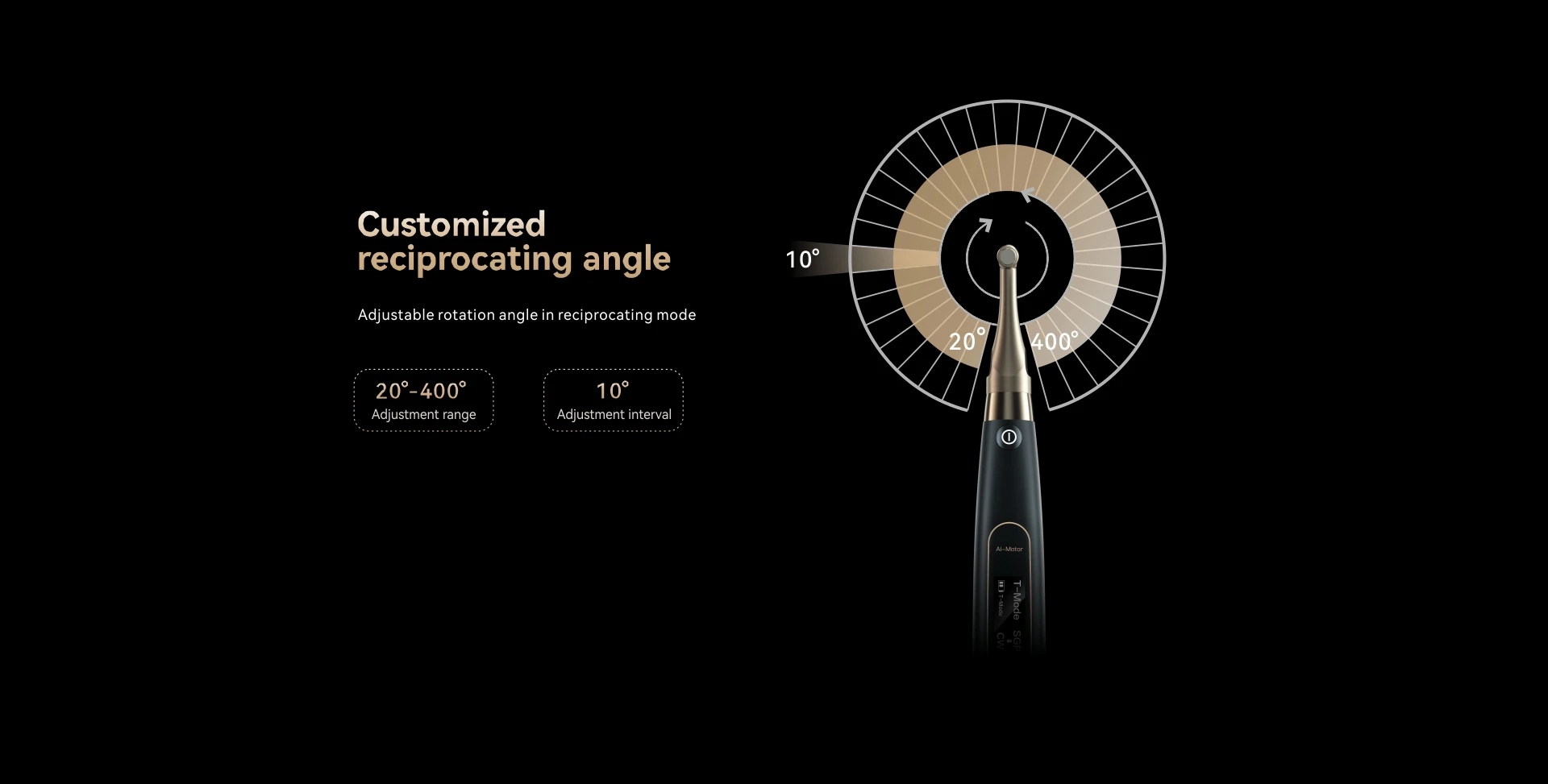

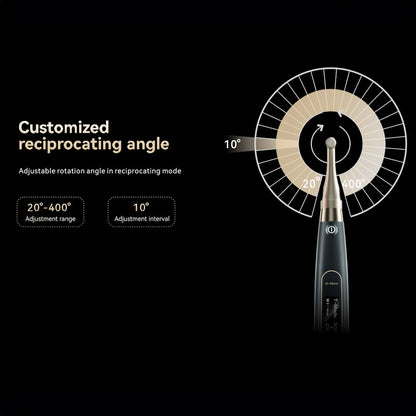

Customized reciprocating angle
Adjustable rotation angle in reciprocating mode
- adjustment range:20°-400°
- adjustment interval:10°

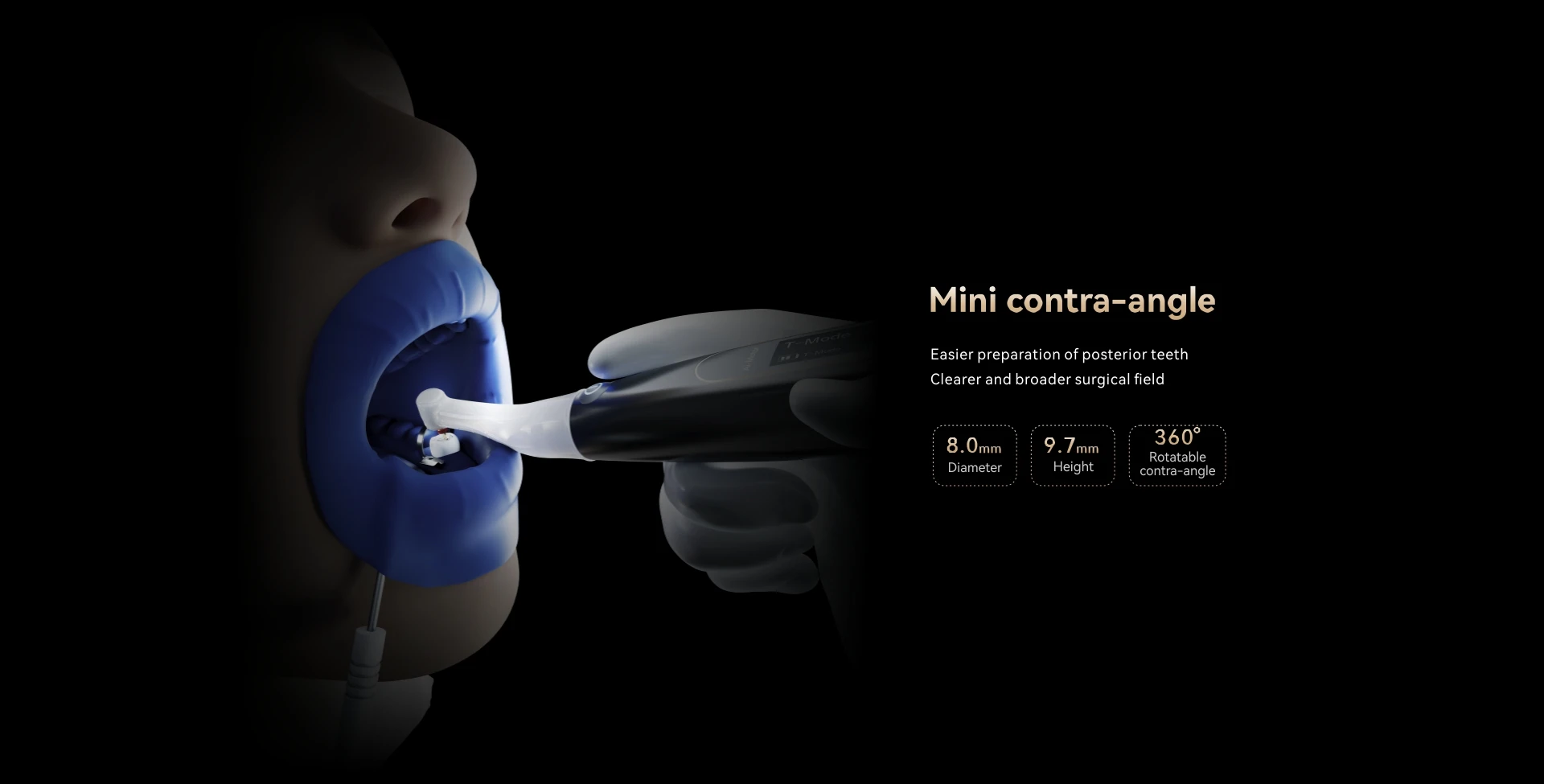

Mini contra-angle
- Easier preparation of posterior teeth
- Clearer and broader surgical field
- diameter:8.0mm
- height:9.7mm
- rotatable contra-angle:360°

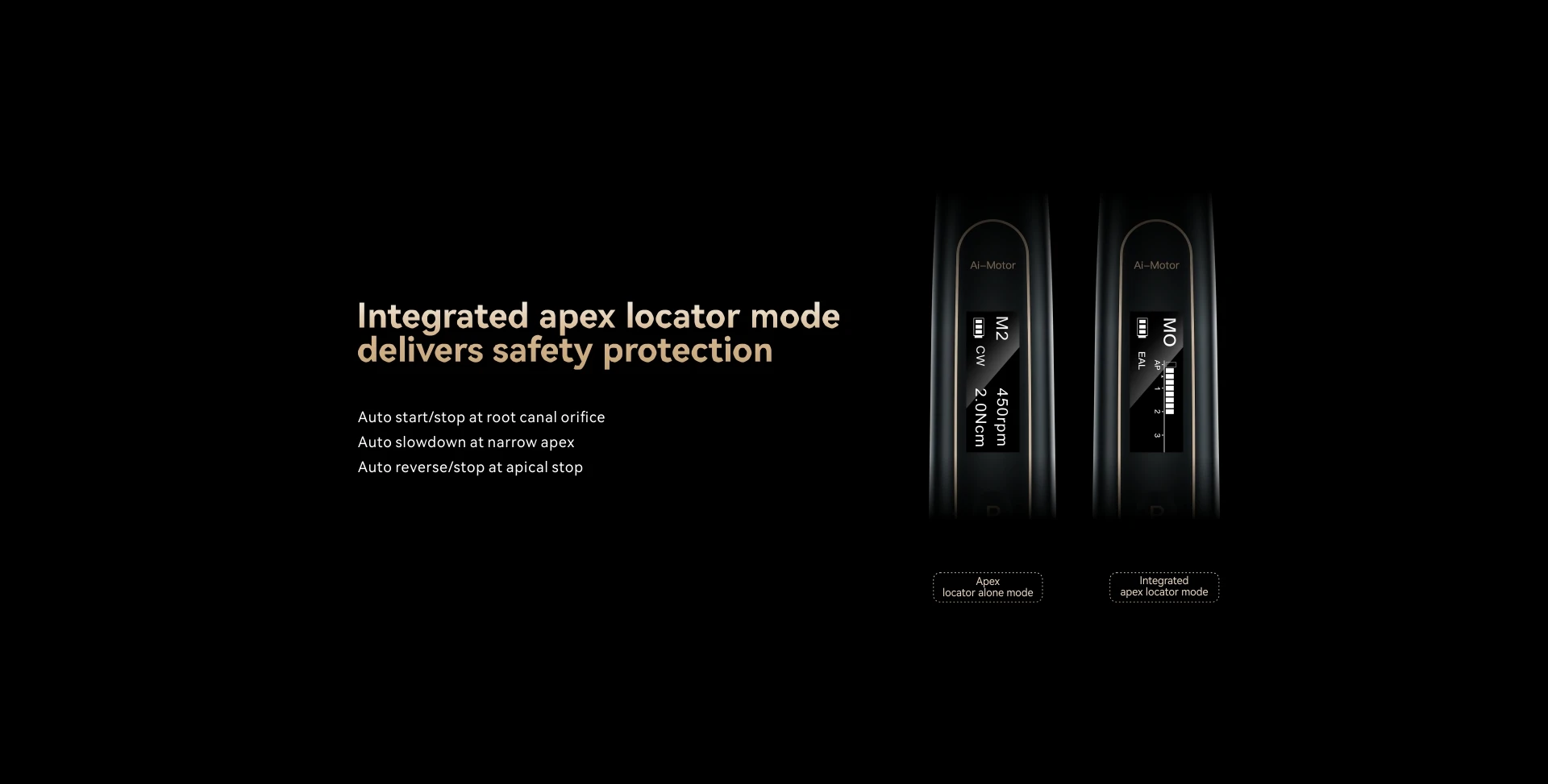

Integrated apex locator mode delivers safety protection
- Auto start/stop at root canal orifice
- Auto slowdown at narrow apex
- Auto reverse/stop at apical stop

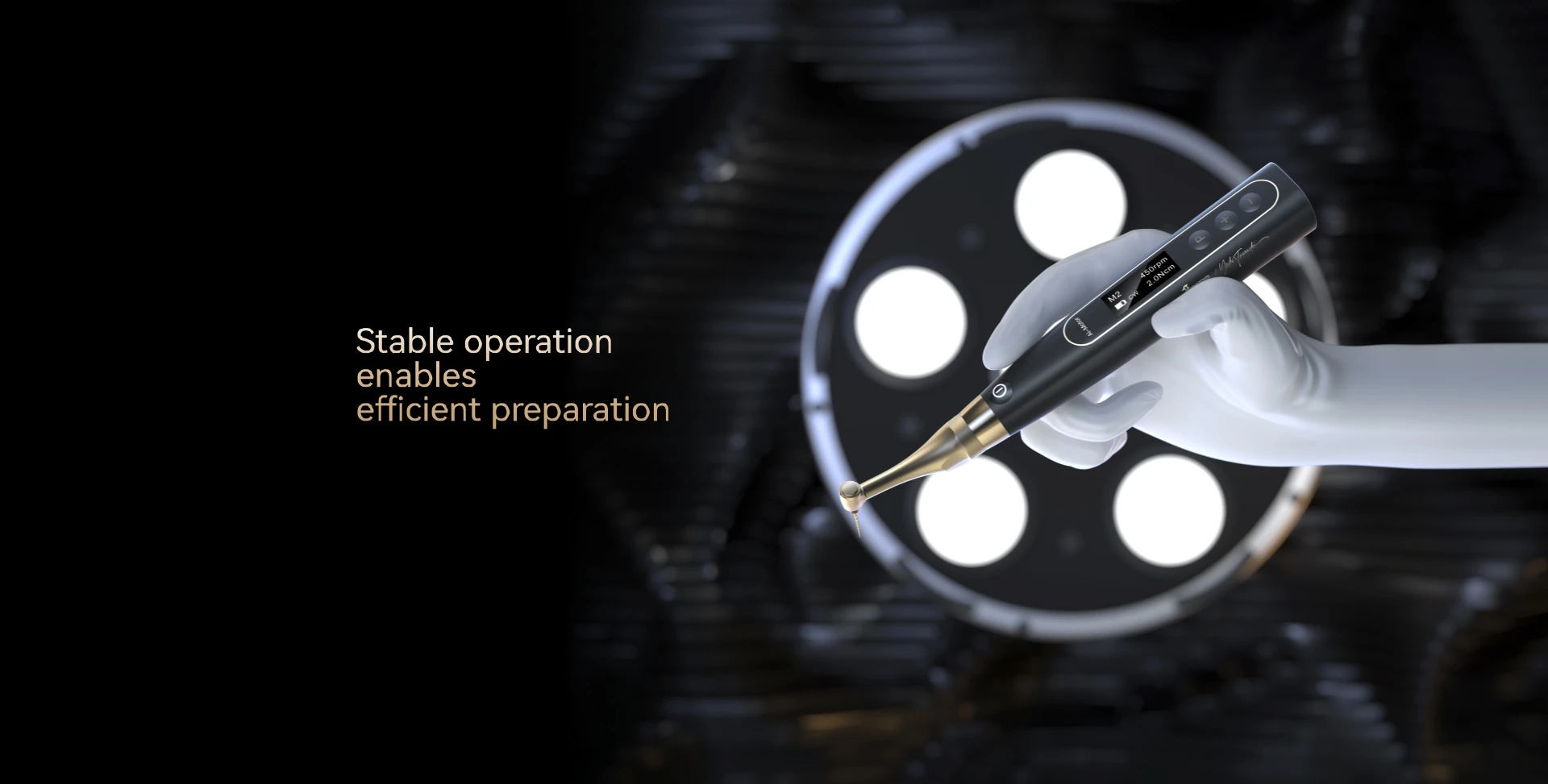

Stable operation enables efficient preparation

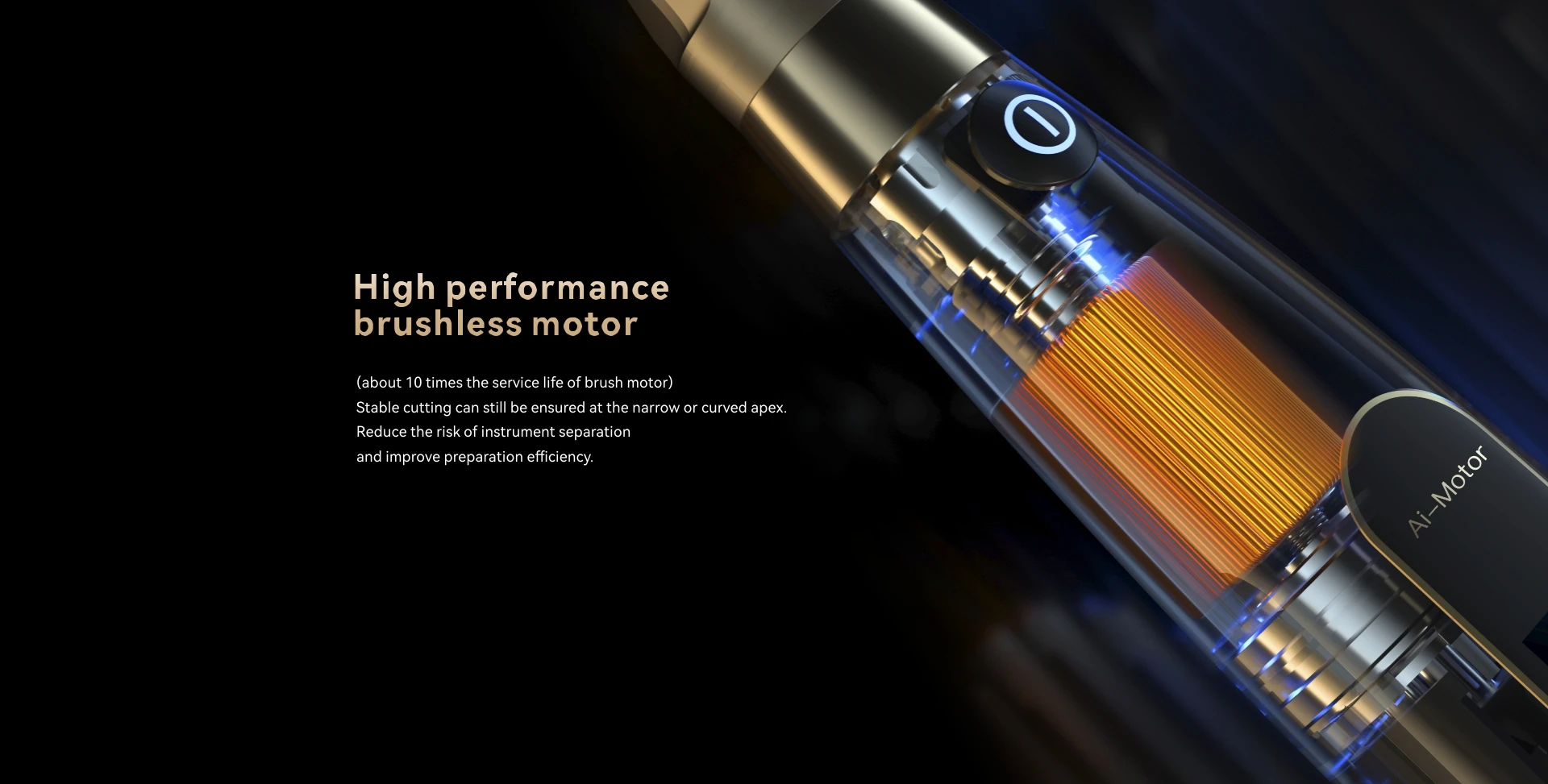

High performance brushless motor
- Stable cutting can still be ensured at the narrow or curved apex.
- Reduce the risk of instrument separation and improve preparation efficiency.

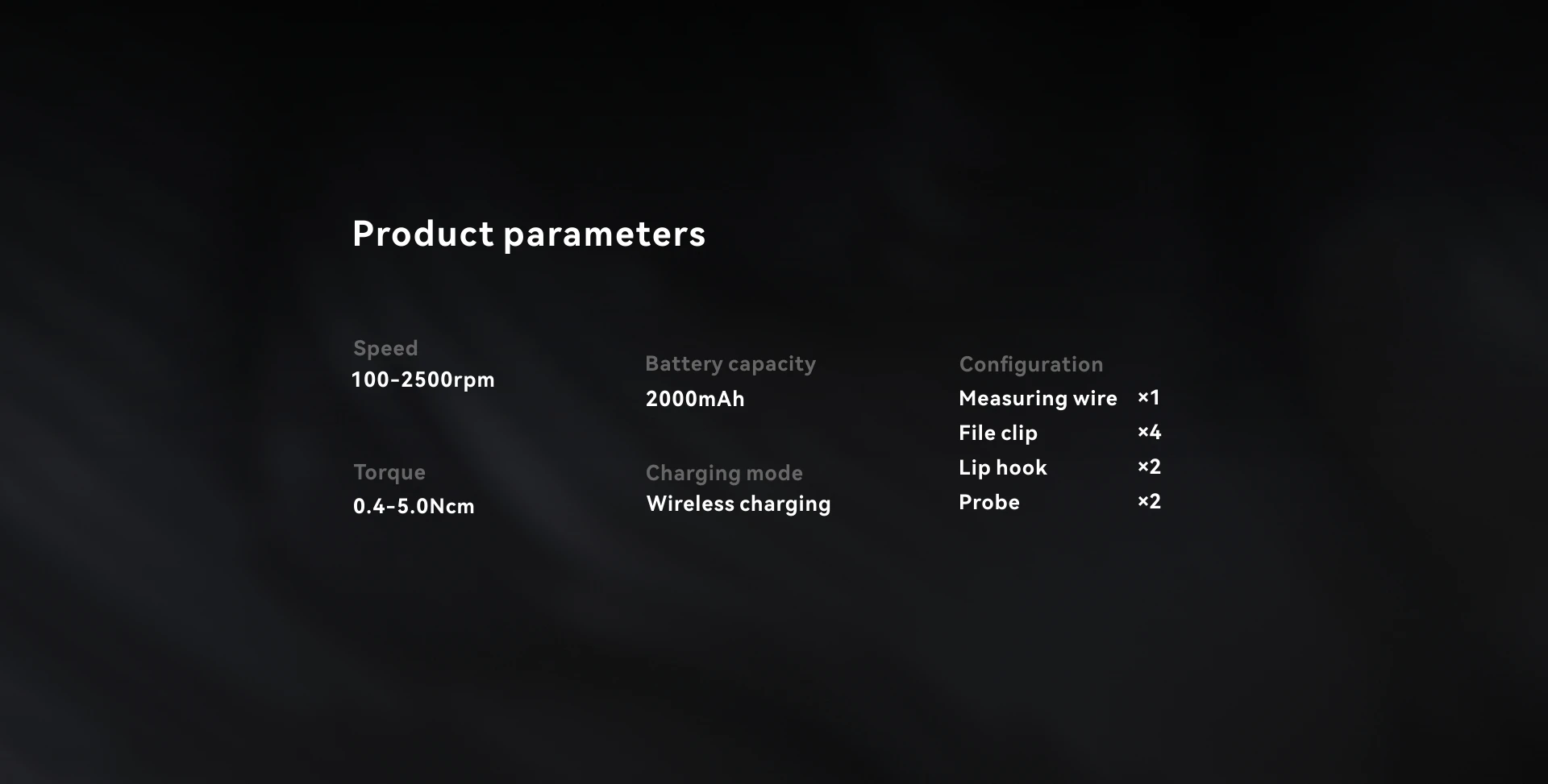

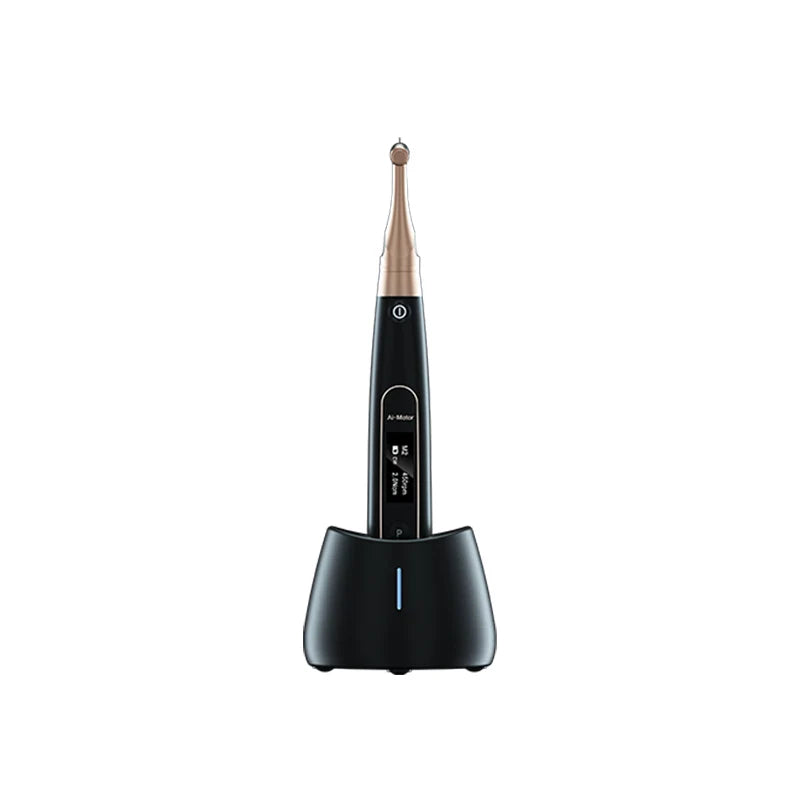

Product parameters
- Speed: 100-2500rpm
- Torque: 0.4-5.0Ncm
- Battery capacity: 2000mAh
- Charging mode: Wireless charging
Configuration:
- Measuring wire x1
- File clip x4
- Lip hook x2
- Probe x2
