Ultra X Cordless Ultrasonic Activator
dental ultrasonic activator, cordless endo ultrasonic device, root canal ultrasonic irrigator, endodontic ultrasonic activation unit, autoclavable ultrasonic tips for root canal

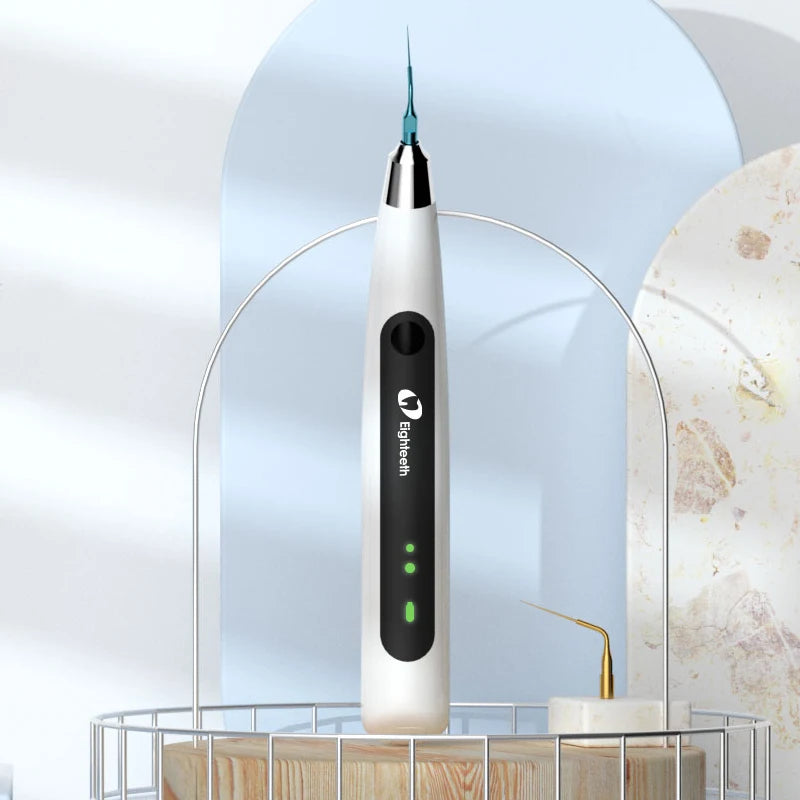

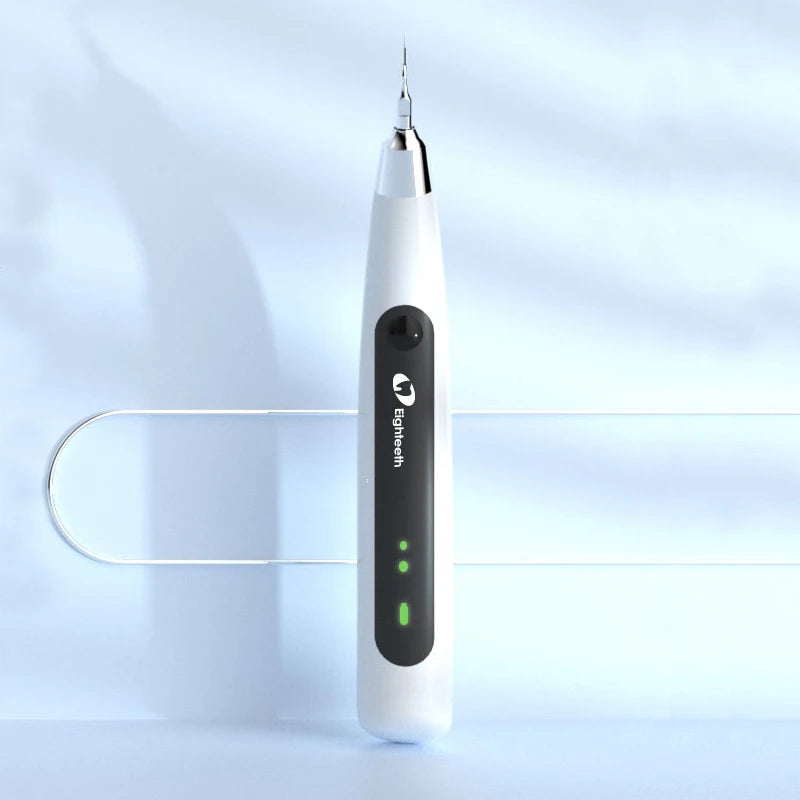

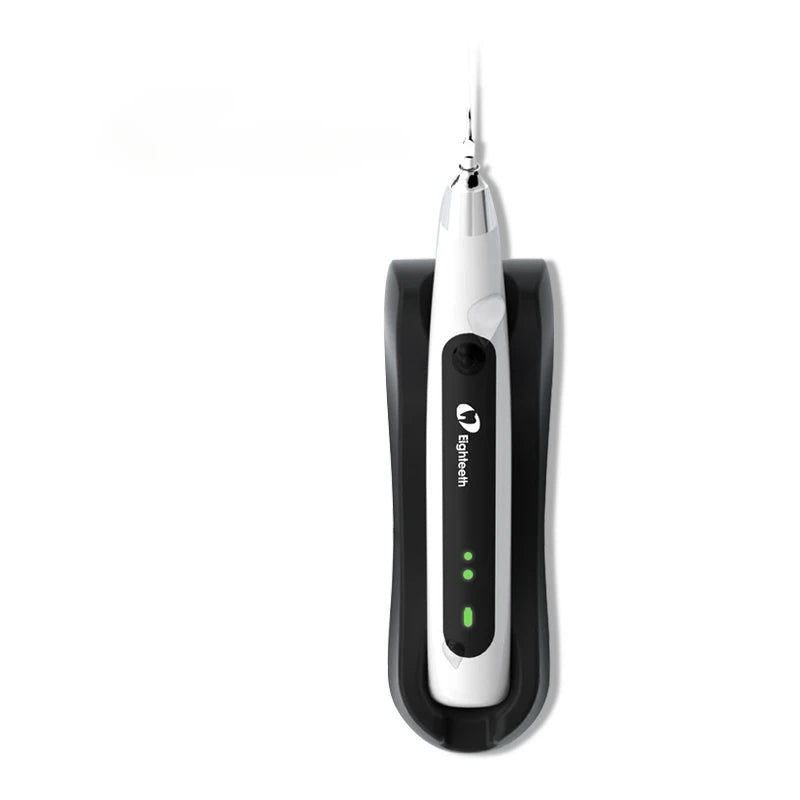

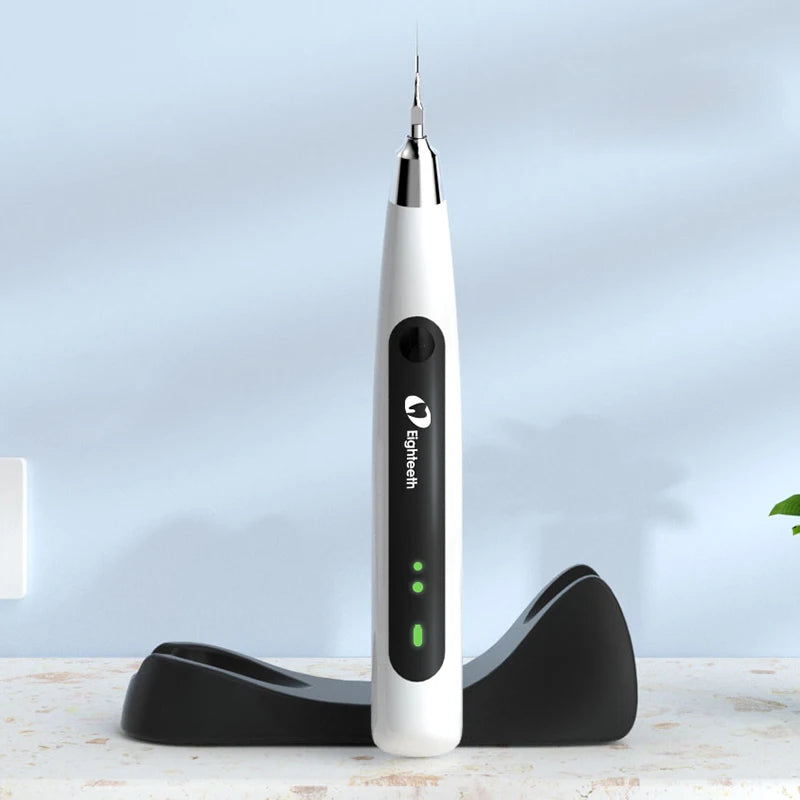

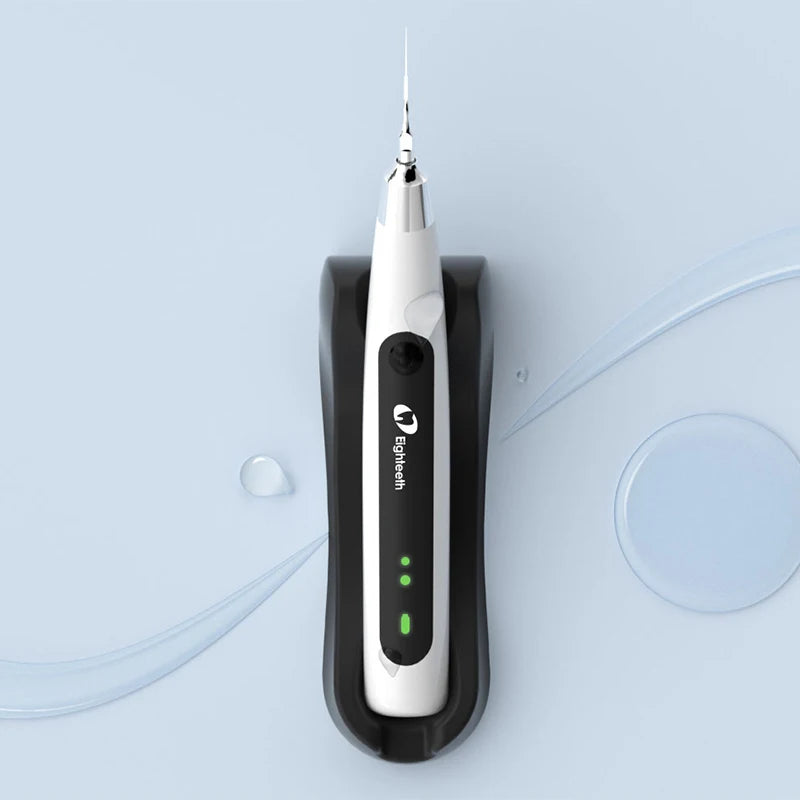

Ultra X is a professional cordless ultrasonic activator developed by Eighteeth for clinical endodontic treatment.

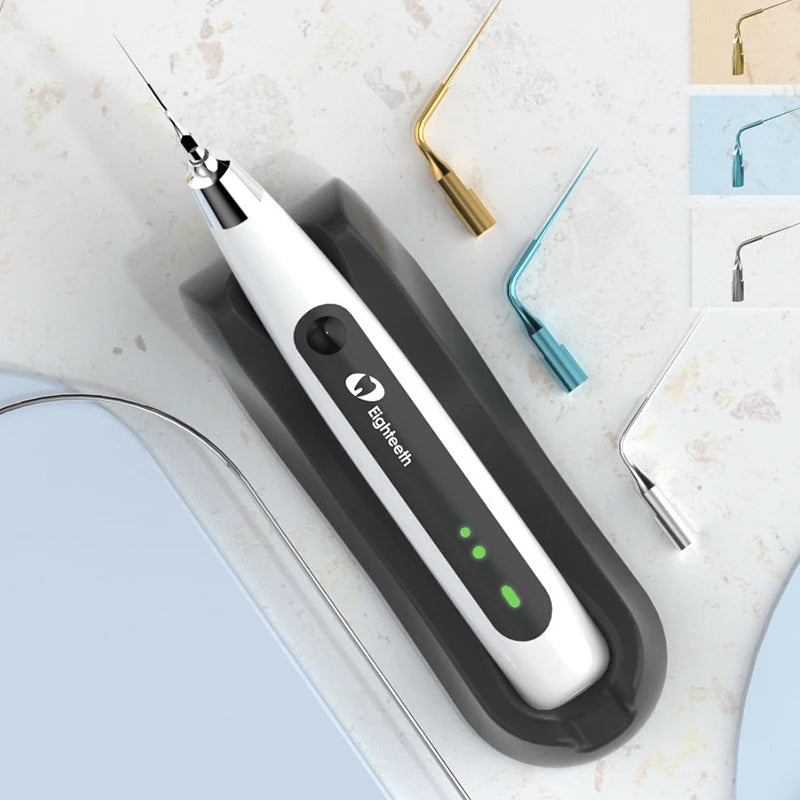

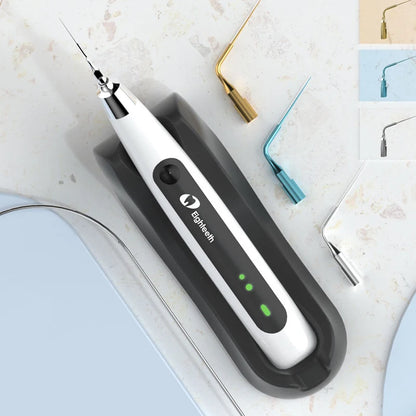

Multiple Autoclavable Tip Options
We supply a full range of smooth surface SSS autoclavable tips with different performance characteristics:
- X Gold: Super Powerful
- X Blue: Flexible
- X Silver: Soft & Flexible (Only X Blue and Silver are flexible tips)
Available tip sizes and lengths: #202 (18mm & 21mm), #252 (18mm & 21mm)
Key Features of Ultra X Ultrasonic Irrigation Device
- 45 kHz high ultrasonic frequency for efficient canal activation
- Dual power modes with clear LED working indicator
- Ergonomic contra-angle handpiece design for comfortable operation
- Lightweight body to reduce hand fatigue during long treatments
- Built-in 1500mAh large capacity lithium battery
- Cordless portable design with direct plug & play standby mode
- Supports multiple application-matched ultrasonic tips
Long-Lasting Rechargeable Battery
Equipped with 1500mAh lithium battery with real-time battery level indicator. It supports up to 4.5 hours of continuous clinical operation. If power runs low, you can use the direct plug & play mode without interruption during treatment.
Working Principle & Clinical Indications
1. Core Ultrasonic Effects
Cavitation Effect: Mass tiny gas bubbles form, expand and burst inside irrigation liquid, generating strong impact force for deep canal cleaning.
Acoustic Streaming: Ultrasonic waves create directional liquid flow and acoustic turbulence to push irrigants deep into complex root canal structures.
2. Clinical Indications
- Complete smear layer removal and open blocked dentinal tubules
- Eliminate residual dentin chips and soft tissue debris
- Disrupt biofilm and reduce bacterial load inside root canals
- Clean hard-to-reach complex canal anatomy: isthmuses, fins, lateral canals, apical ramifications; eliminate vapour lock
3. Standard Clinical Operation Protocol
- Shape and finish root canal to the target size with endo files first
- Fill the canal with disinfectant irrigation solution; never run the device without liquid
- Select matching size/length tip that fits passively, keep tip 2–3mm away from the apex
- Activate liquid with gentle short vertical strokes for 30 seconds; avoid touching apical 2mm and forced wedging
- Replenish irrigation fluid, suction out loose debris, repeat the process 4–5 times
- Dry the canal thoroughly before final obturation
Clinical Tip: Always isolate teeth with rubber dam and wear full personal protective equipment including head light, mask and safety glasses.
