Product Details
Product Specifications (3 Sizes Available)
| Parameter Item | NanoPix 1 | NanoPix 1.5 | NanoPix 2 |
|---|---|---|---|
| Detector Technology | APS CMOS | APS CMOS | APS CMOS |
| Scintillator Material | CsI | CsI | CsI |
| Pixel Matrix | 1000*1500 | 1200*1650 | 1300*1800 |
| Theoretical Resolution | 25lp/mm | 25lp/mm | 25lp/mm |
| Active Imaging Area (mm) | 20*30 | 24*33 | 26*36 |
| Mechanical Outer Size (mm) | 25.4*36.8*4.5 | 43.5*29.2*4.5 | 30.4*41.9*4.5 |
| AD Conversion Bit Depth | 16 bit | 16 bit | 16 bit |
| Data Transmission Interface | USB 2.0 | USB 2.0 | USB 2.0 |
| Waterproof Protection Grade | IP68 | IP68 | IP68 |
4 Simple Steps to Capture Images & Generate Reports
Step 1: Select Patient File
Step 2: Intraoral Image Acquisition
Step 3: Image Preview & Adjustment
Step 4: Export Diagnostic Report
Official Operation Training Video Resources
Key Advantages of NanoPix Digital X-Ray Sensor
- High Definition Imaging: 25lp/mm resolution with CsI scintillator, clear root canal & cavity details for accurate diagnosis

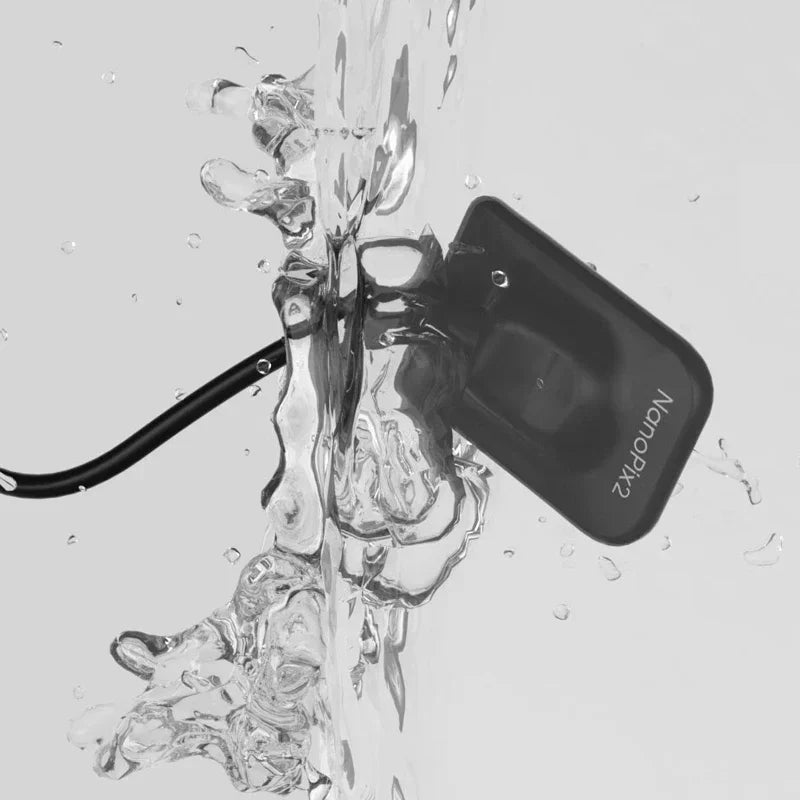

- Full IP68 Waterproof: Disinfectable directly, resist saliva & dental cleaning liquid, long service life
- 3 Size Options: Fit small kids, teen and adult full-mouth intraoral shooting demands
- 16-bit High Dynamic Range: Balanced exposure for both dense enamel & thin periodontal tissue
- Plug & Play USB2.0 Connection: Stable data transmission, low delay image output

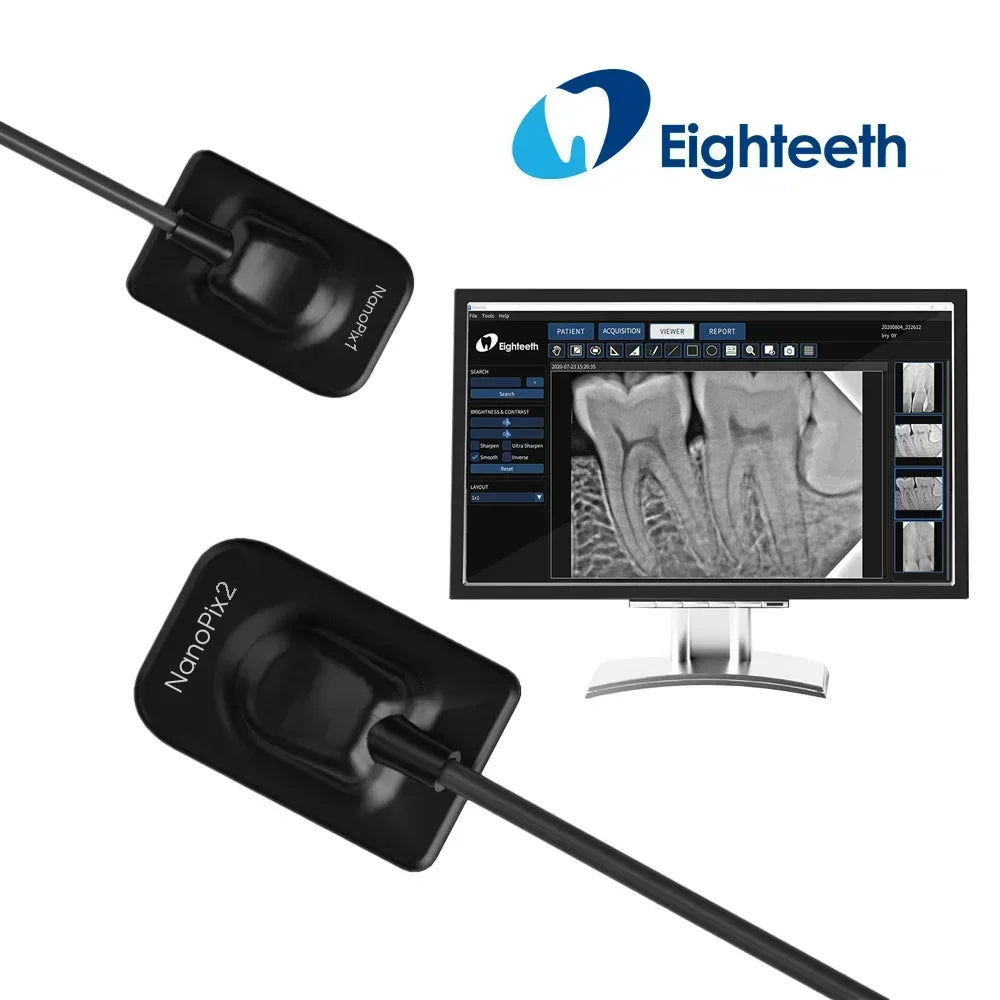

- Complete Supporting Software: Patient archive, image editing, one-click diagnostic report export
- Full Technical Support: Official training videos & operation guide for all dental staff

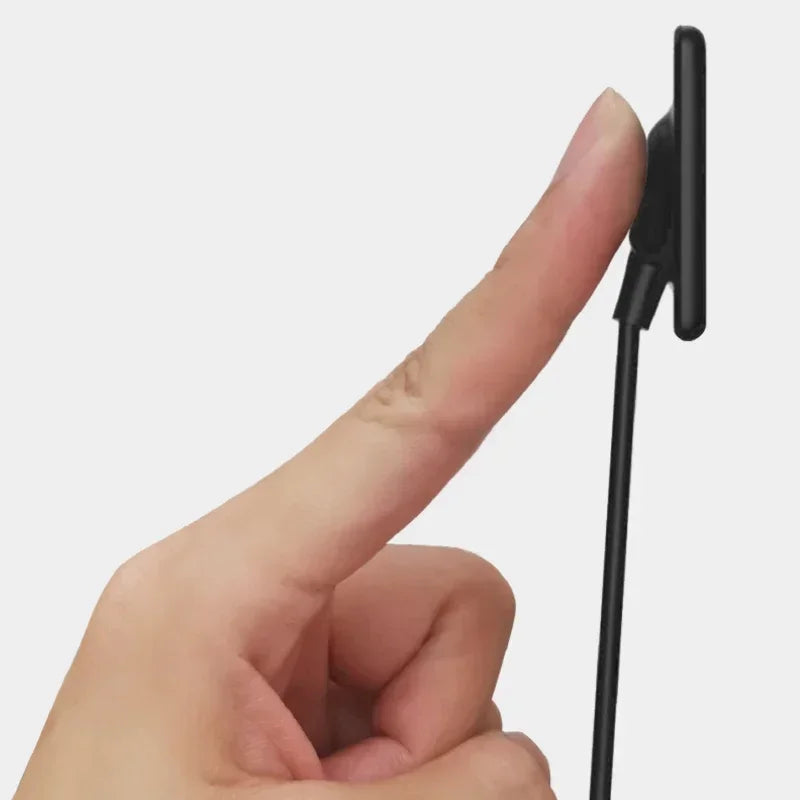

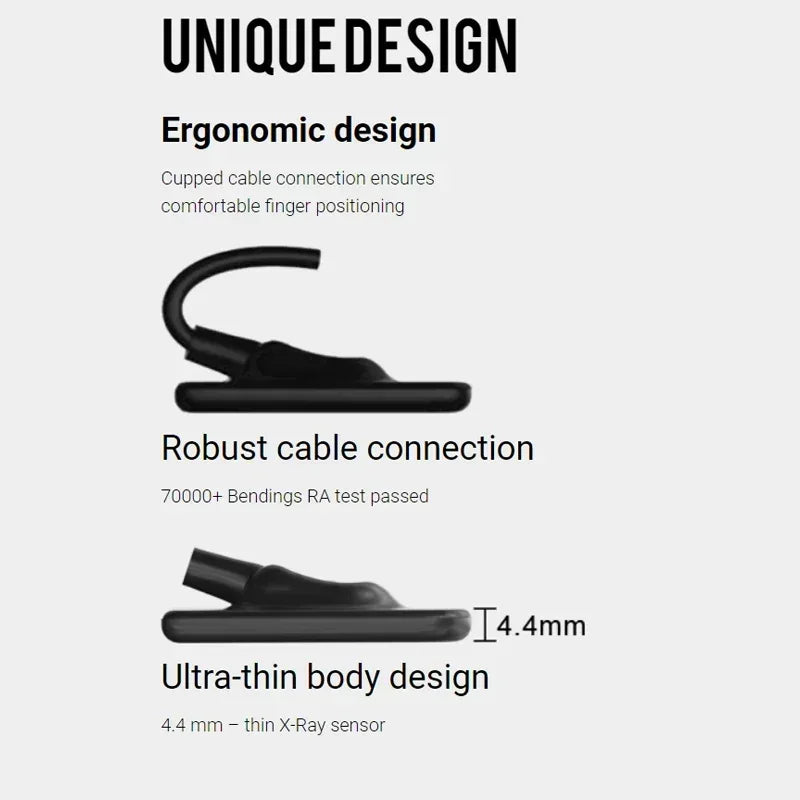

- Light Thin Body (4.5mm Thickness): Comfortable intraoral placement, reduce patient gag reflex
Wide Clinical Application Scenarios
- Root Canal Treatment (Endodontics) Apex Location & Root Canal Evaluation
- Dental Caries / Cavity Examination & Restorative Treatment
- Periodontal Disease Inspection & Bone Loss Assessment
- Dental Implant Preoperative Bone Condition Scanning
- Pediatric Dental Routine Intraoral X-ray Shooting
- Orthodontic Pre-treatment & Follow-up Imaging Check
