Product Details

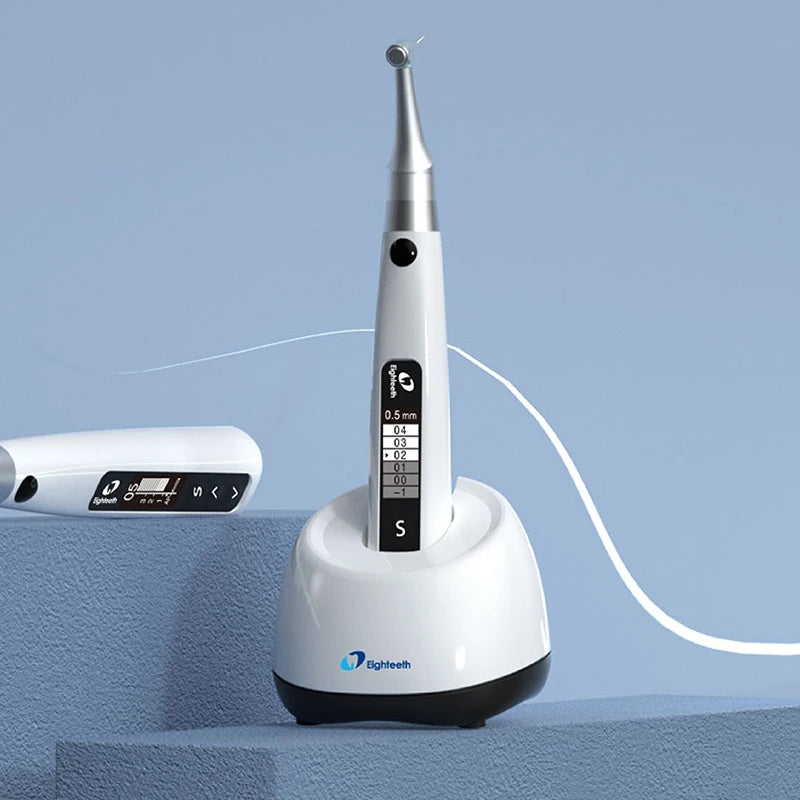

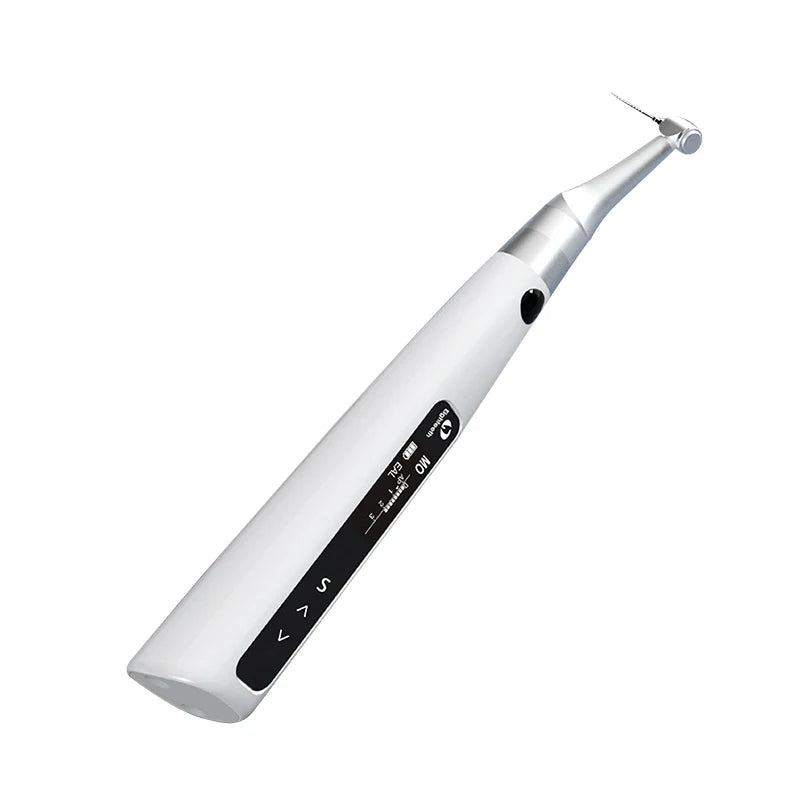

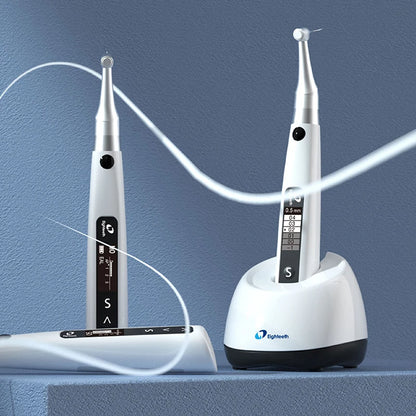

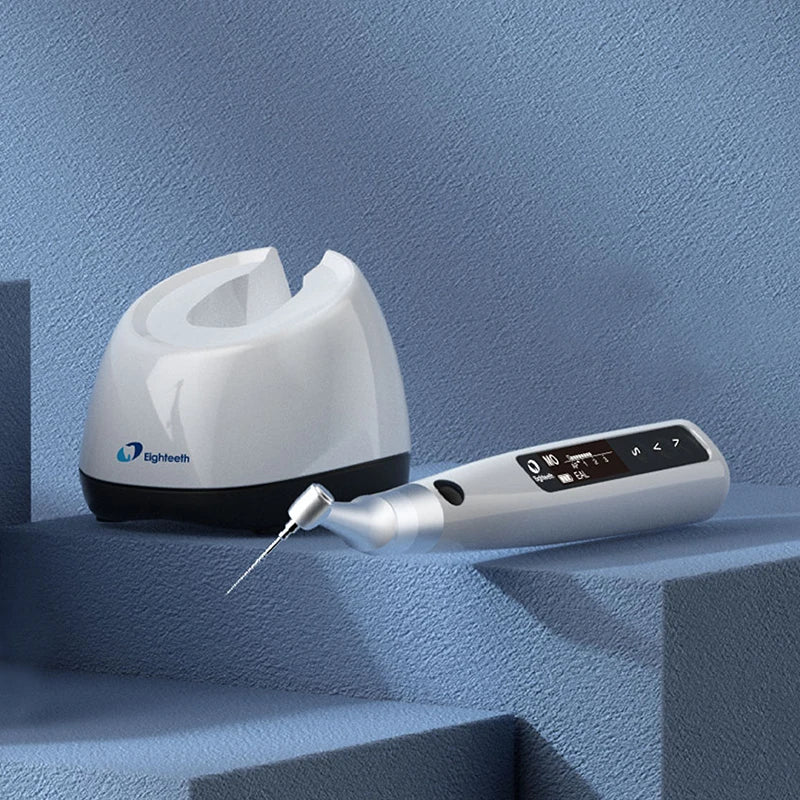

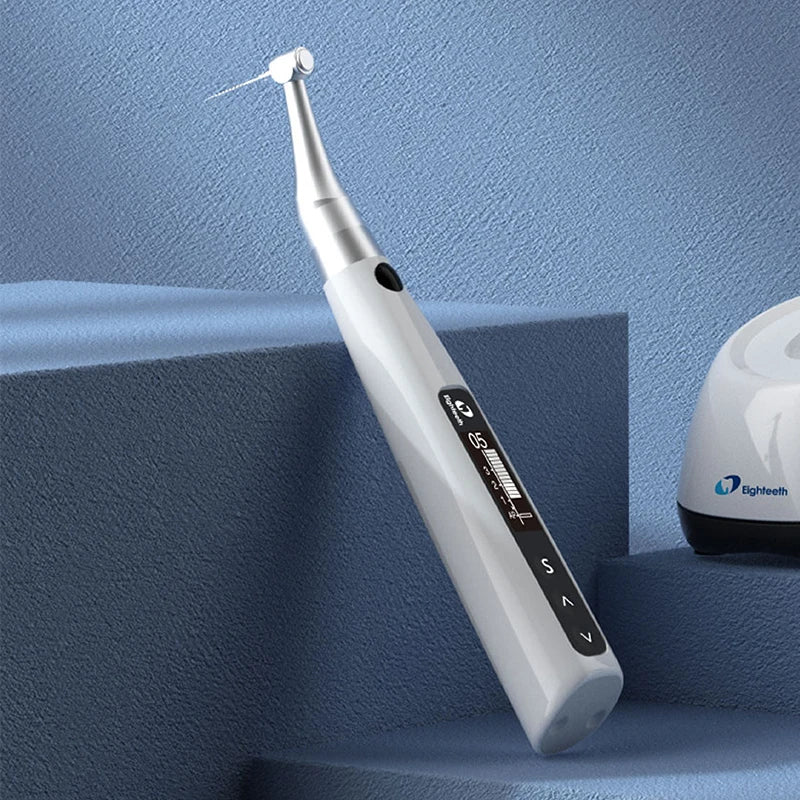

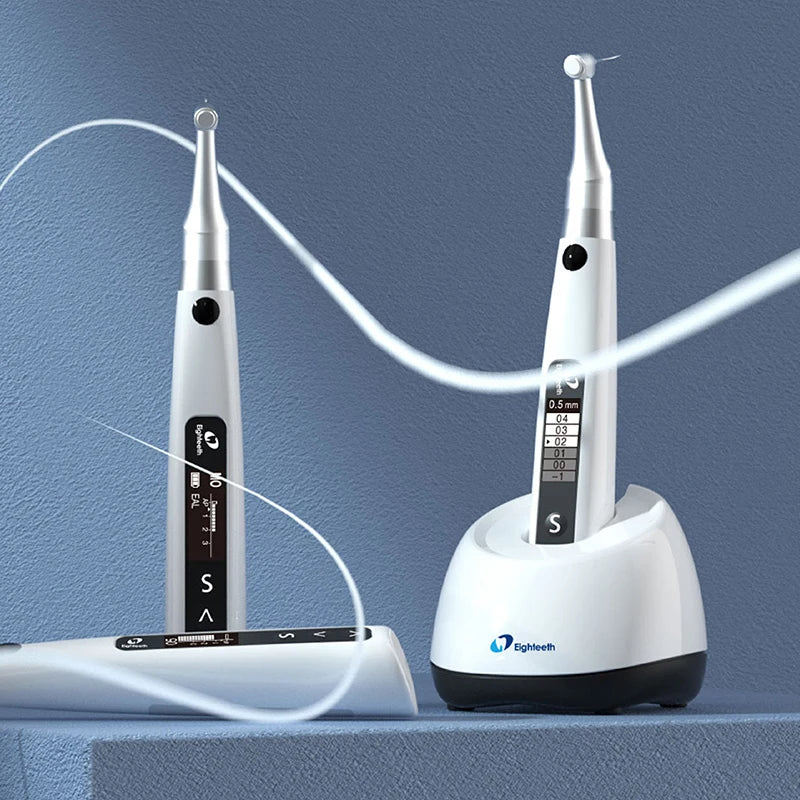

E-CONNECT S All-In-One Endo Motor with Built-In Apex Locator
Everything you want for professional root canal treatment — E-CONNECT S integrates a powerful brushless motor and high-precision apex locator in one compact device, ideal for daily clinical endodontic operations.
Technical Specifications
Full Parameter List
- Rotational Speed Range: 120 - 1000 rpm
- Torque Range: 0.5 - 4.0 Ncm
- Memory Programs: 10 preset modes (M1 to M10)
- Battery Capacity: 1500 mAh lithium battery
Built-In Apex Locator & Premium Contra Angle Handpiece
- Integrated Apex Locator: Works together with the motor, or can be used as a standalone apex locator with manual measuring wire
- Miniature Head 1:1 contra angle, one-piece body design, 360° adjustable contra angle
- Brushless Motor: Stable, reliable, high efficiency and longer service life
- Pre-set File Settings: Quick switch between different file systems without memorizing torque and speed parameters
4 Professional Working Modes with Adaptive Torque Control
Supports full functional modes to match all root canal shaping requirements:
- FWD - Forward Rotation
- REV - Reverse Rotation
- REC - Reciprocation Movement
- ATC - Adaptive Torque Control
The ATC system automatically adjusts operation: slow down when torque reaches preset limit, protect instruments and avoid file separation during canal preparation.
Intelligent Apical Control System
Multi-frequency apex locator with ultra-high accuracy and zoom-in apical flash bar, supporting two working modes:
-
Integrated Motor Mode
- Auto Start & Stop: Motor runs automatically when files enter root canal, stops after withdrawal
- Apical Reverse: Customizable reverse rotation when reaching preset apical point
- Apical Slow Down: Reduce speed near apical area to protect cemento-dentinal junction and prevent file breakage
- Stand-Alone Apex Locator Mode: Independent manual canal length measurement for precise working length confirmation
Humanized Hardware & Reliable Hardware
- Torque Calibration Function: Guarantee accurate and stable torque output for clinical safety
- Ambidextrous Rotatable OLED Digital Display: Rotate screen freely for left-handed or right-handed dentists
- 1500mAh Heavy-Duty Lithium Battery: Long-lasting power for full-day clinical use
