Product Details

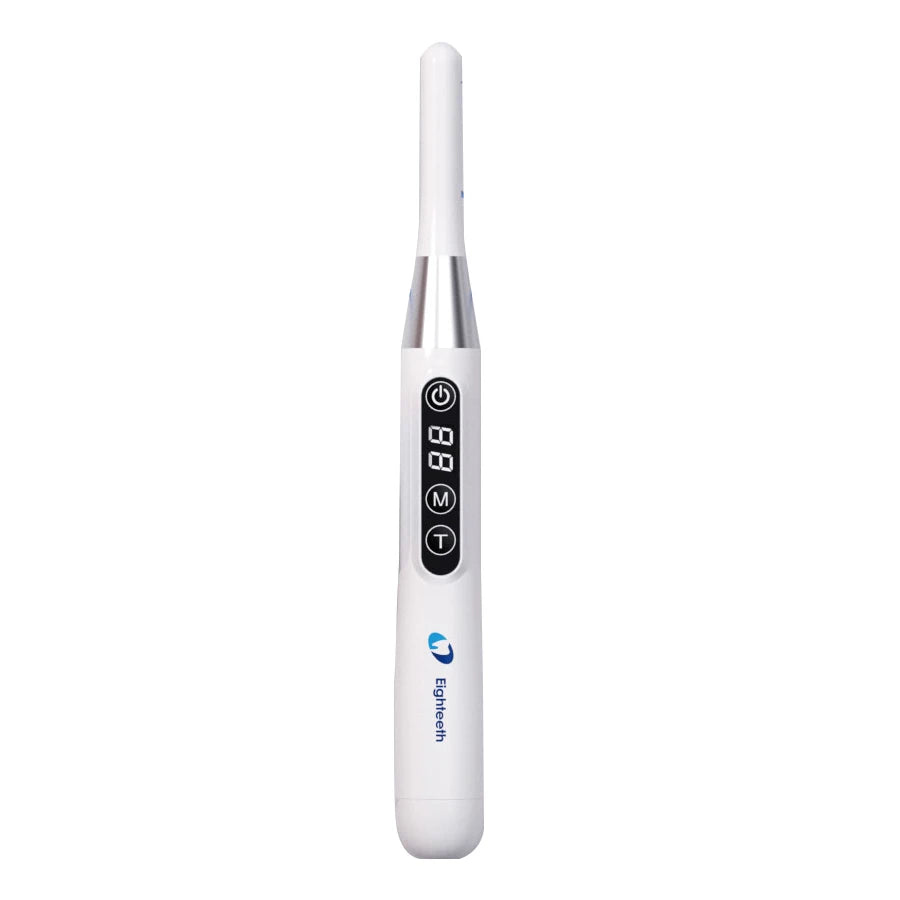

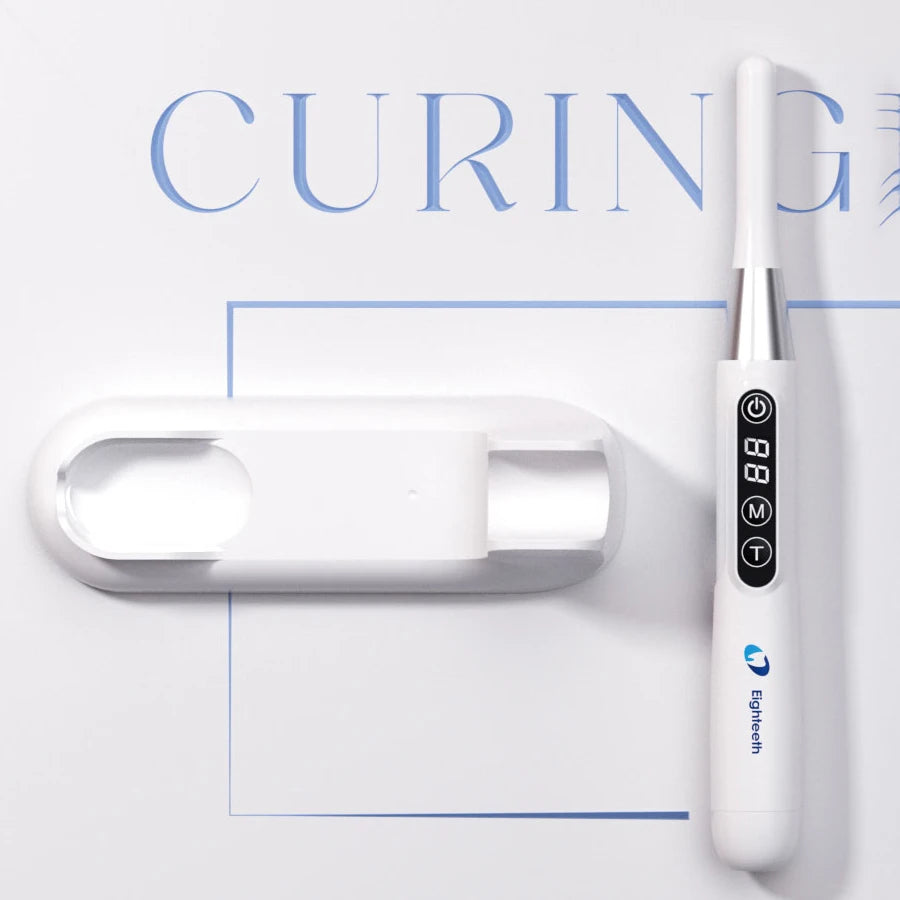

CURINGPEN-E LED DENTAL CURING LIGHT
This Light, So Bright!
5 Professional Working Modes
P1 Normal Mode
- Light Intensity: 1200mW/cm²
- Time Setting: 5s, 10s, 15s, 20s, 25s, 30s, 35s, 40s
P2 High Mode
- Light Intensity: 2000mW/cm²
- Time Setting: 1s, 3s, 5s, 10s
P3 Ultra Mode
- Light Intensity: 3000mW/cm²
- Time Setting: 1s, 3s, 5s

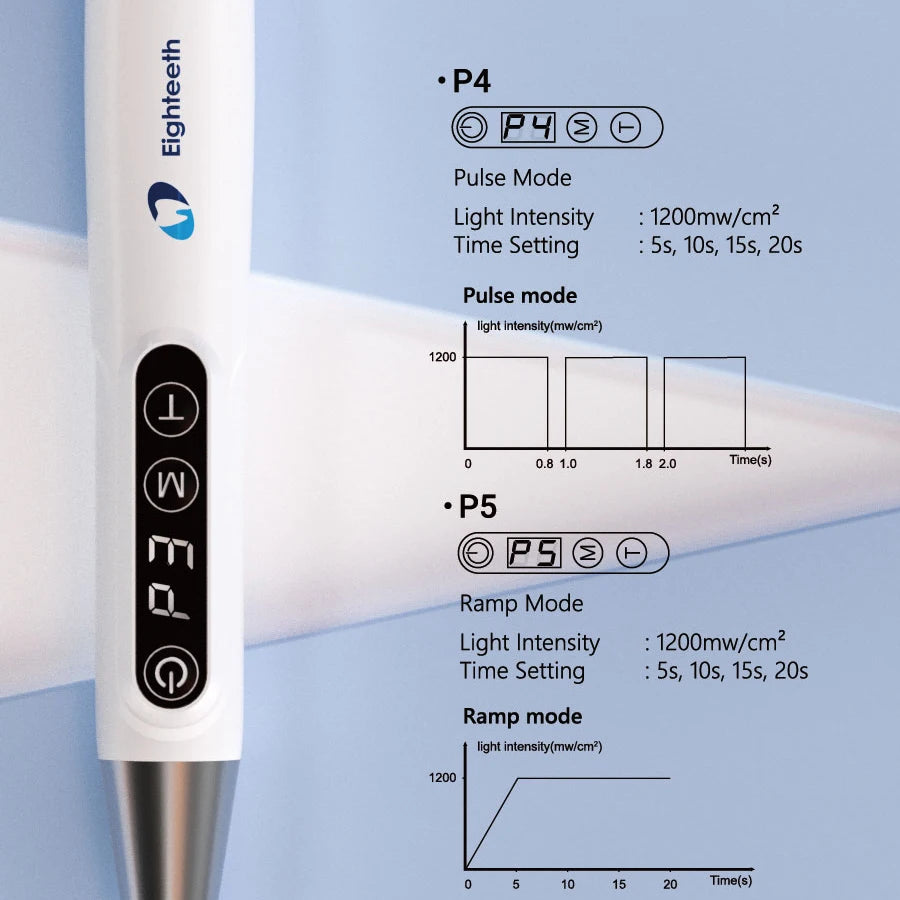

P4 Pulse Mode
- Light Intensity: 1200mW/cm²
- Time Setting: 5s, 10s, 15s, 20s
- Stable intermittent pulse output for gentle curing
P5 Ramp Mode
- Light Intensity: 1200mW/cm²
- Time Setting: 5s, 10s, 15s, 20s
- Gradually rising light intensity to reduce resin shrinkage stress
Core Product Advantages
1. 360° Rotatable Head
Easy to illuminate various treatment areas, flexible access for all tooth positions.
2. Small Light Head
Effortlessly reach posterior molars, greatly improving patient comfort and treatment experience.
3. Special Lens Design
Exclusive lens structure forms highly concentrated uniform light beam for even full-area curing.
4. Broad Spectral Range (380 nm - 515 nm)
Most dental resins use camphorquinone (CQ) initiators, while some manufacturers adopt TPO to reduce yellow discoloration caused by CQ. CuringPen-E covers full spectrum, effectively cures all types of composite resins.
5. Ultra Power Output
Max light intensity boosted up to 3000mW/cm². High-power light penetrates deeper resin layers, completes curing faster and more efficiently.
Full Technical Specifications
- Dimension: 19 × 16.5 × 7.5 cm
- Weight: 120 g
- Light source head size: Φ17mm
- Light output lens size: Φ8mm
- Power Supply: 3000 mAh lithium battery, 3 sec full power output
- Maximum Light Intensity: 3000 mW/cm²
- Spectral Range: 380 - 515 nm
Why Choose CuringPen-E Dental Light?
The CuringPen-E is an all-in-one wireless LED curing light designed for modern restorative dentistry. Equipped with multi-mode adjustable power, full-spectrum light output and ergonomic mini rotary head, it meets all daily curing demands for composite filling, bonding, orthodontic bracket adhesion and prosthetic repair.
Lightweight 120g body reduces hand fatigue for long clinical operations, large-capacity built-in battery supports hundreds of curing cycles per single charge. Suitable for dental clinics, dental hospitals and dental schools worldwide.
