Product Details

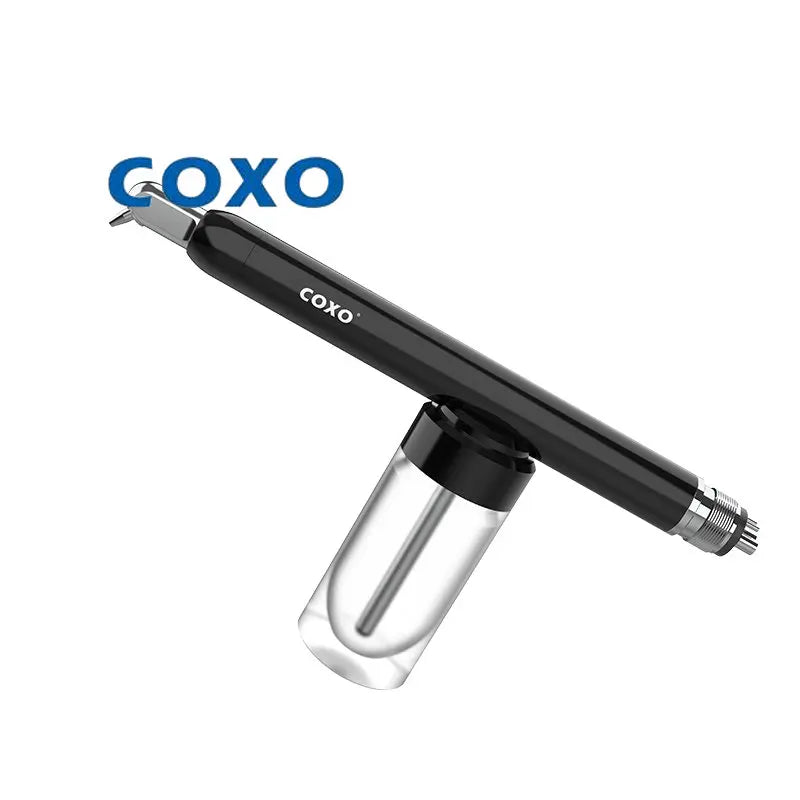

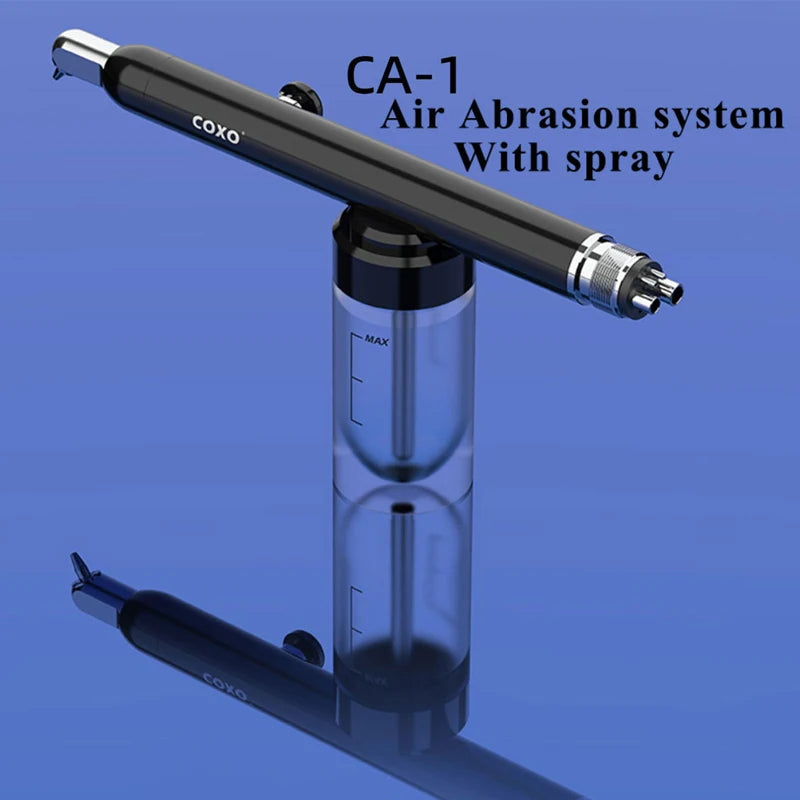

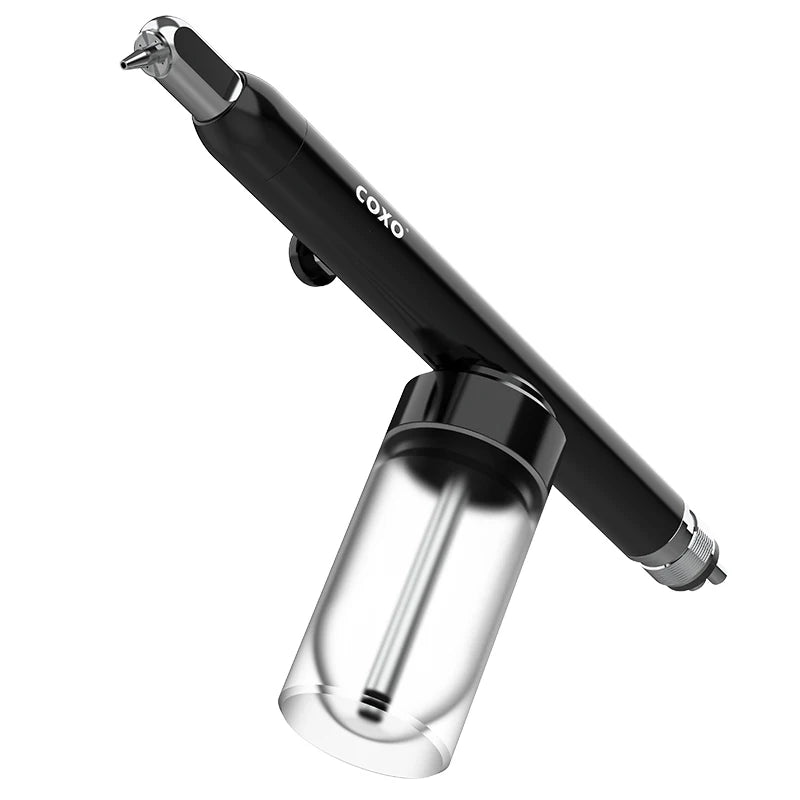

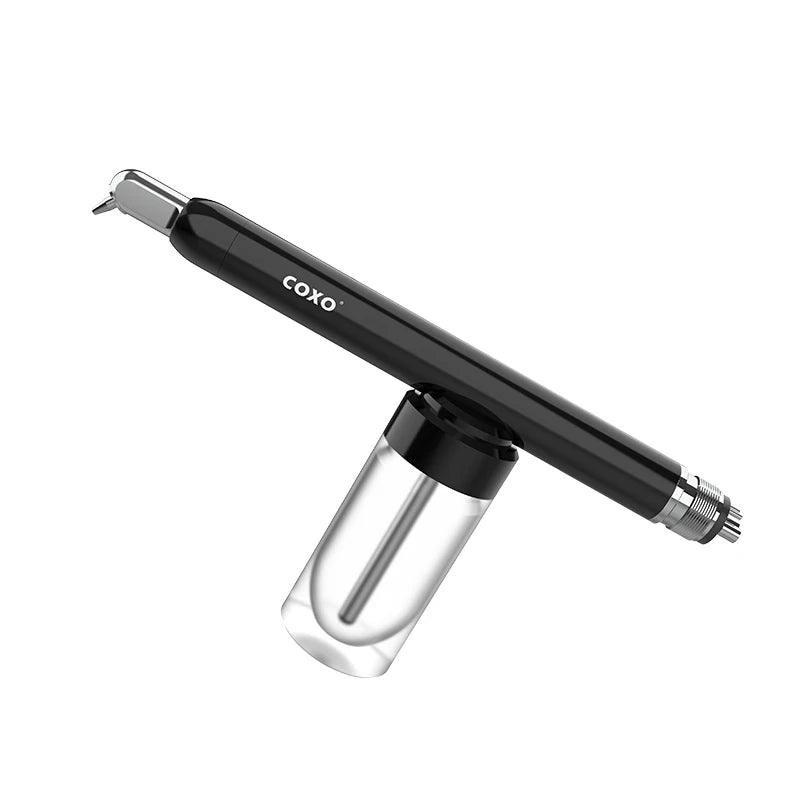

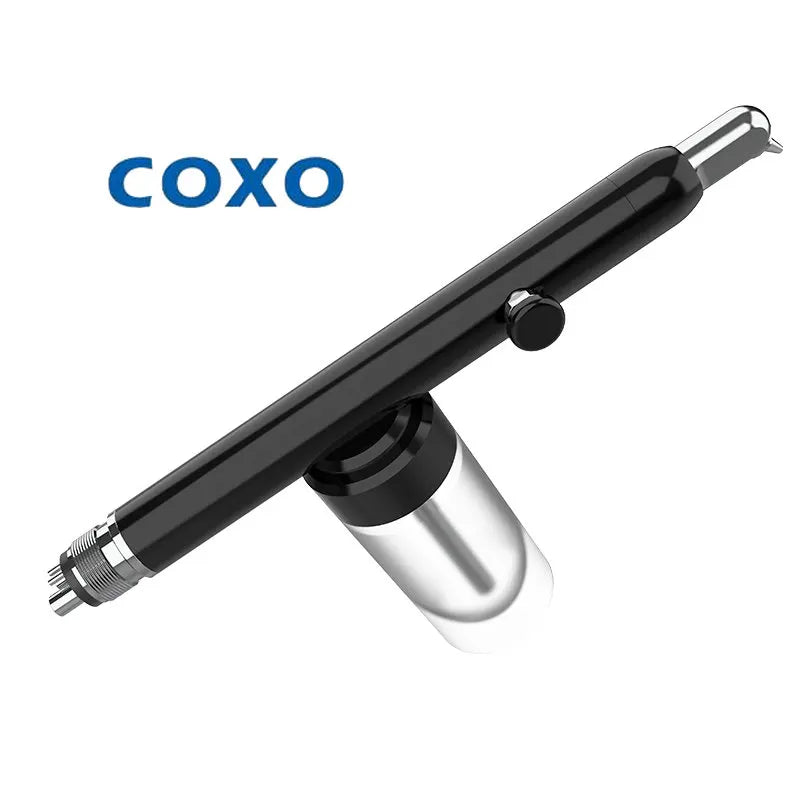

CA-1 Air Abrasion System with Spray
Professional Dental Air Polisher Sandblasting Handpiece, Dry & Wet Dual-Purpose Design
Product Core Strengths
Dry and Wet Dual-Use Design
This air abrasion unit supports both dry sandblasting and wet spraying modes. Delivers outstanding sandblasting performance while effectively preventing sand powder dampening during clinical operations.

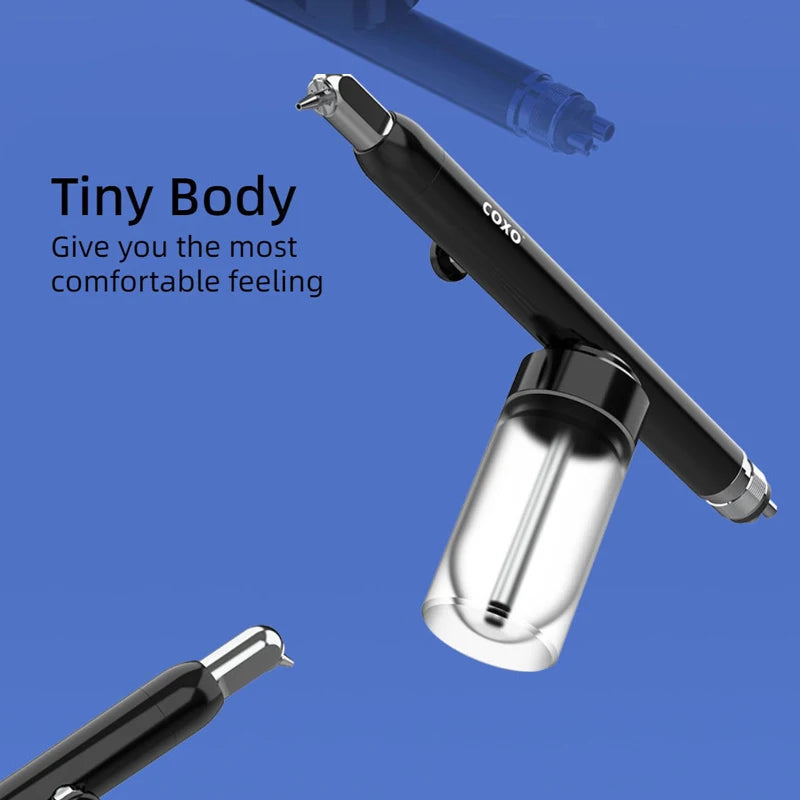

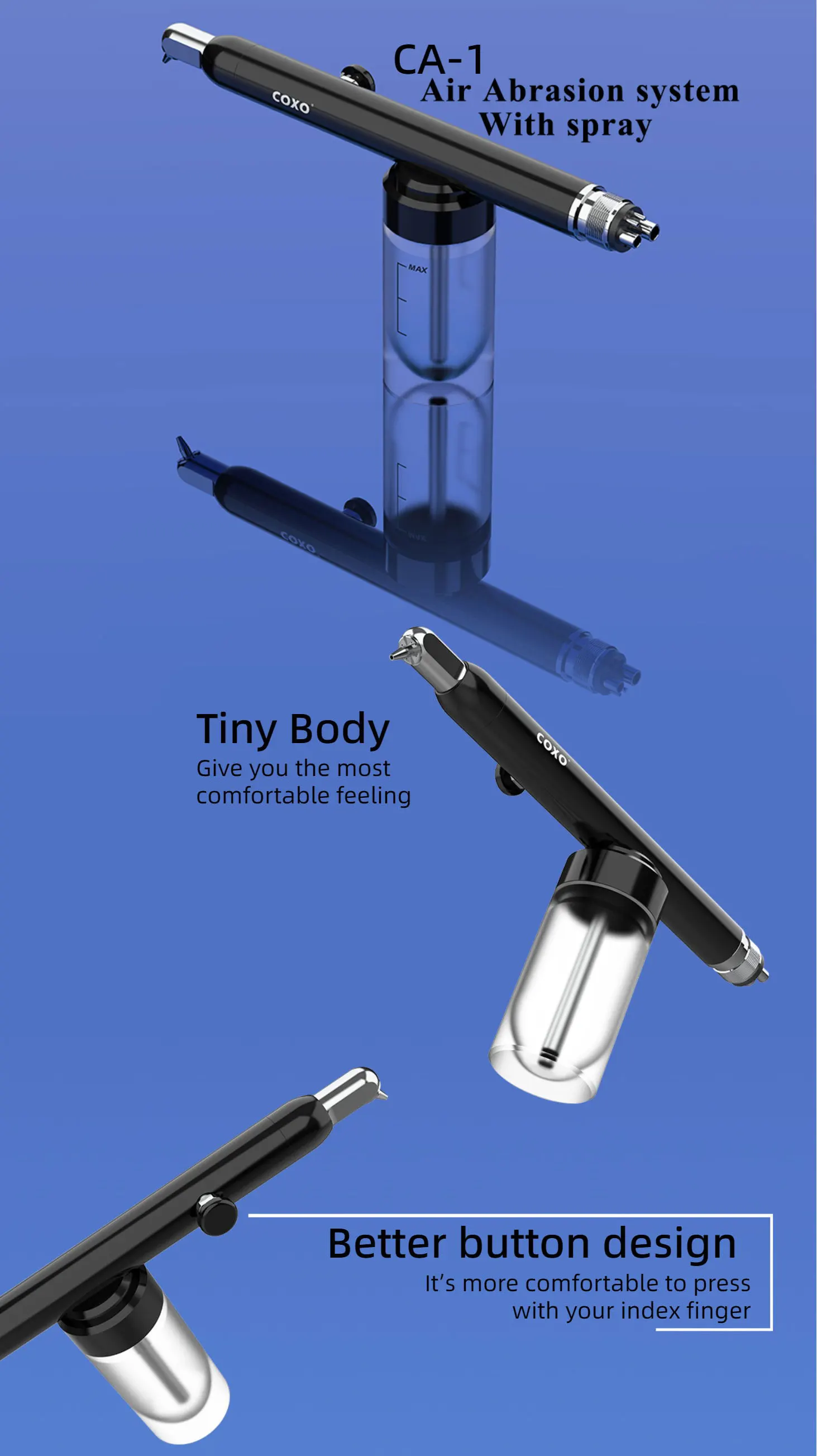

Ergonomic Tiny Body & Optimized Finger Button
Ultra-small lightweight handpiece body brings all-day comfortable holding experience. The specially upgraded index finger button reduces pressing fatigue for long-time dental treatments.

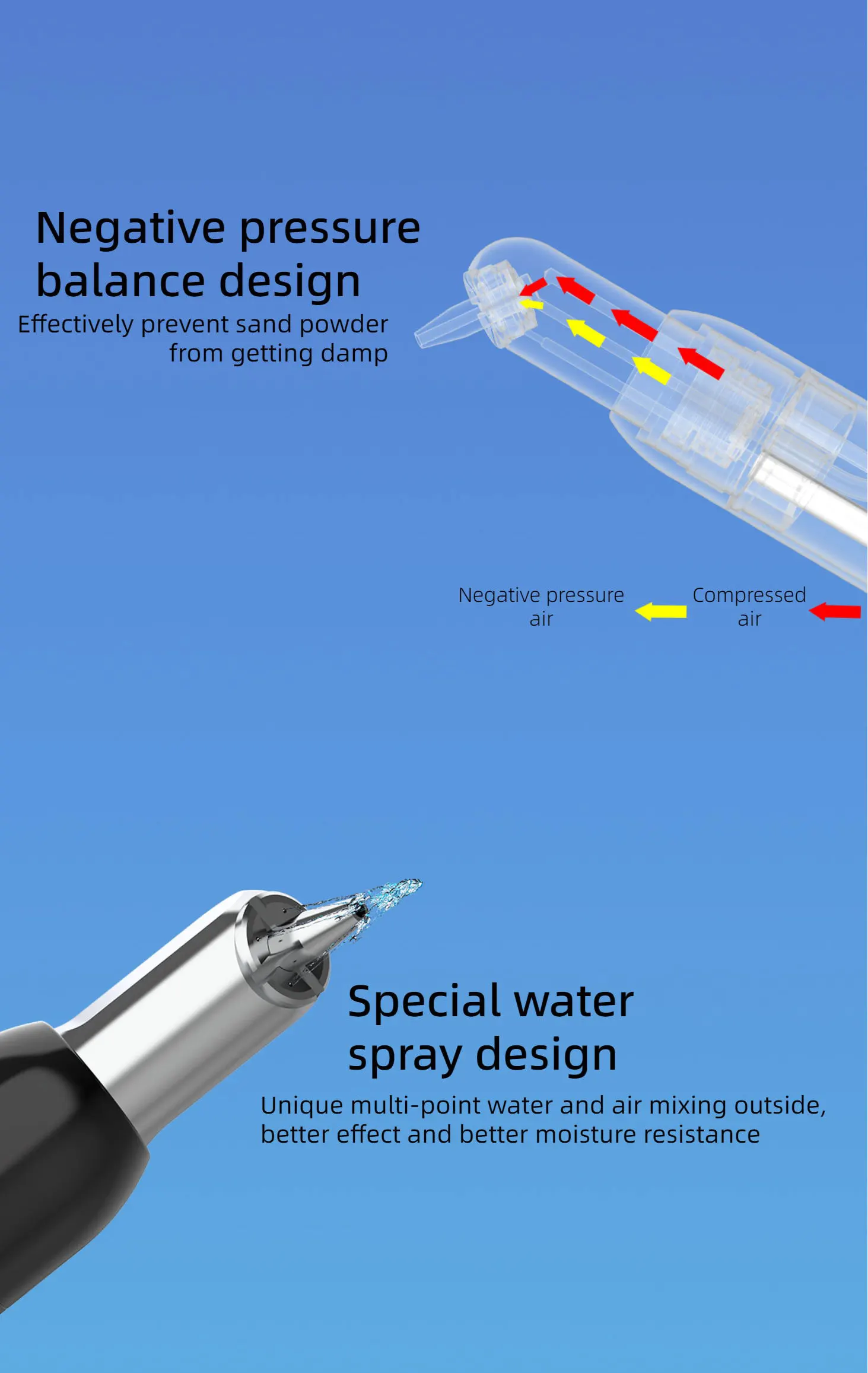

Negative Pressure Balance Anti-Damp Structure
Built-in negative pressure balance mechanism stops sand powder from absorbing moisture, avoids blockage and unstable sand output during clinical sandblasting work.
Unique Multi-Point External Water & Air Mixing Spray
Exclusive external multi-point water-air mixing technology ensures uniform atomization, enhances sandblasting cleaning effect and further improves moisture-proof performance.

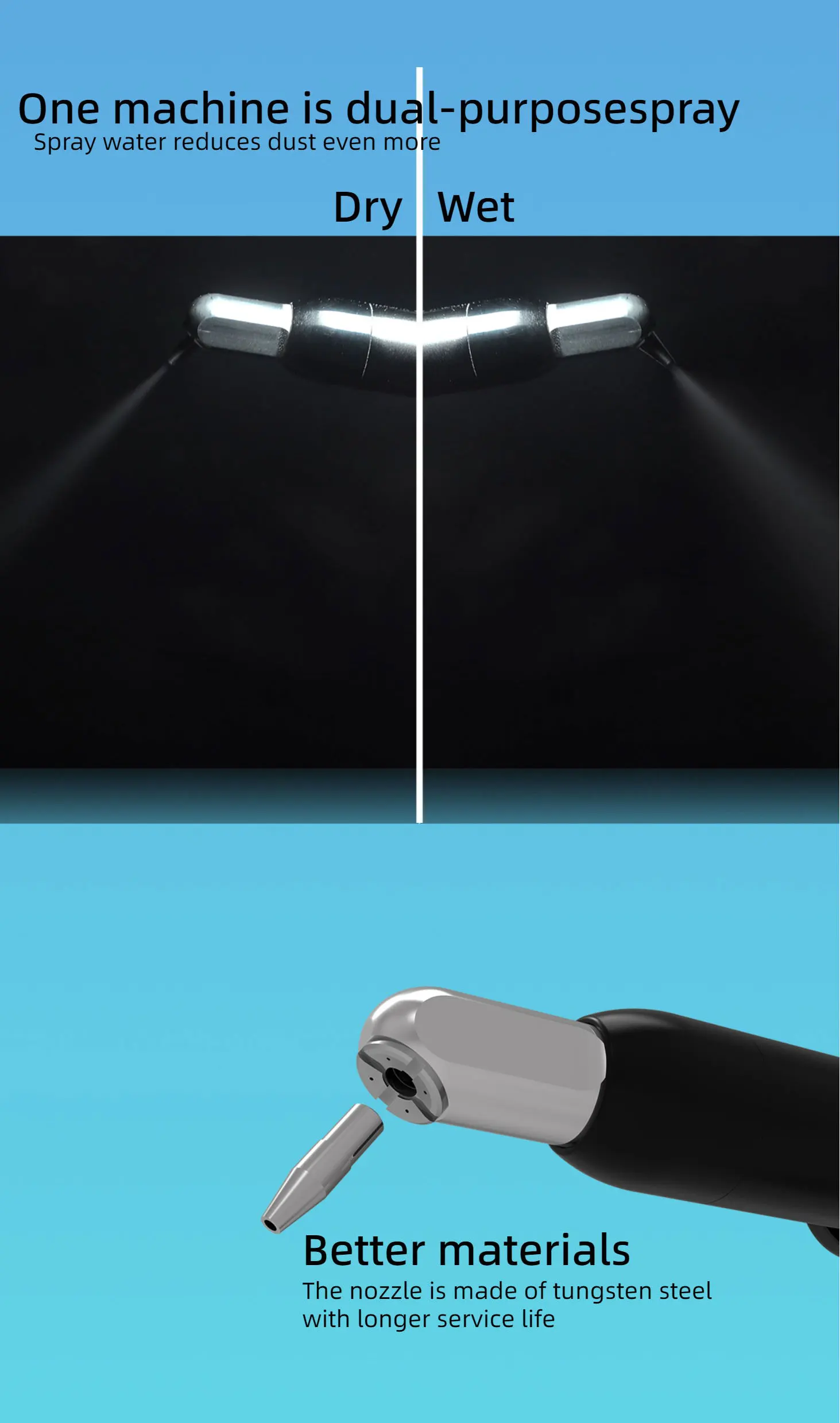

One Machine Dual-Purpose with Vacuum Negative Pressure Suction
Equipped with vacuum negative pressure suction function for sandblasting, independent water supply channel supports seamless switch between dry and wet working modes without tool replacement.

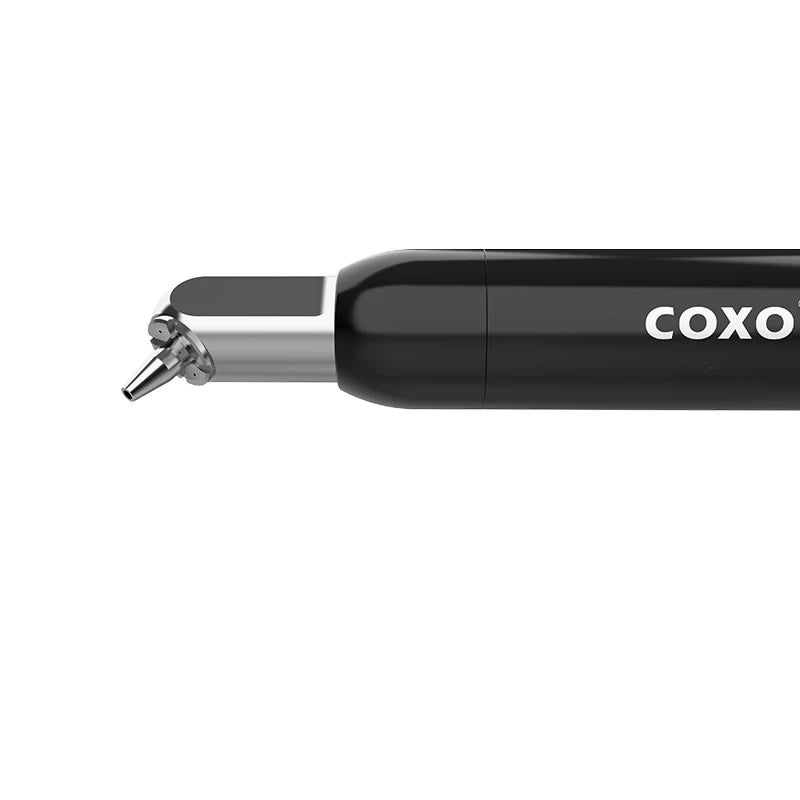

Long Service Life Tungsten Carbide Nozzle
The working nozzle is made of high-hardness tungsten carbide material, superior wear resistance, greatly extend service life compared to ordinary metal nozzles.

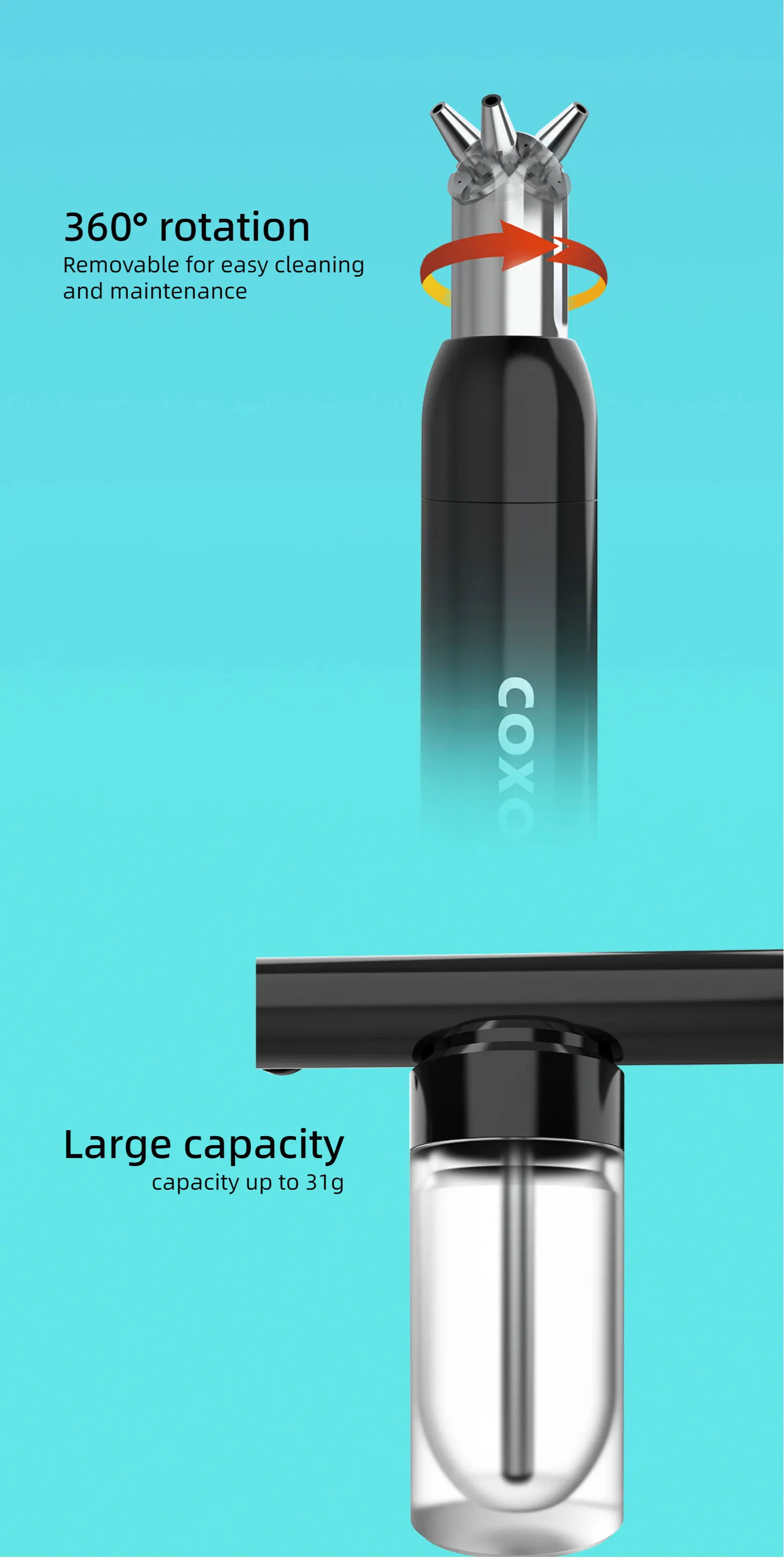

360° Rotatable & Detachable Nozzle Holder
Nozzle holder supports full 360-degree rotation for flexible operation in narrow oral cavity areas. Detachable design for easy daily disassembly, cleaning and maintenance.
31g Large Capacity Sand Tank
Max 31g sand powder storage capacity, reduce frequent refilling during continuous clinical treatment, improve dental operation efficiency.
Technical Specifications
| Recommended Working Air Pressure | 0.4MPa |
|---|---|
| Working Air Pressure Range | 0.3~0.6MPa |
| Nozzle Diameter | 1.0mm |
| Input Water Pressure | 0.2MPa |
| Sandblasting Rate | ≤9g/min |
| Water Flow Rate | >20ml/min |
| Effective Sandblasting Distance | 2mm ~ 10mm |
| Sand Powder Tank Capacity | 31g |
| Nozzle Material | Tungsten Carbide |
| Nozzle Rotation Angle | 360° Full Rotation |
Clinical Application Scenarios
- Porcelain crown bonding & full comprehensive restoration pretreatment
- Porcelain veneer bonding surface preparation
- Maryland bridge bonding pretreatment
- Orthodontic bracket bonding preparation
- Cosmetic resin composite bonding pretreatment
- Old porcelain crown restoration & replacement surface treatment
Important Notice: This device shall only be operated by licensed professional dentists during formal dental clinical treatment.
