Product Details
COXO C-SMART-I PILOT Wireless Endo Motor Integrated with Apex Locator
dental endo motor with apex locator, brushless root canal motor, COXO C-SMART-I PILOT, cordless endo handpiece, LED endo contra angle, touch screen endodontic unit
COXO C-SMART-I PILOT is an all-in-one wireless brushless endodontic motor integrated with built-in apex locator, designed for simultaneous root canal preparation and apical length measurement. It combines 5-inch HD touch control host, Bluetooth wireless handpiece and LED light contra-angle to deliver stable, efficient and safe endodontic treatment for dental clinics worldwide.

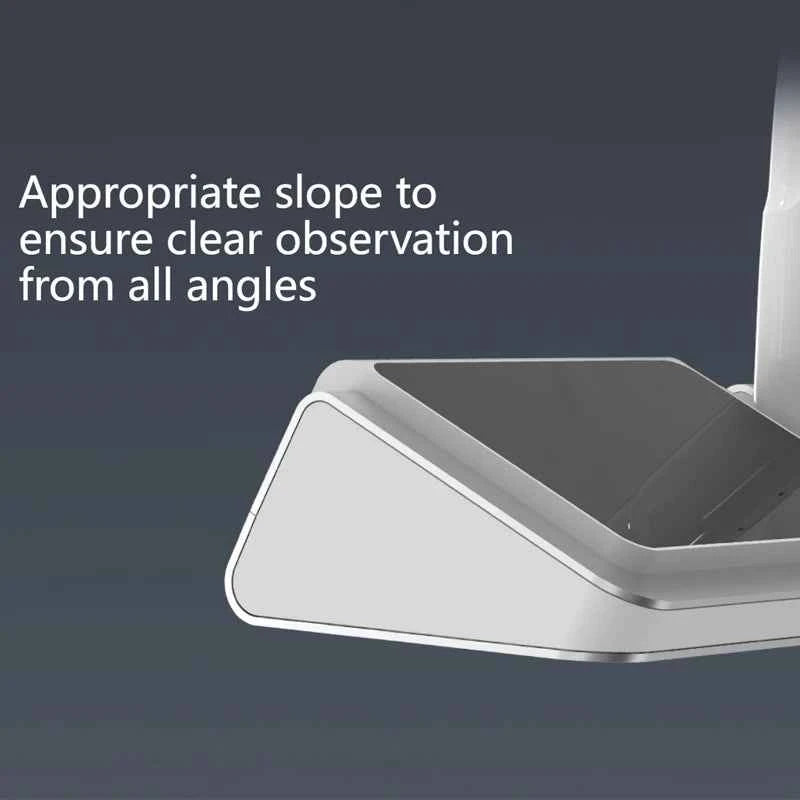

5 Inch Sloped Touch Color LCD Control Host
Sloped large color touch screen offers clear viewing from all operation angles. All mainstream root canal file systems are pre-installed, covering over 200 file parameters for one-click selection without complex manual setup. The system supports storage of 4 independent user profiles with editable treatment notes to meet personalized clinical habits.
True Wireless Bluetooth Handpiece Design
- 10-meter stable Bluetooth connection range, no tangled wires to block operation view
- Independent offline operation: 9 built-in root canal programs run even disconnected from host
- Built-in lithium battery with contactless leak-proof wireless charging dock
- One-touch speed adjustment button on handpiece body for quick parameter tuning during treatment
300° Rotatable LED Integrated Contra Angle
6:1 mini head contra-angle only 10.2mm in height, freely rotates 300° to adapt to all molar and anterior canal angles. Integrated bright LED light eliminates shadow inside root canals. Detachable full insulation structure removes the need for disposable insulation sleeves, while built-in measuring electrode avoids external apex locator wire clips.
Synchronized Preparation & Apex Measurement System
Multi-frequency high-precision apex locating technology realizes real-time apical monitoring while shaping canals. Audio and screen visual alerts remind dentists once the file tip reaches the apical foramen, effectively preventing over-instrumentation and root perforation. Automatic calibration mode ensures consistent accurate speed and torque output every use.
High Performance Silent Brushless Motor Core
- Adjustable rotation speed: 150–1000 RPM; adjustable torque range: 0.6–3.9 N.cm
- Programmable torque trigger actions: auto reverse, auto stop or slow down when torque threshold hit
- Low heat generation, long service life and ultra-quiet running during long clinical procedures
- Three intelligent treatment modes: Simple Root Canal, Normal Root Canal, Complex Root Canal
Full Technical Specifications
| Input Power Adapter | AC 100-240V 50/60Hz, Output DC10V 1.5A |
|---|---|
| Main Unit Battery | Built-in DC7.4V Lithium Ion Battery |
| Wireless Handpiece Battery | DC3.7V Lithium Ion Battery |
| Speed Range | 150–1000 RPM |
| Torque Range | 0.6–3.9 N.cm |
| Contra Angle Gear Ratio | 6:1 Mini Head, 300° Free Rotation |
| Wireless Connection | Bluetooth, Max 10m Transmission Distance |
| Charging Method | Contactless Wireless Charging for Handpiece & Host |
| Screen Size | 5 Inch Color Touch LCD Sloped Display |
Core Clinical Advantages
- 2-in-1 integration: endo shaping motor + high precision apex locator, saves separate device cost
- Cordless handpiece eliminates cable interference for flexible intraoral operation
- Preloaded hundreds of mainstream endo file systems, ready to use without parameter setup
- Integrated LED light and full insulated contra angle lower consumable cost for clinics
- Global universal voltage adapter compatible for dental practices across all regions
- Over-torque protection system minimizes risk of file separation inside root canals
